THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

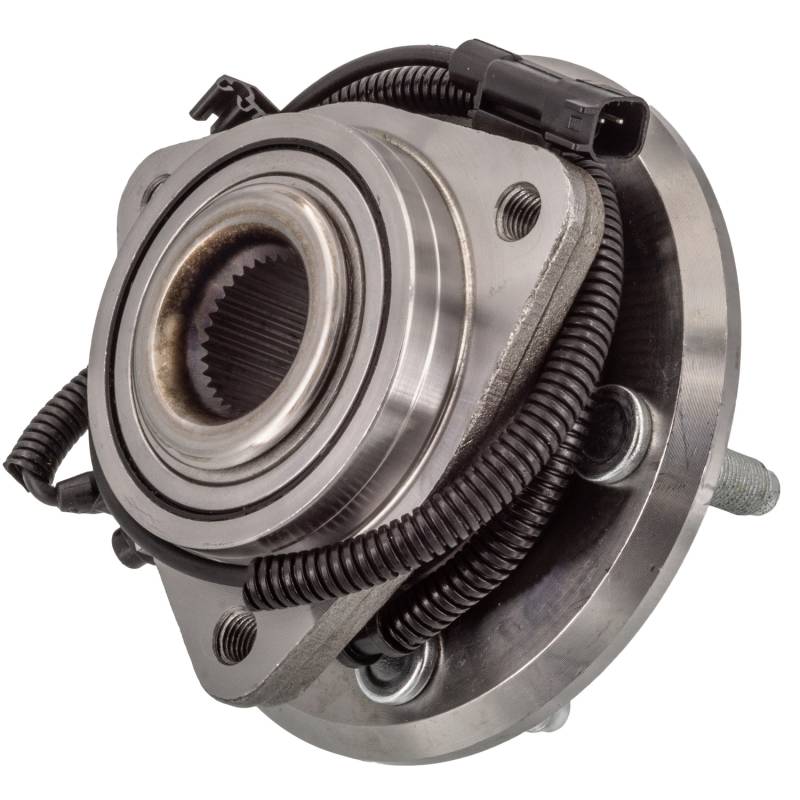

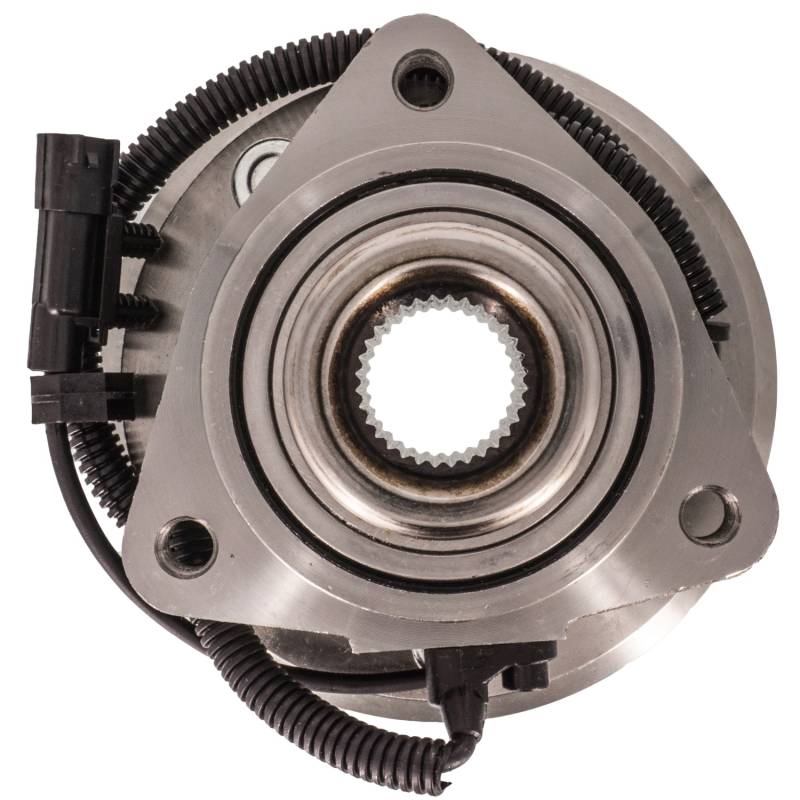

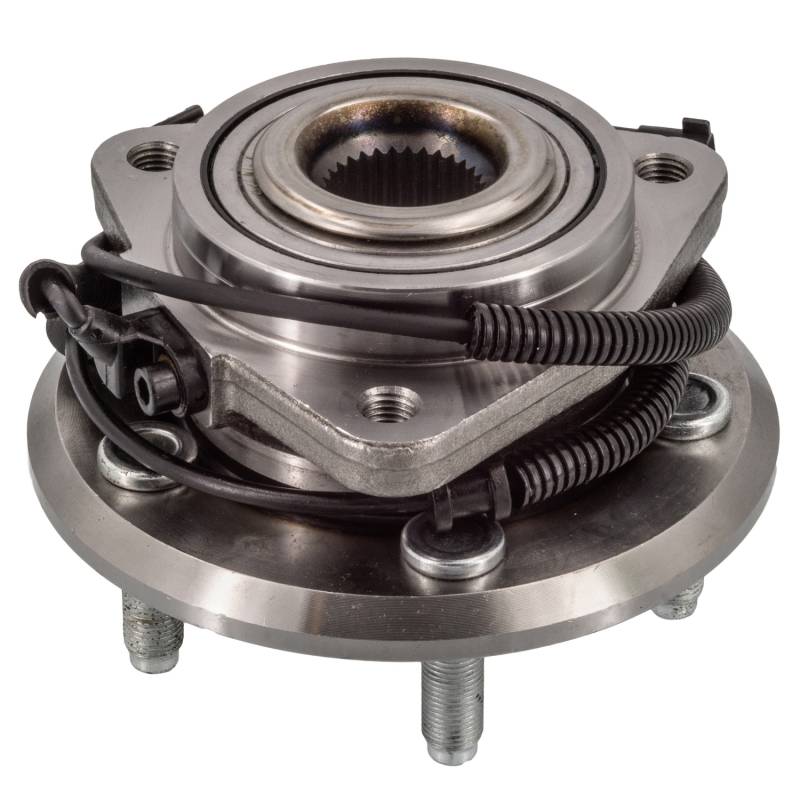

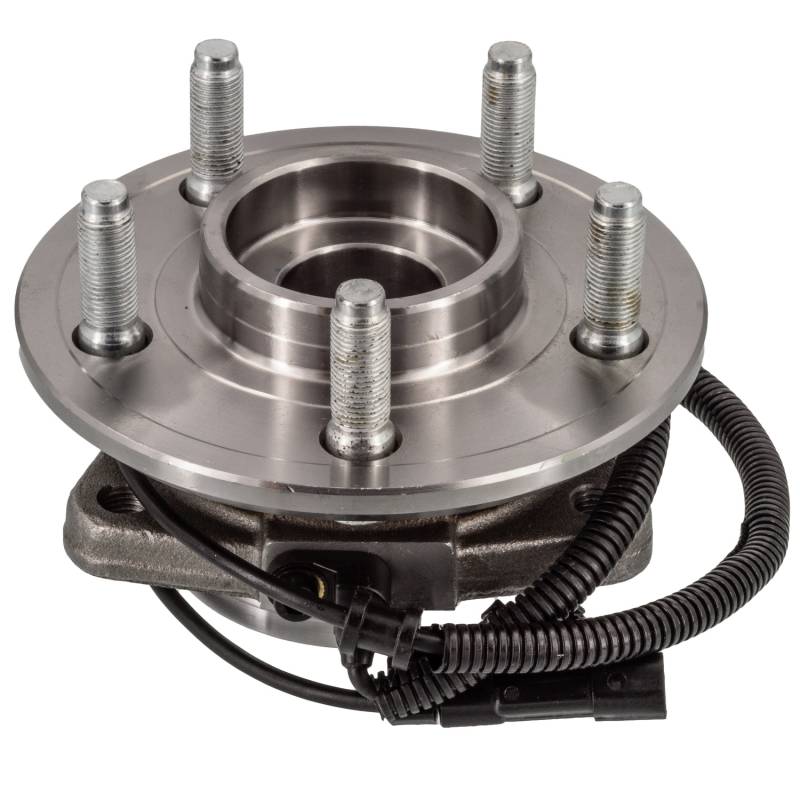

PRODUCT TYPE: HUB ASSEMBLY

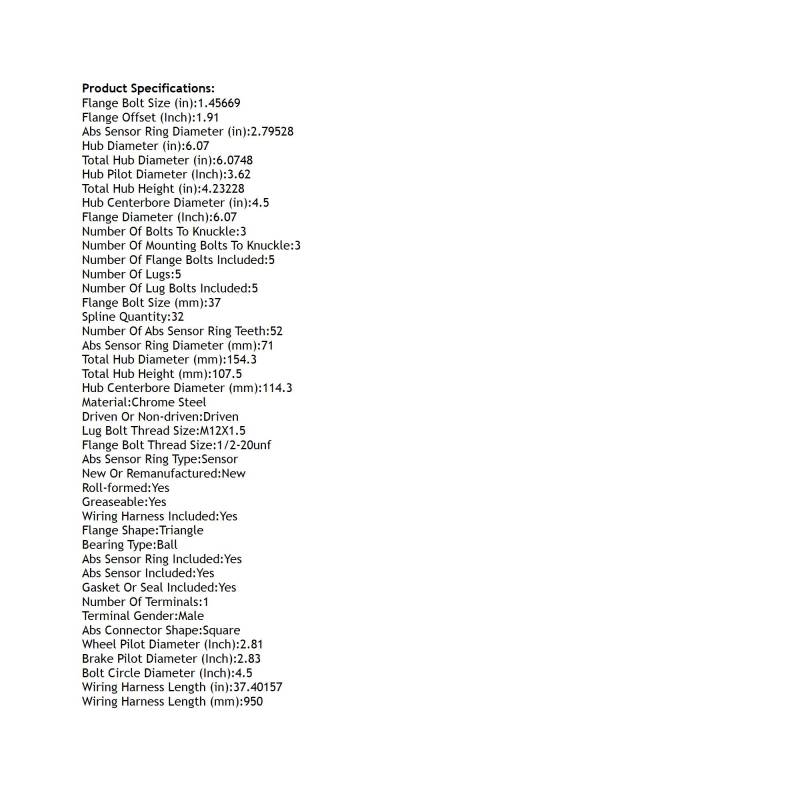

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.79528
ABS SENSOR RING DIAMETER (MM): 71
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.83
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.45669
FLANGE BOLT SIZE (MM): 37
FLANGE BOLT THREAD SIZE: 1/2-20UNF
FLANGE DIAMETER (INCH): 6.07
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: TRIANGLE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 6.07
HUB PILOT DIAMETER (INCH): 3.62
LUG BOLT THREAD SIZE: M12X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 52
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.0748
TOTAL HUB DIAMETER (MM): 154.3
TOTAL HUB HEIGHT (IN): 4.23228
TOTAL HUB HEIGHT (MM): 107.5
WHEEL PILOT DIAMETER (INCH): 2.81
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 37.40157
WIRING HARNESS LENGTH (MM): 950
REPLACES:
AUTOPART INTERNATIONAL: 1411-258460
BCA: WE61125
CENTRIC PARTS: 40258002
FAG US: 102222
GSP: 124270
MEVOTECH: H513270
MOOG HUB ASSEMBLIES: 513270
NAPA: PBR930697
APPLICATIONS:
DODGE NITRO (2007-2011)
JEEP LIBERTY (2008-2013)
