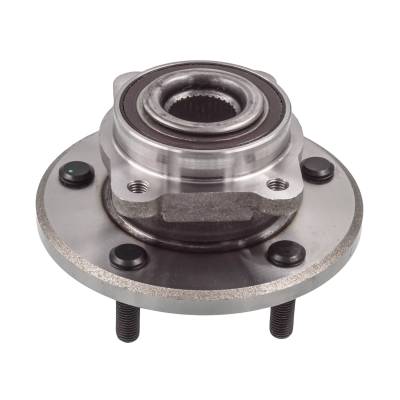

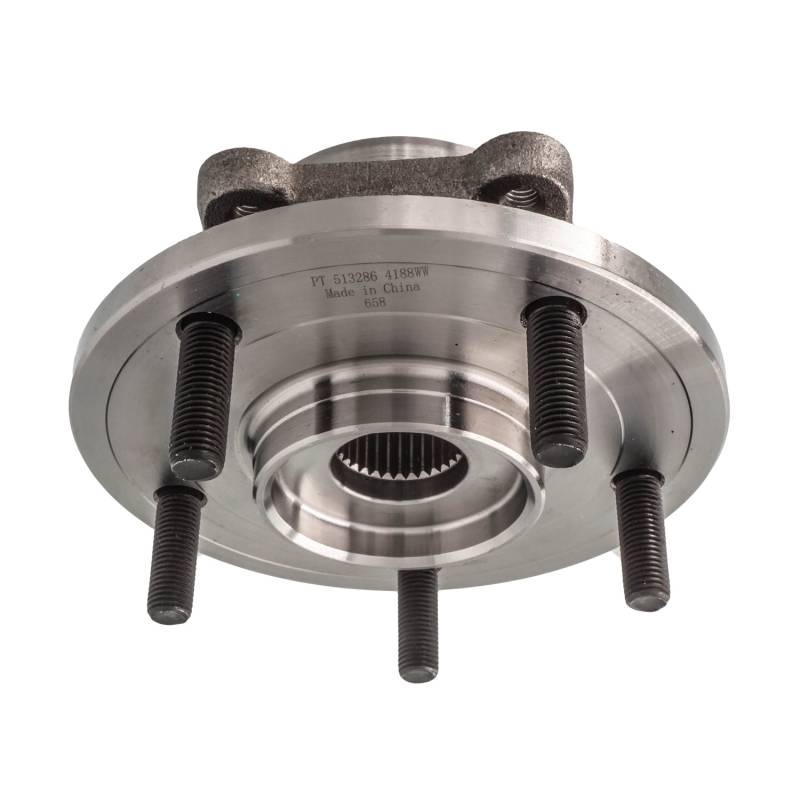

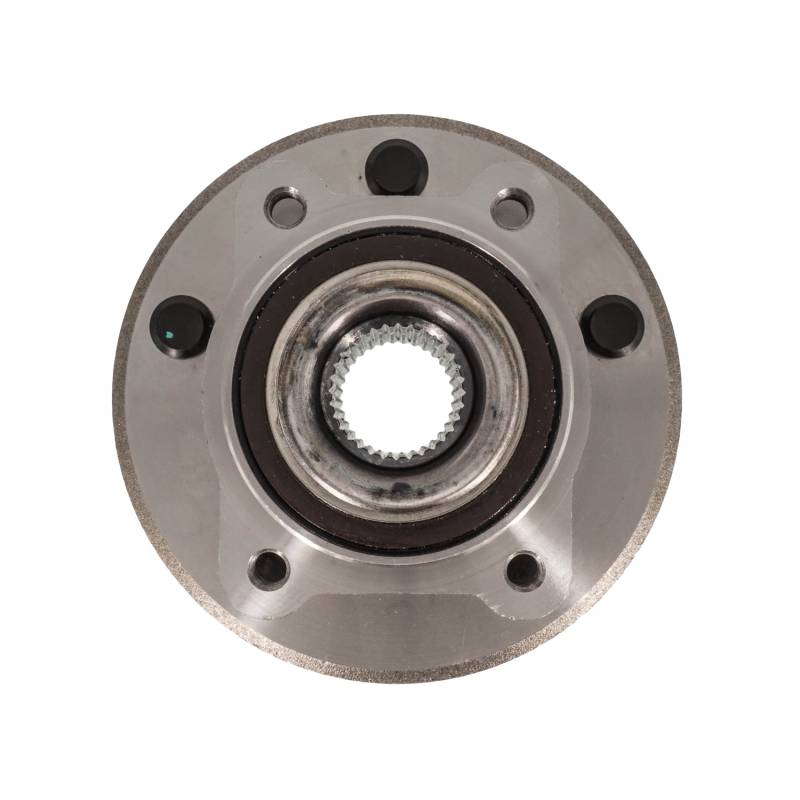

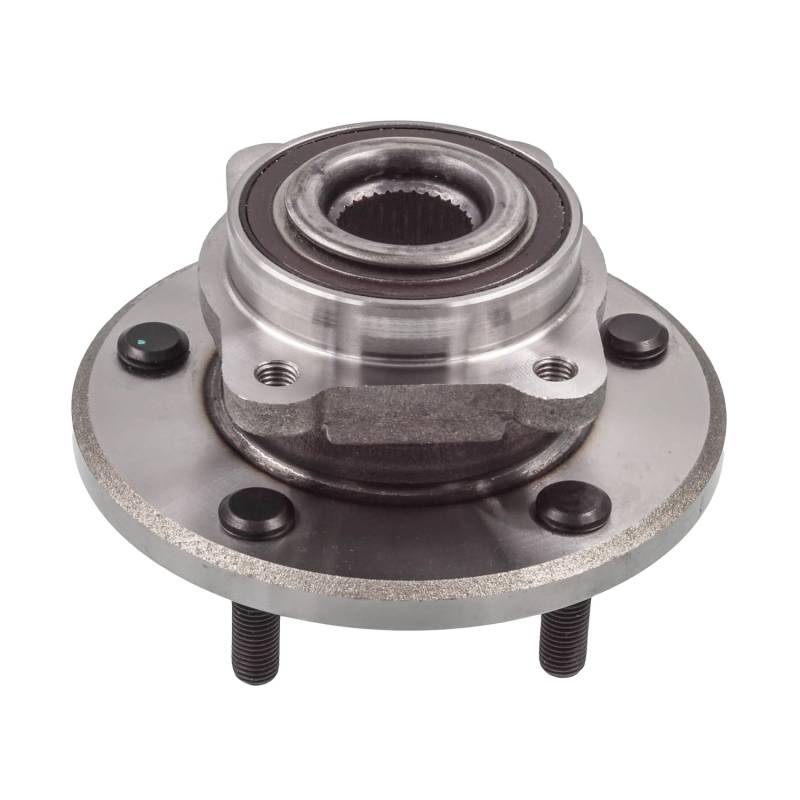

New Hub Assembly Compatible With Dodge Journey 2.4L 3.5L 3.6L 2009 2010 2011 2012 2013 2014 2015

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

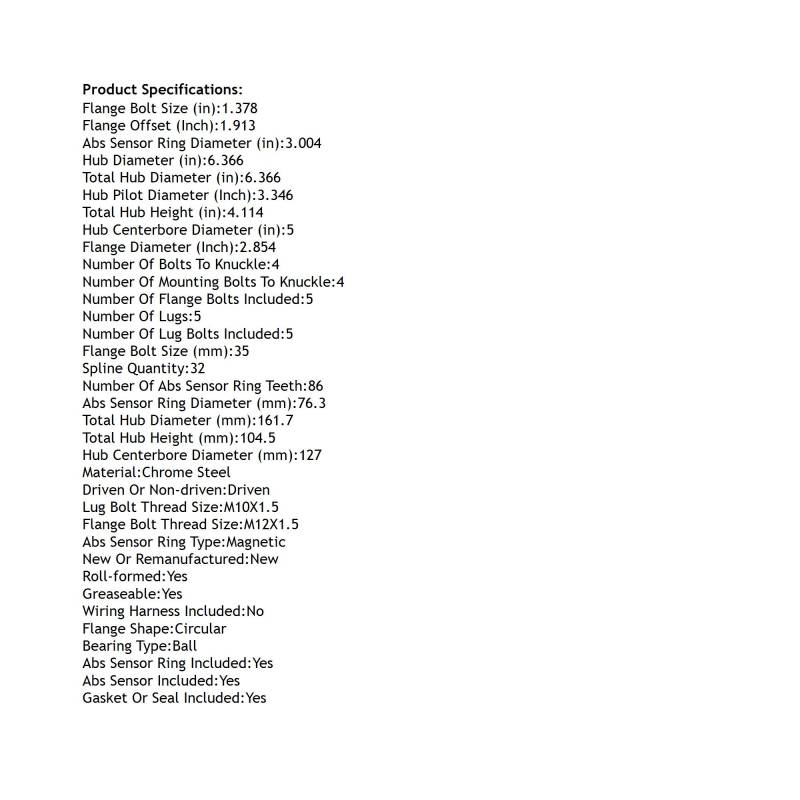

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.004
ABS SENSOR RING DIAMETER (MM): 76.3
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.378
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.854
FLANGE OFFSET (INCH): 1.913
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.366
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M10X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 86
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TOTAL HUB DIAMETER (IN): 6.366
TOTAL HUB DIAMETER (MM): 161.7
TOTAL HUB HEIGHT (IN): 4.114
TOTAL HUB HEIGHT (MM): 104.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-424848
BCA: WE61249
CENTRIC PARTS: 40163003
FAG US: 559765.01
GSP: 124286
MEVOTECH: H513286
MOOG HUB ASSEMBLIES: 513286
NAPA: PBR930700

APPLICATIONS:
DODGE JOURNEY (2009-2020)
