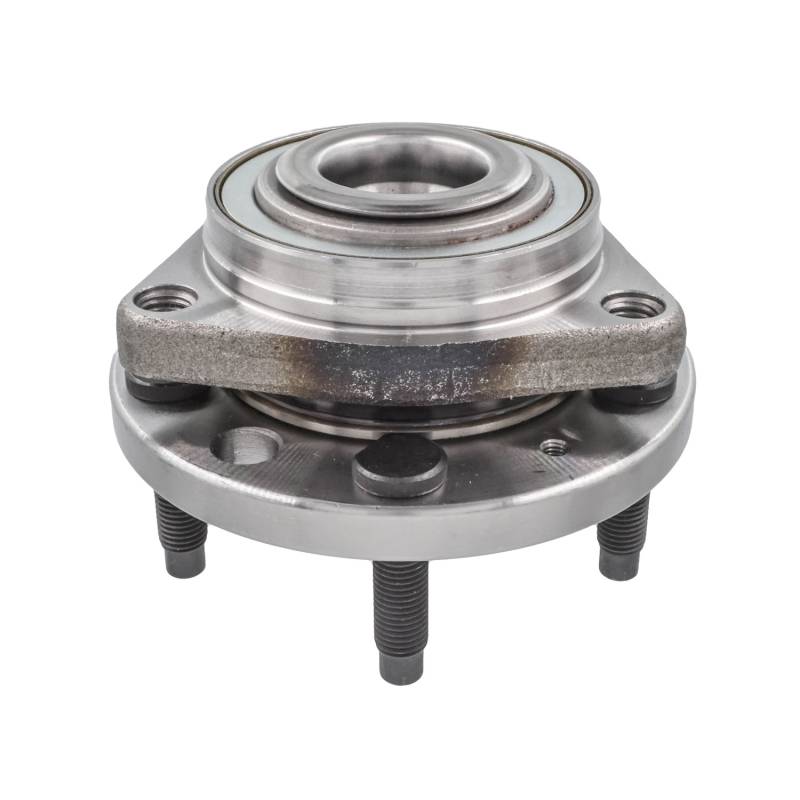

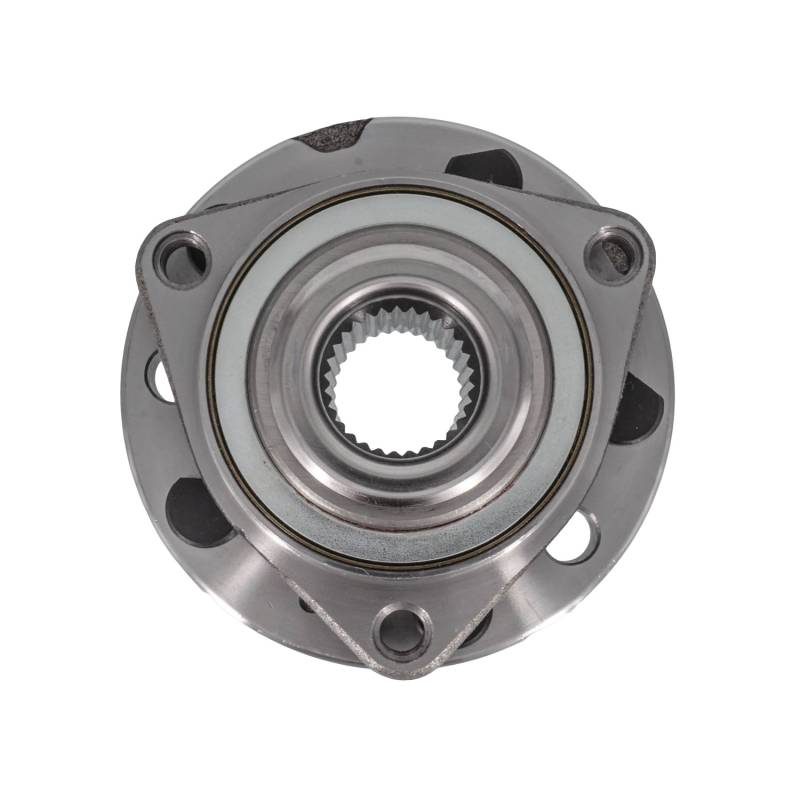

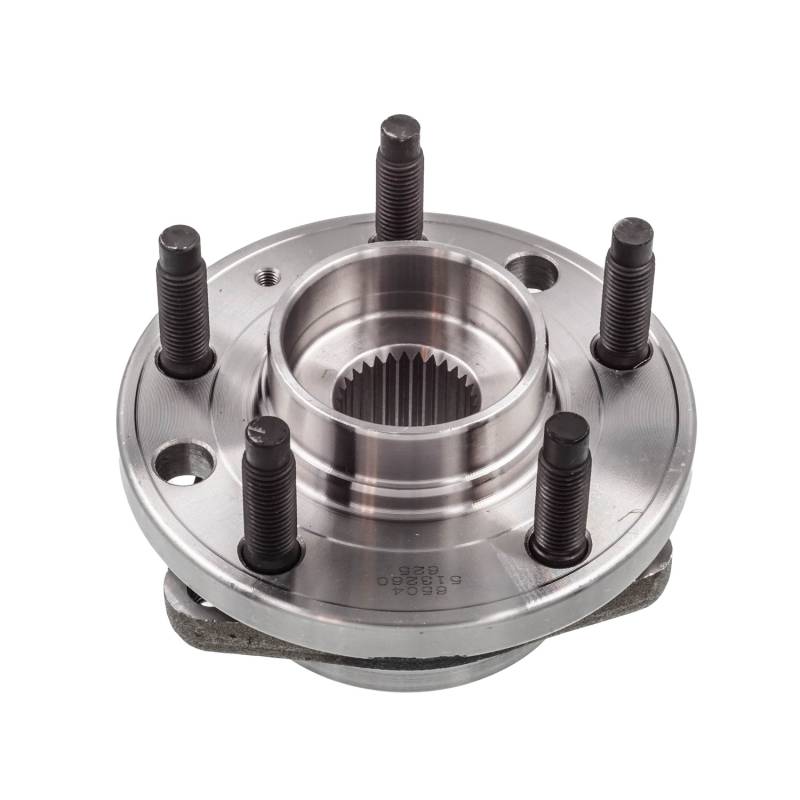

New Hub Assembly Compatible With Pontiac Solstice 2.0L 2.4L 2006 2007 2008 By Part Numbers Pt513260

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

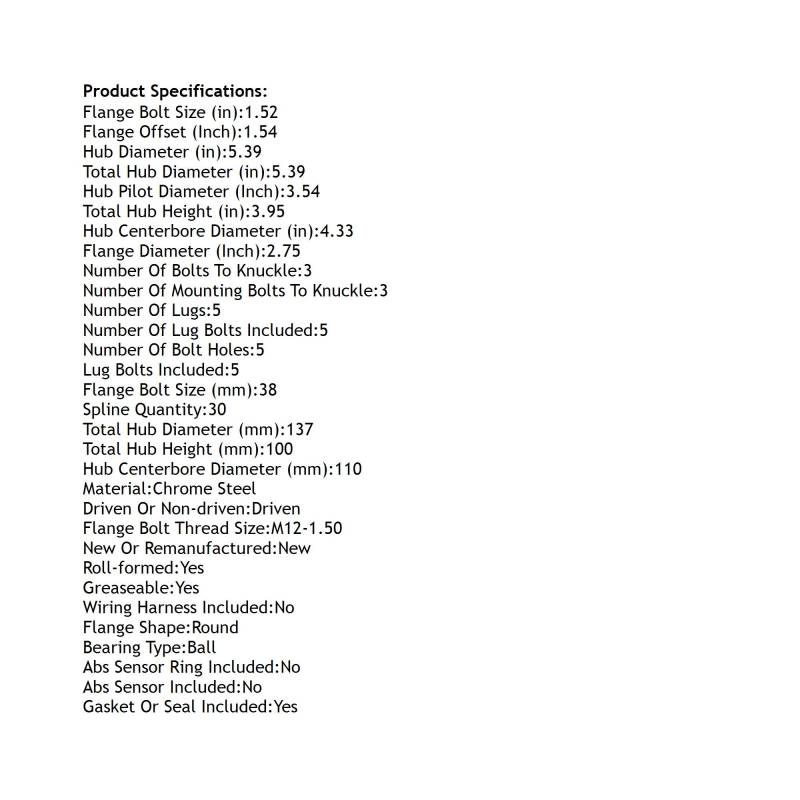

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.52
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.75
FLANGE OFFSET (INCH): 1.54
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.33
HUB CENTERBORE DIAMETER (MM): 110
HUB DIAMETER (IN): 5.39
HUB PILOT DIAMETER (INCH): 3.54
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.39
TOTAL HUB DIAMETER (MM): 137
TOTAL HUB HEIGHT (IN): 3.95
TOTAL HUB HEIGHT (MM): 100
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: FW281
AUTOPART INTERNATIONAL: 1411-246652
BCA: WE61541
CENTRIC PARTS: 40062011
FAG US: 559580A
GENERAL MOTORS: 10345967
GSP: 104260
MEVOTECH: H513260
MOOG HUB ASSEMBLIES: 513260
NAPA: PBR930643

APPLICATIONS:
PONTIAC SOLSTICE (2006-2008)
