THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

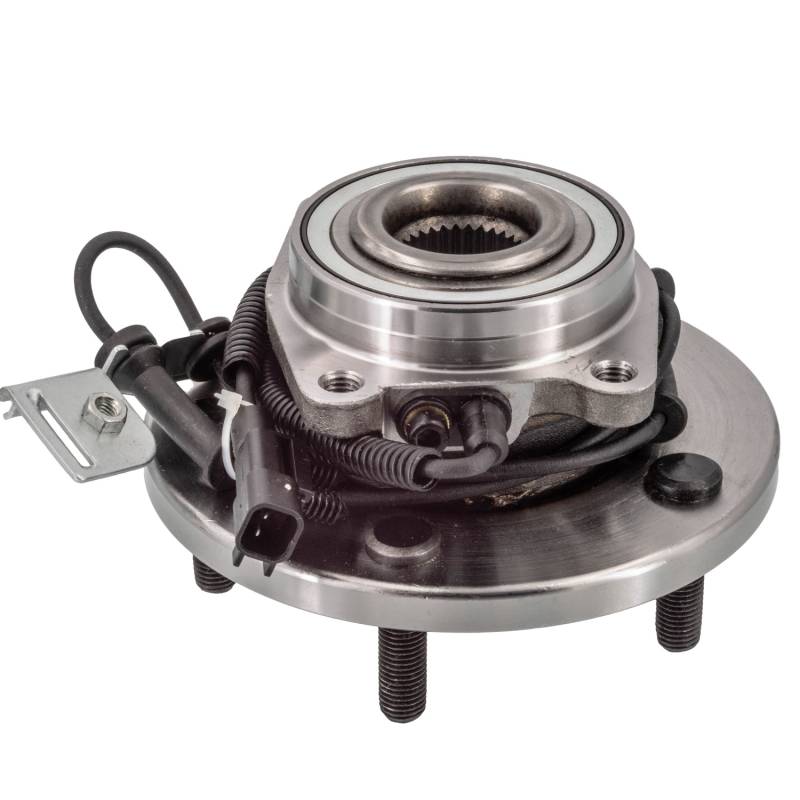

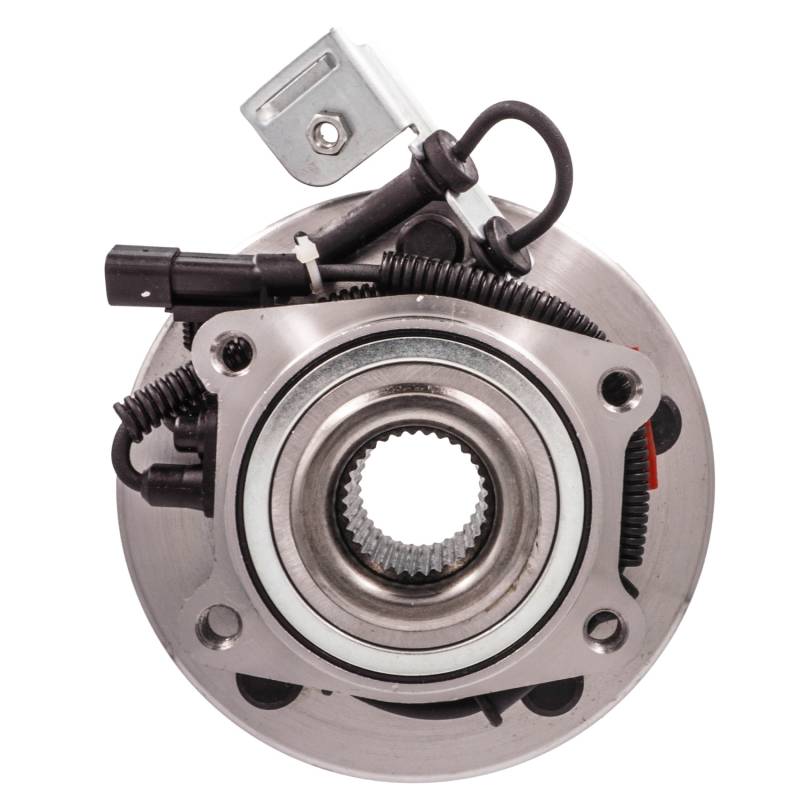

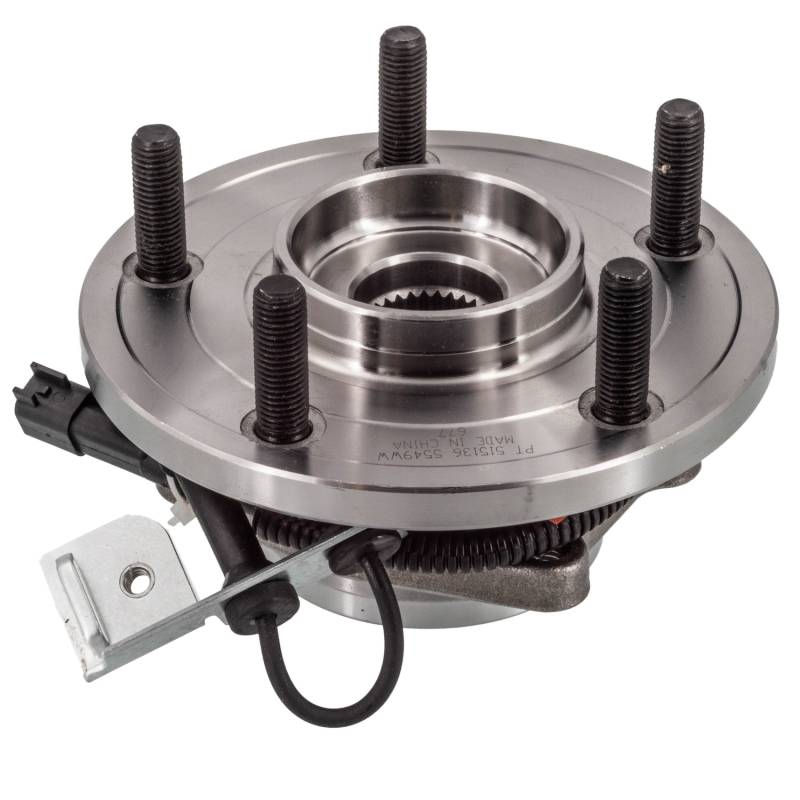

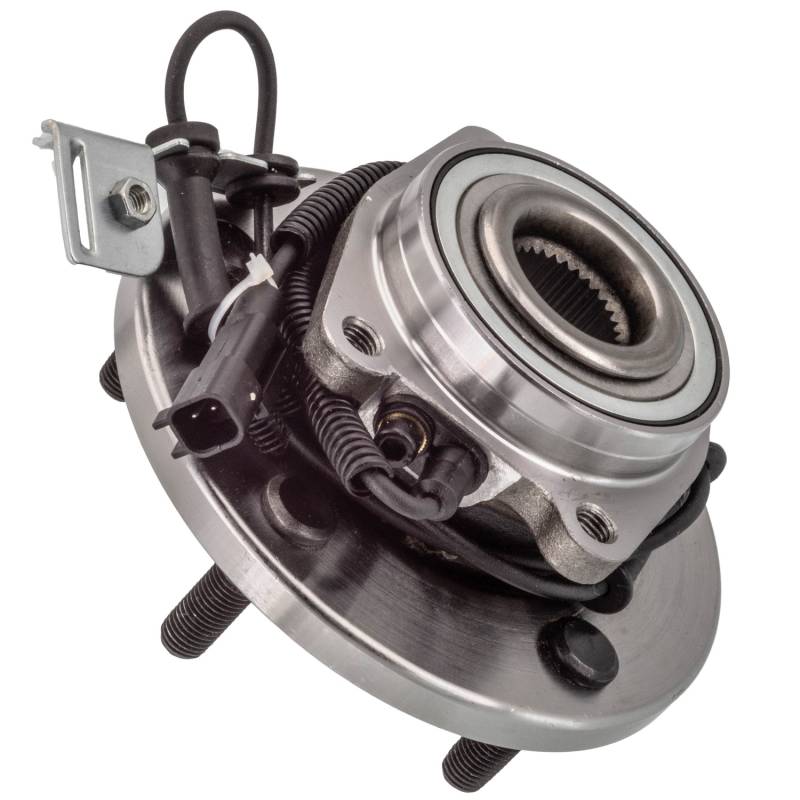

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.38
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M10-1.50
FLANGE DIAMETER (INCH): 2.85
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.37
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.37
TOTAL HUB DIAMETER (MM): 161
TOTAL HUB HEIGHT (IN): 4.09
TOTAL HUB HEIGHT (MM): 104
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 38.938
REPLACES:
AUTOPART INTERNATIONAL: 1411-313866
BCA: WE60927
CENTRIC PARTS: 40263004
GSP: 126136HD 124273HD
MEVOTECH: MB25300
MOOG HUB ASSEMBLIES: 515136
NAPA: PBR930688
APPLICATIONS:
CHRYSLER TOWN & COUNTRY (2008-2011)
DODGE GRAND CARAVAN (2008-2011)
VOLKSWAGEN ROUTAN (2009-2012)
