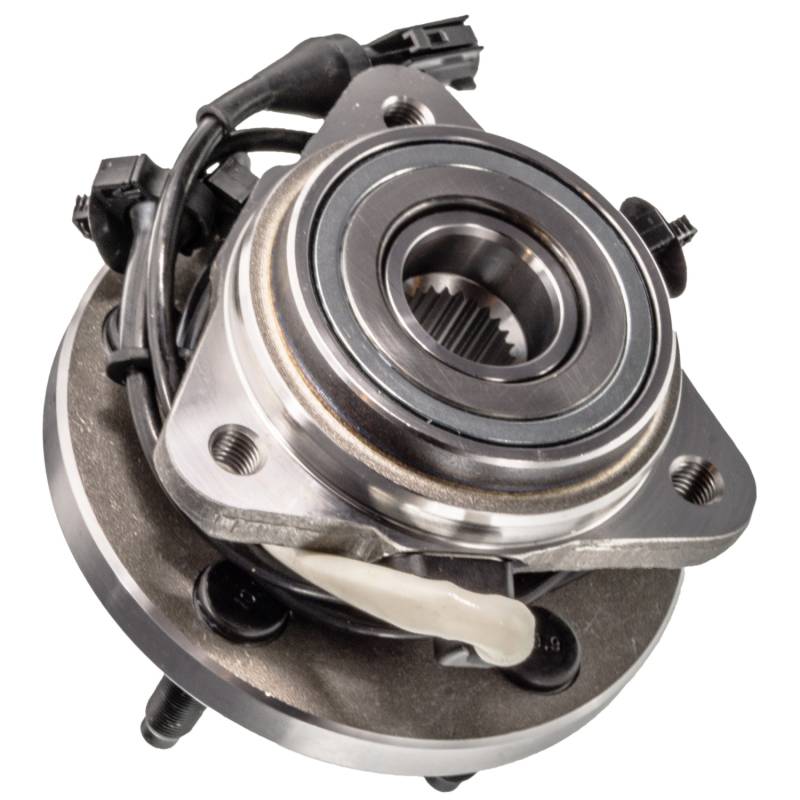

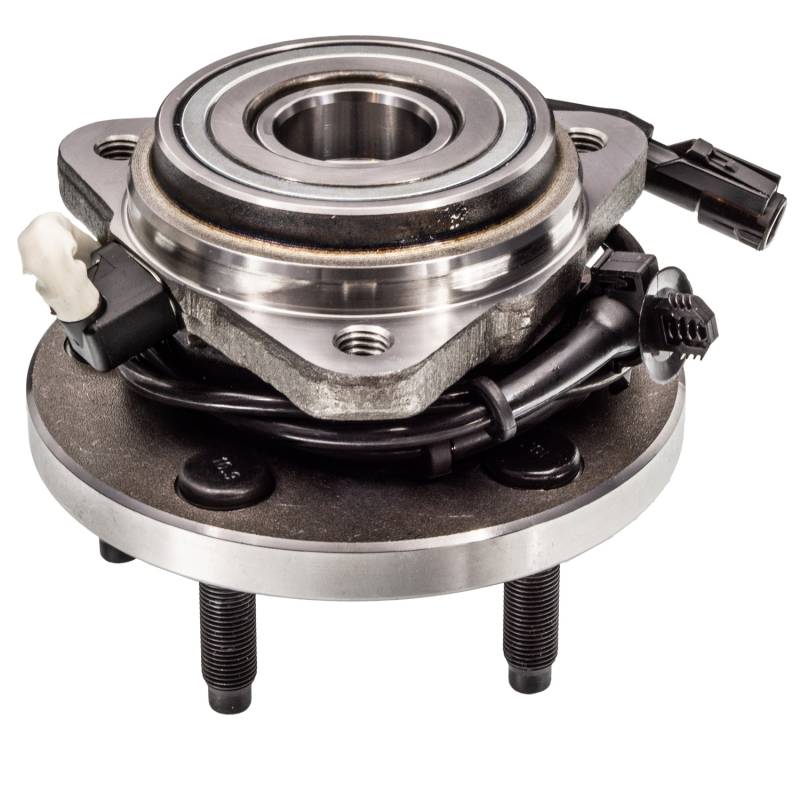

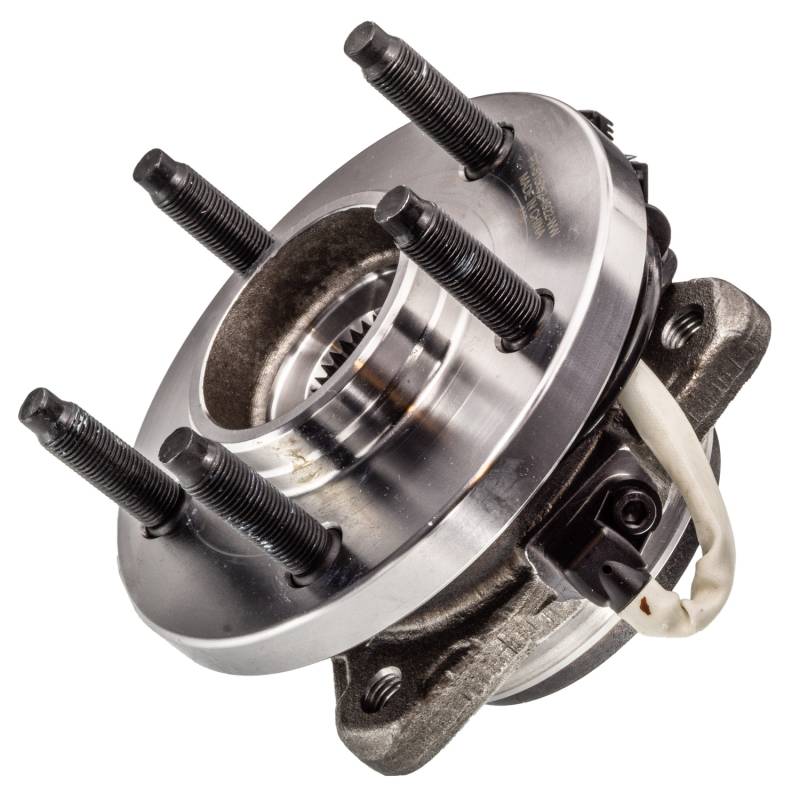

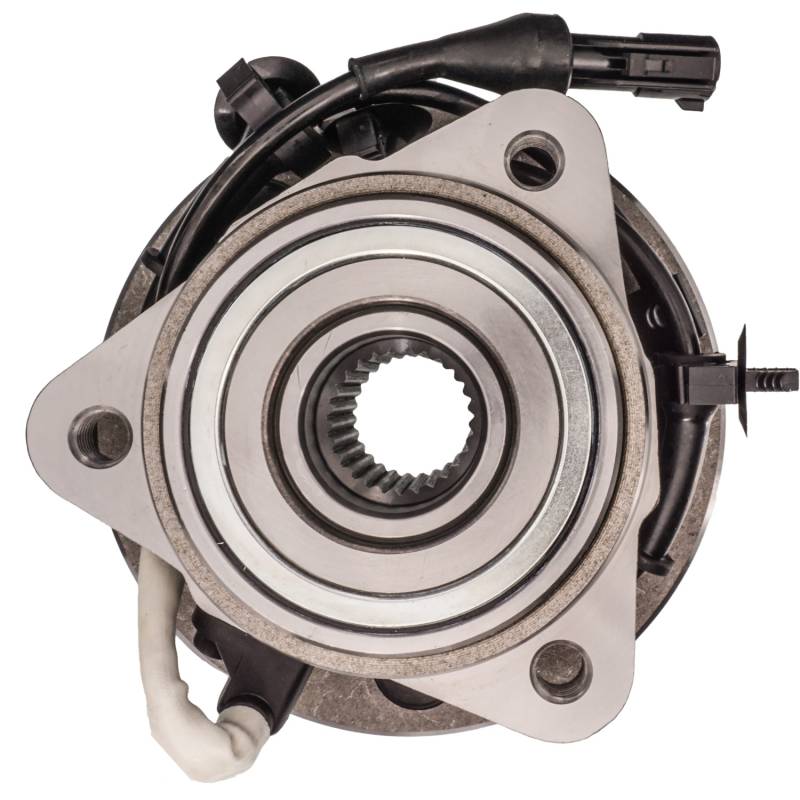

New Hub Assembly Compatible With Ford Mazda Ranger B4000 B3000 2000 2001 2002 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

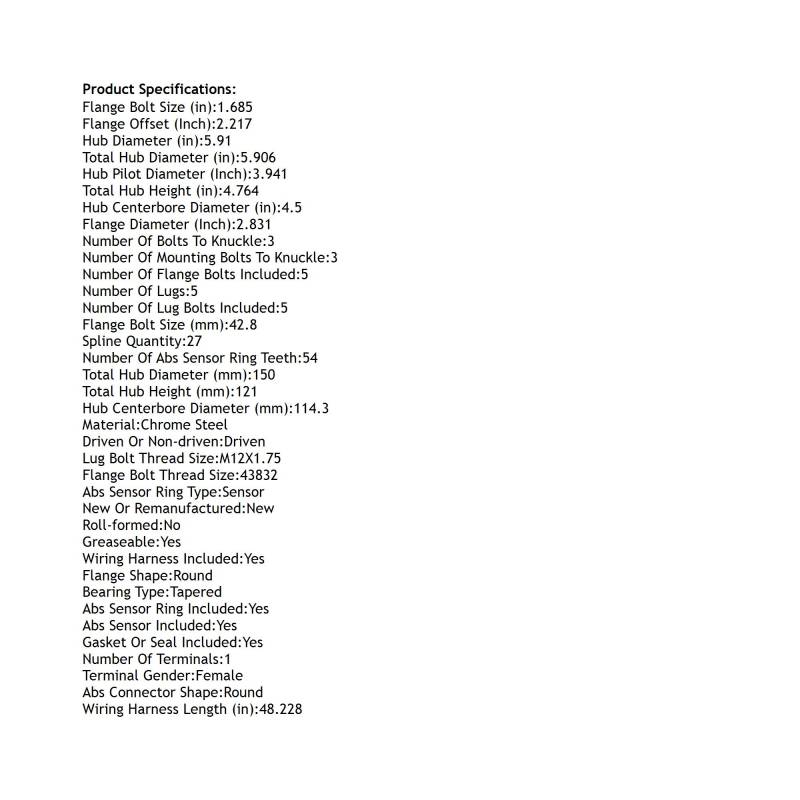

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.685
FLANGE BOLT SIZE (MM): 42.8
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.831
FLANGE OFFSET (INCH): 2.217
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.91
HUB PILOT DIAMETER (INCH): 3.941
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.906
TOTAL HUB DIAMETER (MM): 150
TOTAL HUB HEIGHT (IN): 4.764
TOTAL HUB HEIGHT (MM): 121
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 48.228

REPLACES:
AUTOPART INTERNATIONAL: 1411-49147
BCA: WE61554
BECK/ARNLEY: 051-6173
CENTRIC PARTS: 40265025E
FAG US: 101982
FORD: G2MZ 1104 AP
GSP: 116013
MEVOTECH: H515013
MOOG HUB ASSEMBLIES: 515013
MOTORCRAFT: NHUB-41 NHUB41
NAPA: PBR930343

APPLICATIONS:
FORD RANGER (2000-2002)
MAZDA B4000 (2000-2002)
MAZDA B3000 (2001-2002)
