THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

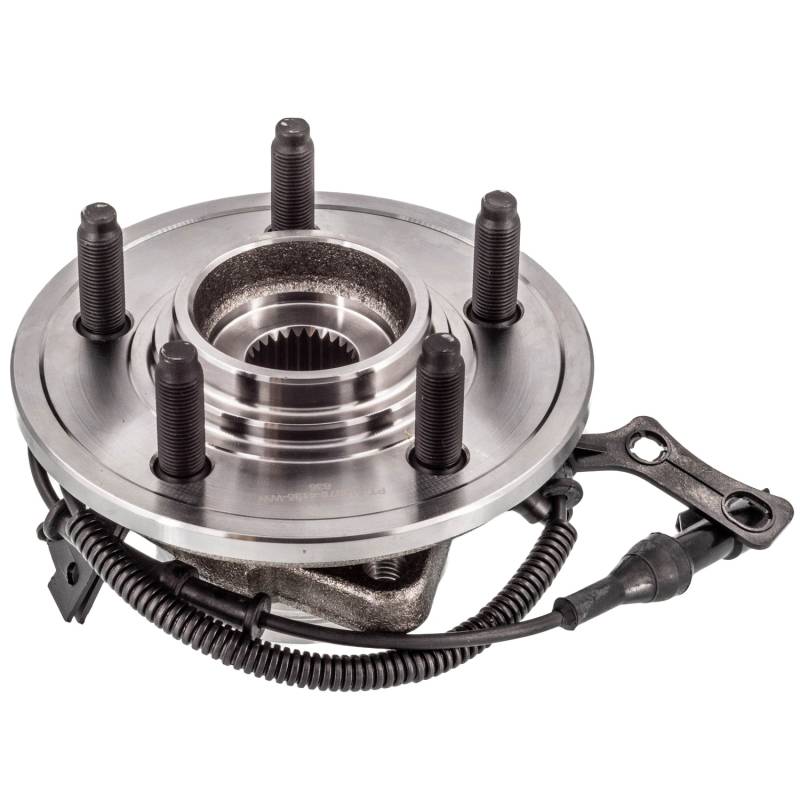

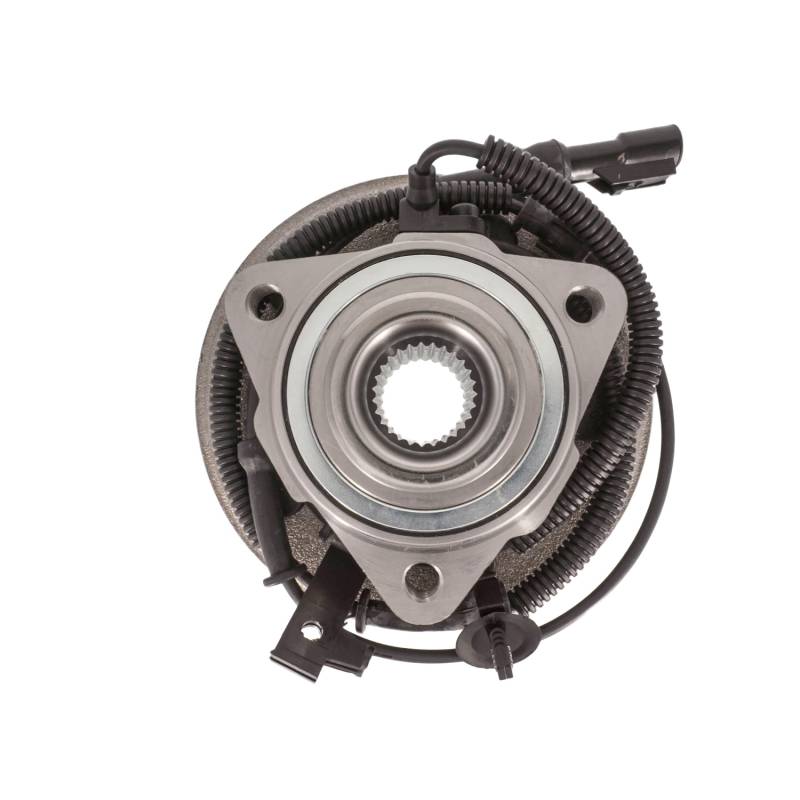

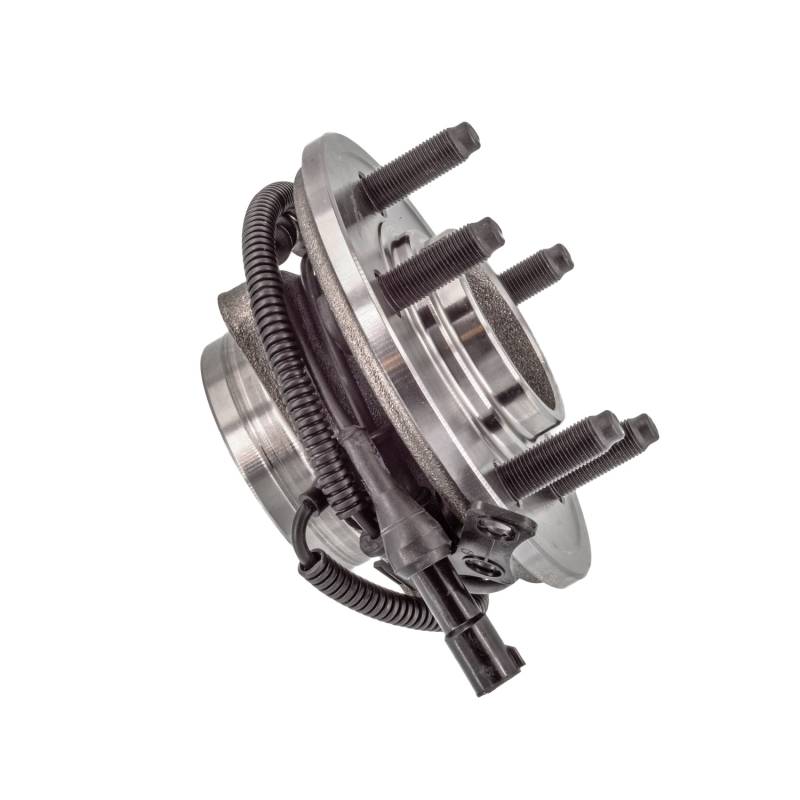

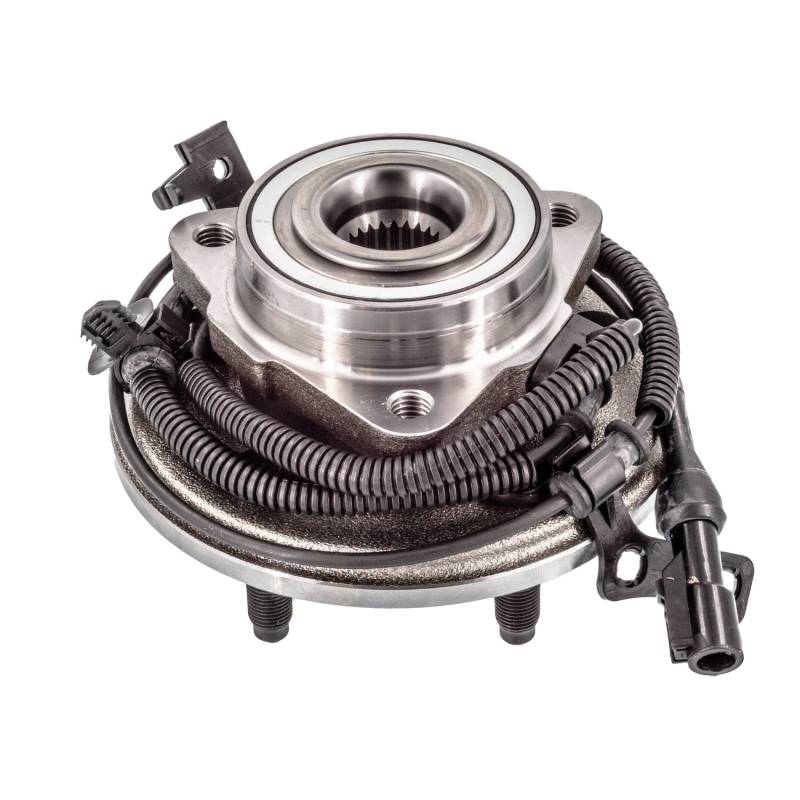

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.65
FLANGE BOLT SIZE (MM): 42
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 3.22
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 6.3
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 27
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.3
TOTAL HUB DIAMETER (MM): 160
TOTAL HUB HEIGHT (IN): 4.57
TOTAL HUB HEIGHT (MM): 116
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 52.75
REPLACES:
AUTOPART INTERNATIONAL: 1411-255698
BCA: WE60853
CENTRIC PARTS: 40265008
FAG US: 102014
FORD: G2MZ 1104 E
GSP: 106078HD
MEVOTECH: H515078
MOOG HUB ASSEMBLIES: 515078
MOTORCRAFT: NHUB-6 NHUB6 PT515078
NAPA: PBR930741
APPLICATIONS:
FORD EXPLORER (2006-2010)
MERCURY MOUNTAINEER (2006-2010)
FORD EXPLORER SPORT TRAC (2007-2010)
