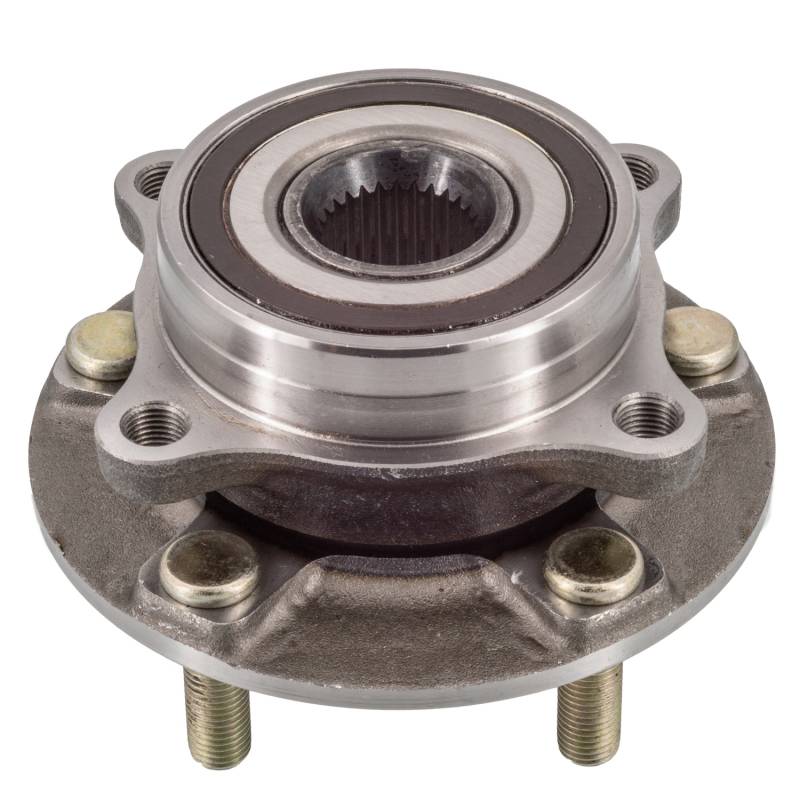

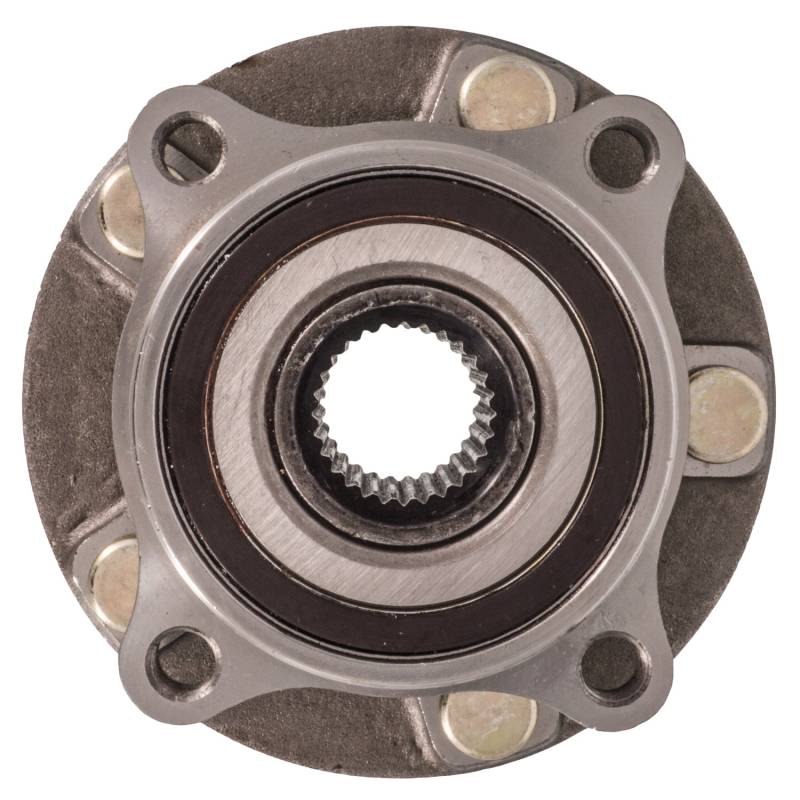

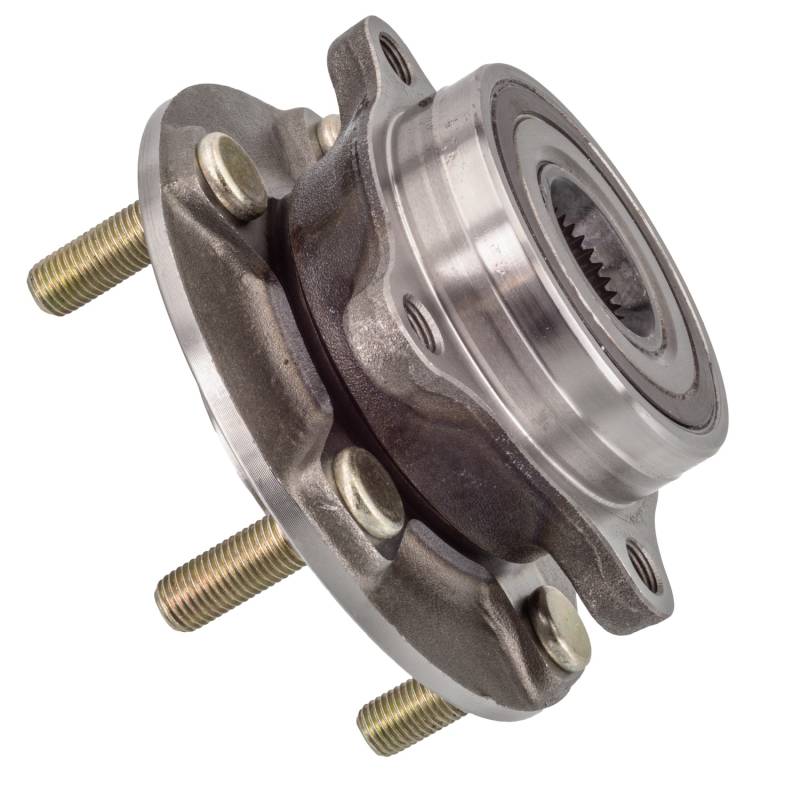

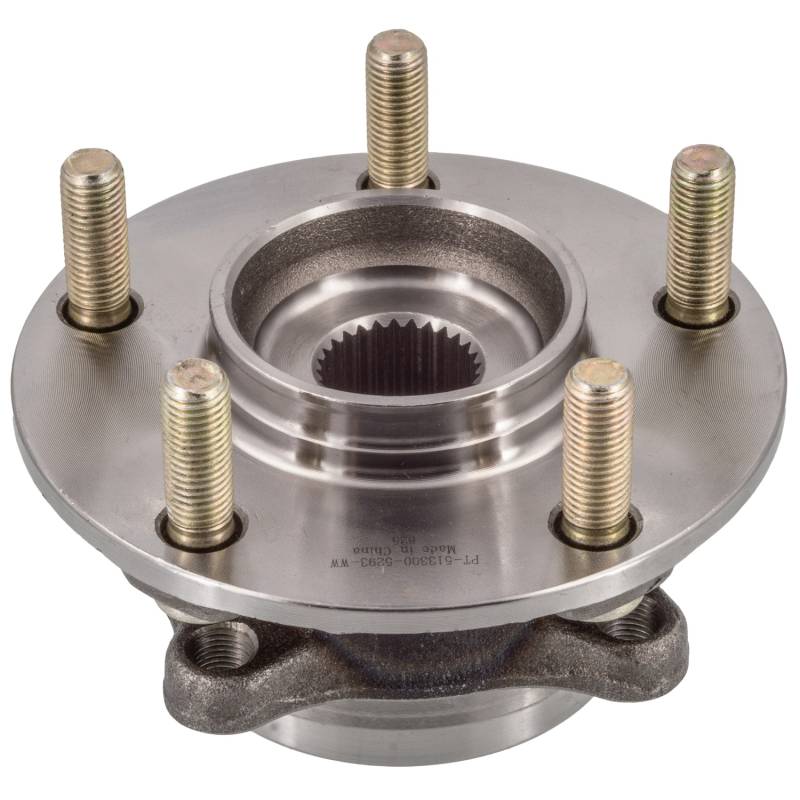

New Hub Assembly Compatible With Mitsubishi Lancer 2.0L 2.4L 2008 2009 2010 2011 2012 2013 2014 2015

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

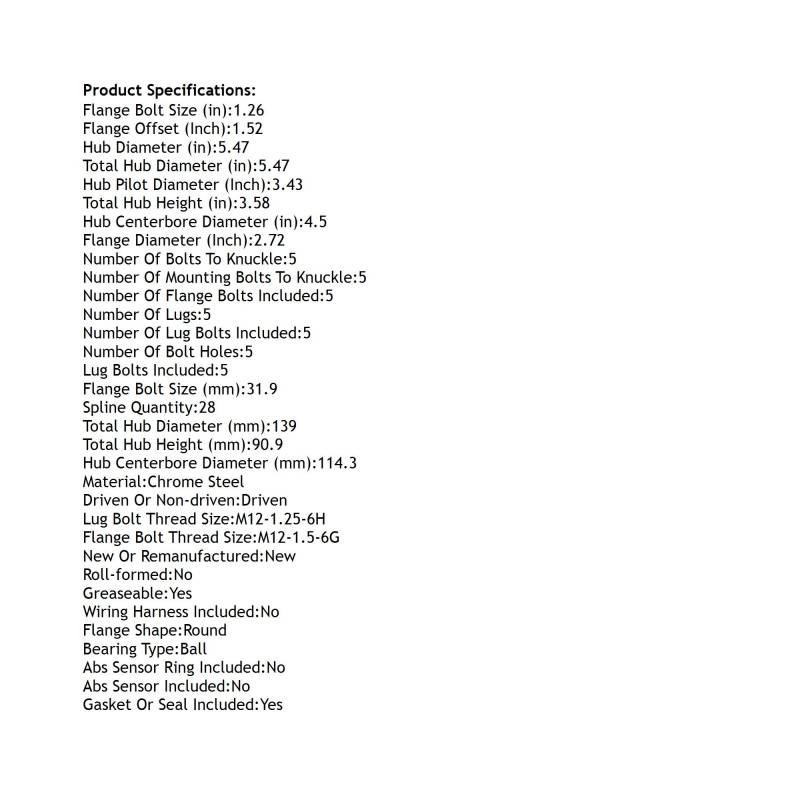

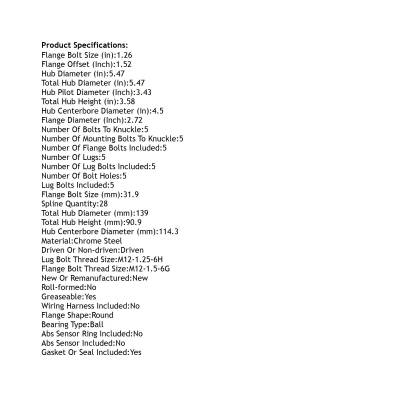

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.26
FLANGE BOLT SIZE (MM): 31.9
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.72
FLANGE OFFSET (INCH): 1.52
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.47
HUB PILOT DIAMETER (INCH): 3.43
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.47
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 3.58
TOTAL HUB HEIGHT (MM): 90.9
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-326400
BCA: WE61414
CENTRIC PARTS: 40146001
FAG US: 101886
GSP: 514300
MEVOTECH: H513300
MOOG HUB ASSEMBLIES: 513300
NAPA: PBR930799

APPLICATIONS:
MITSUBISHI LANCER (2008-2015)
