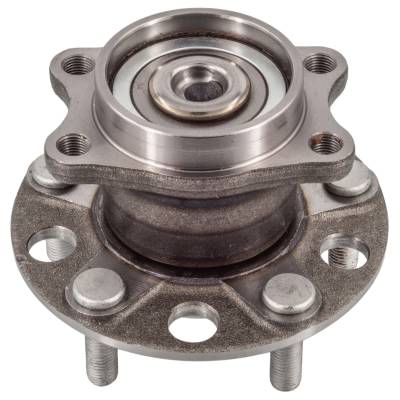

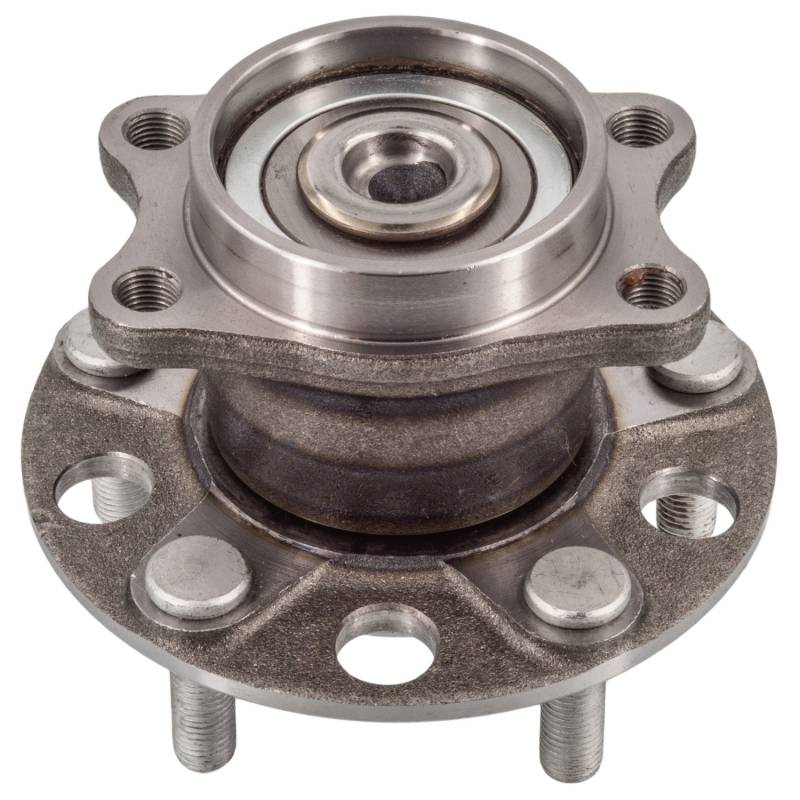

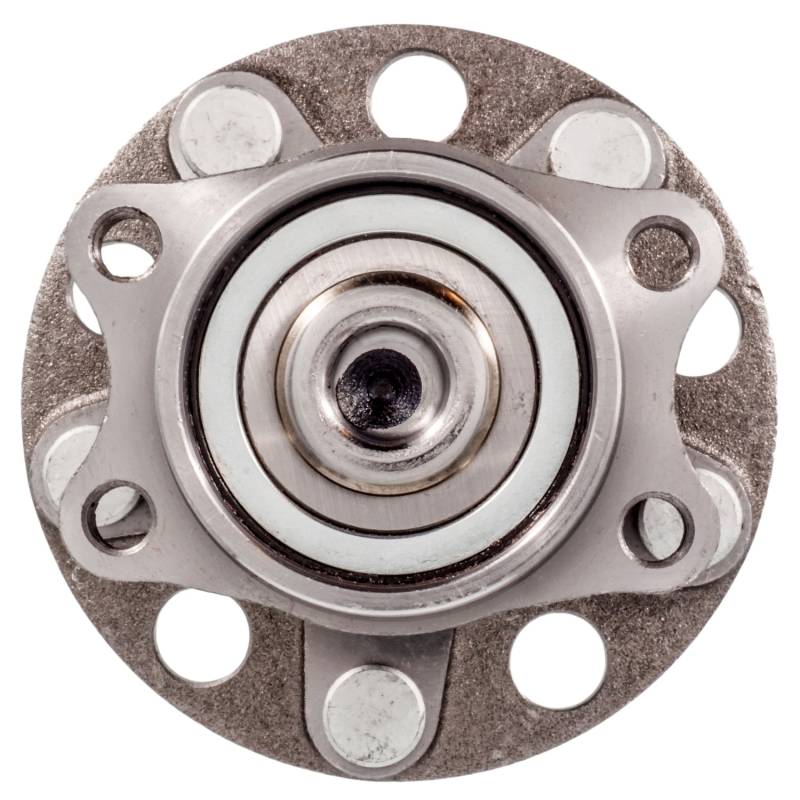

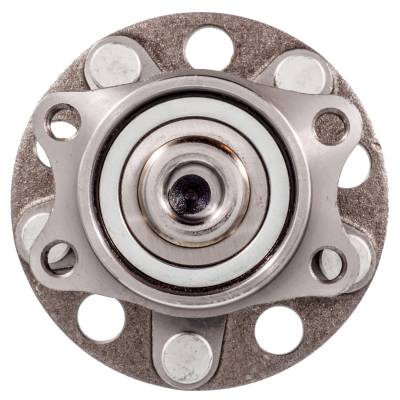

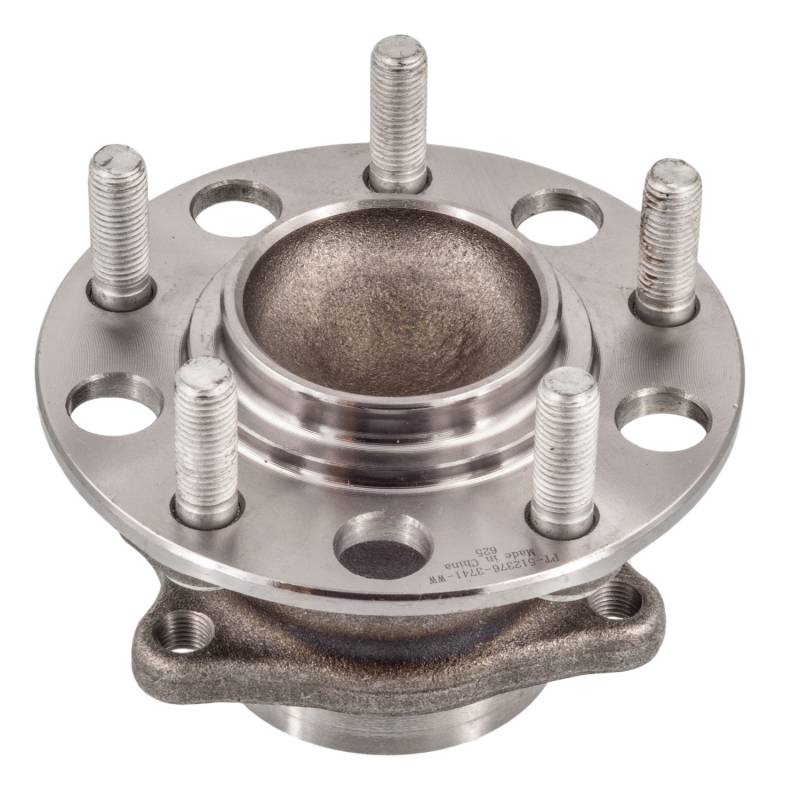

New Hub Assembly Compatible With Mitsubishi Lancer 2.0L 2.4L 2008 2009 By Part Numbers Pt512376

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

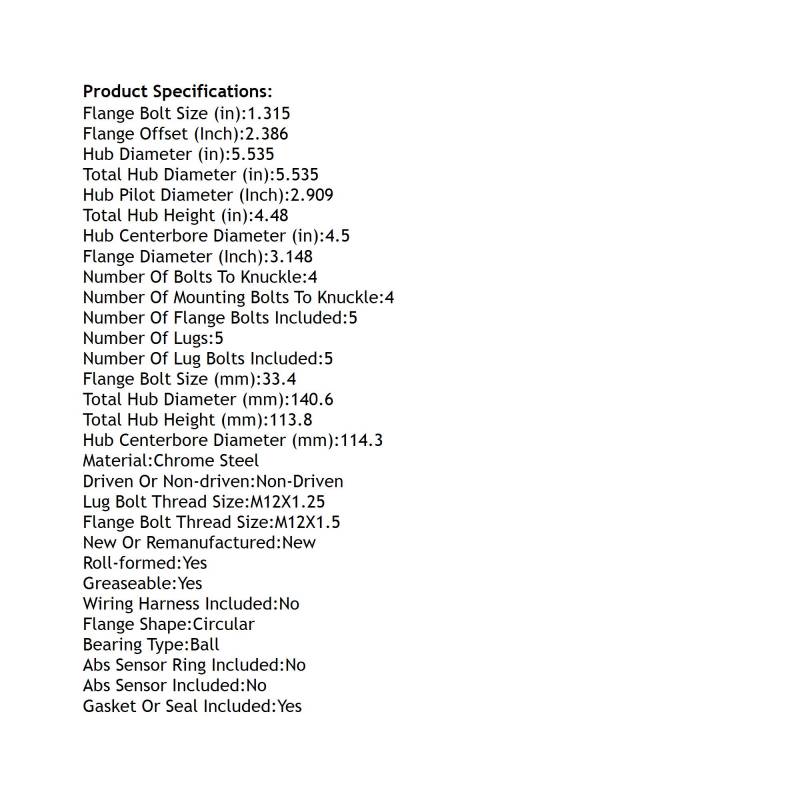

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.315
FLANGE BOLT SIZE (MM): 33.4
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 3.148
FLANGE OFFSET (INCH): 2.386
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.535
HUB PILOT DIAMETER (INCH): 2.909
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.535
TOTAL HUB DIAMETER (MM): 140.6
TOTAL HUB HEIGHT (IN): 4.48
TOTAL HUB HEIGHT (MM): 113.8
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-425130
BCA: WE60471
CENTRIC PARTS: 40546012
FAG US: 101954
GSP: 513376
MEVOTECH: H512376
MOOG HUB ASSEMBLIES: 512376
ZZZN: 51750-B1050

APPLICATIONS:
MITSUBISHI LANCER (2008-2009)
