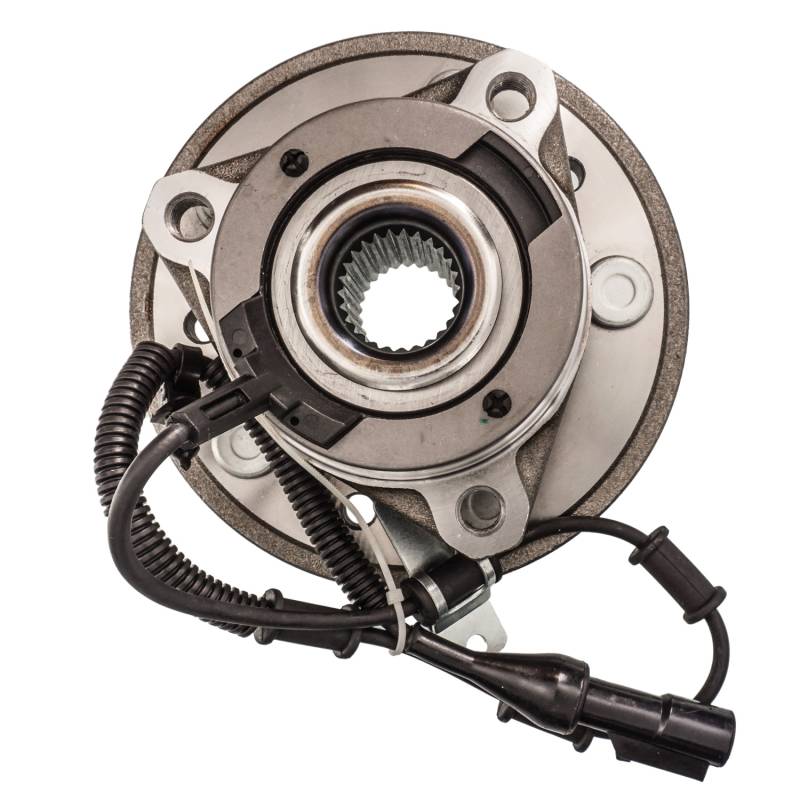

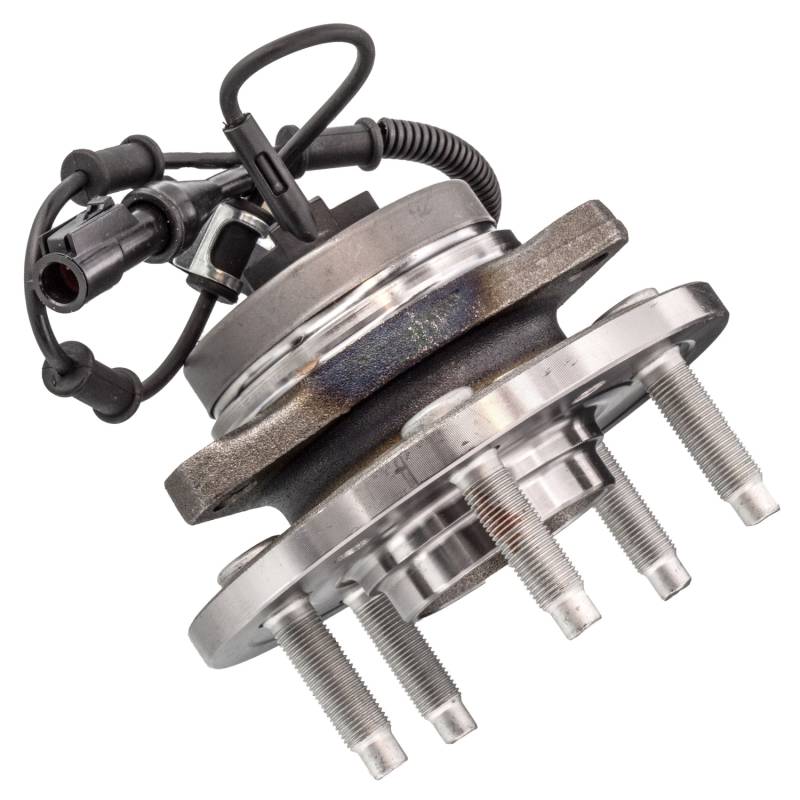

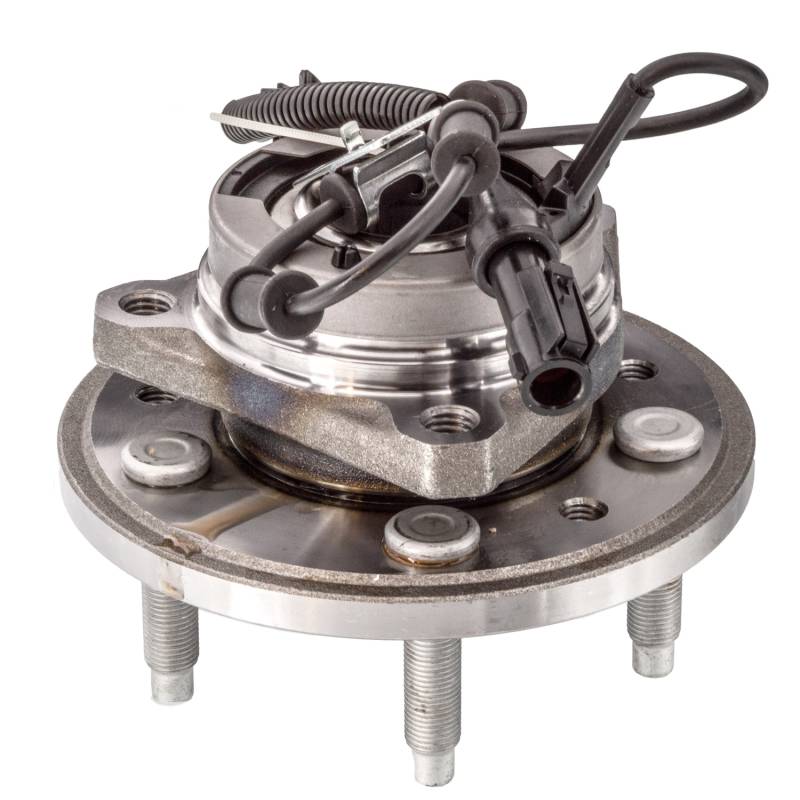

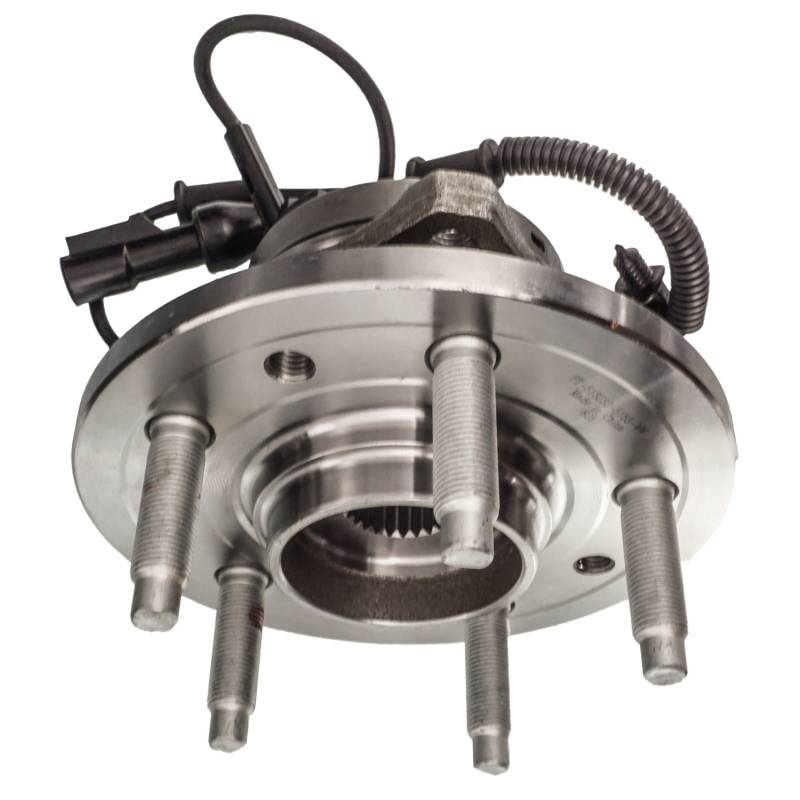

New Hub Assembly Compatible With Ford Mercury Freestar Monterey 3.9L 4.2L 2004 2005 2006 2007 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.894
ABS SENSOR RING DIAMETER (MM): 73.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.831
FLANGE BOLT SIZE (MM): 46.5
FLANGE BOLT THREAD SIZE: 1/2-20UNF
FLANGE DIAMETER (INCH): 2.795
FLANGE OFFSET (INCH): 1.634
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 6.142
HUB PILOT DIAMETER (INCH): 3.602
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 26
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.142
TOTAL HUB DIAMETER (MM): 156
TOTAL HUB HEIGHT (IN): 4.5
TOTAL HUB HEIGHT (MM): 114.3
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 25.591

REPLACES:
AUTOPART INTERNATIONAL: 1411-09867
BCA: WE61090
CENTRIC PARTS: 40261000
FAG US: 102048
GSP: 114232
MEVOTECH: H513232
MOOG HUB ASSEMBLIES: 513232
NAPA: PBR930435

APPLICATIONS:
FORD FREESTAR (2004-2007)
MERCURY MONTEREY (2004-2007)
