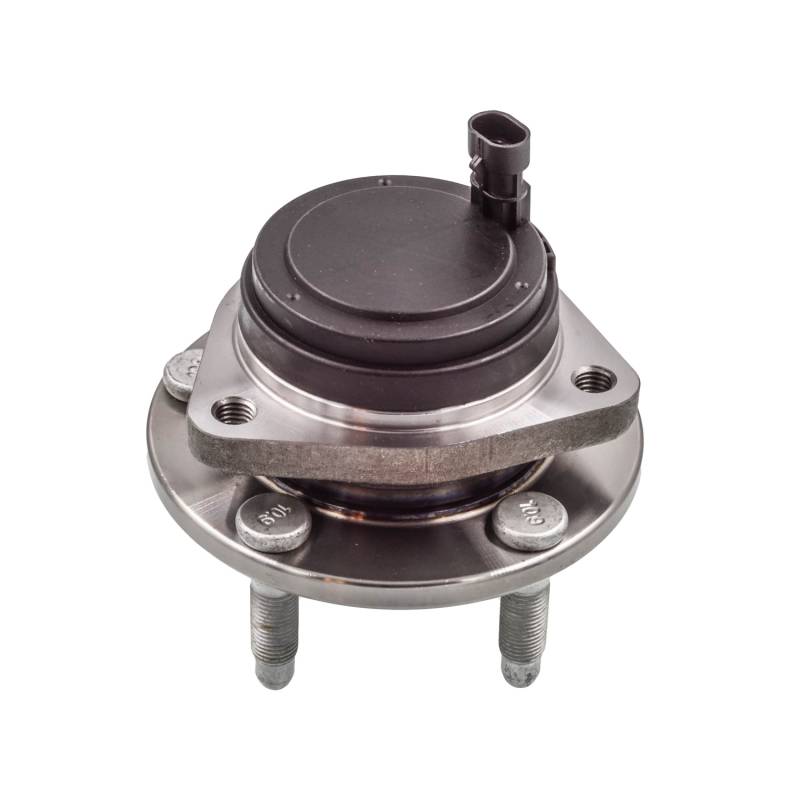

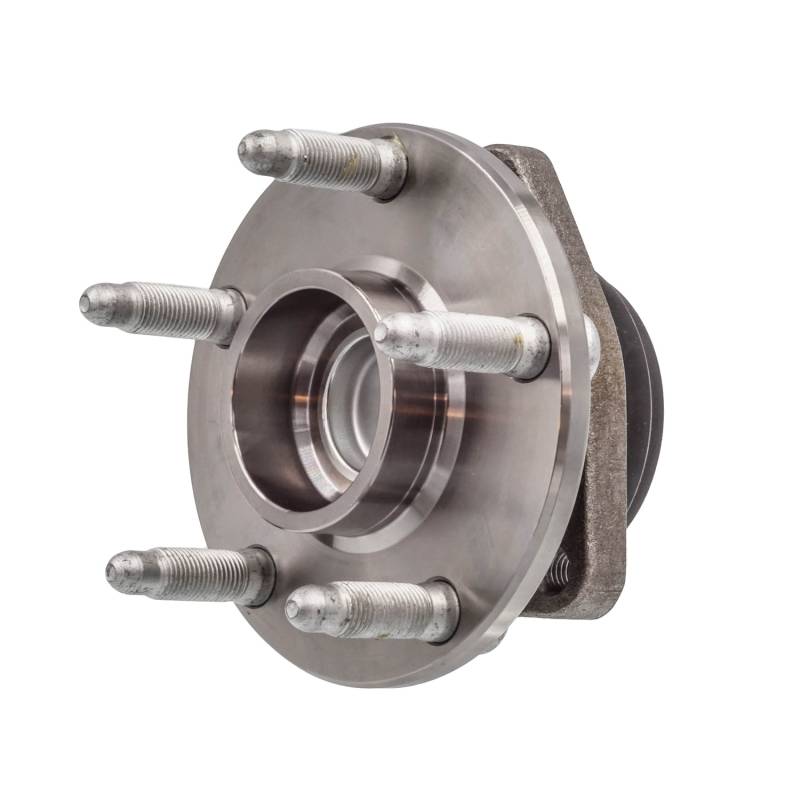

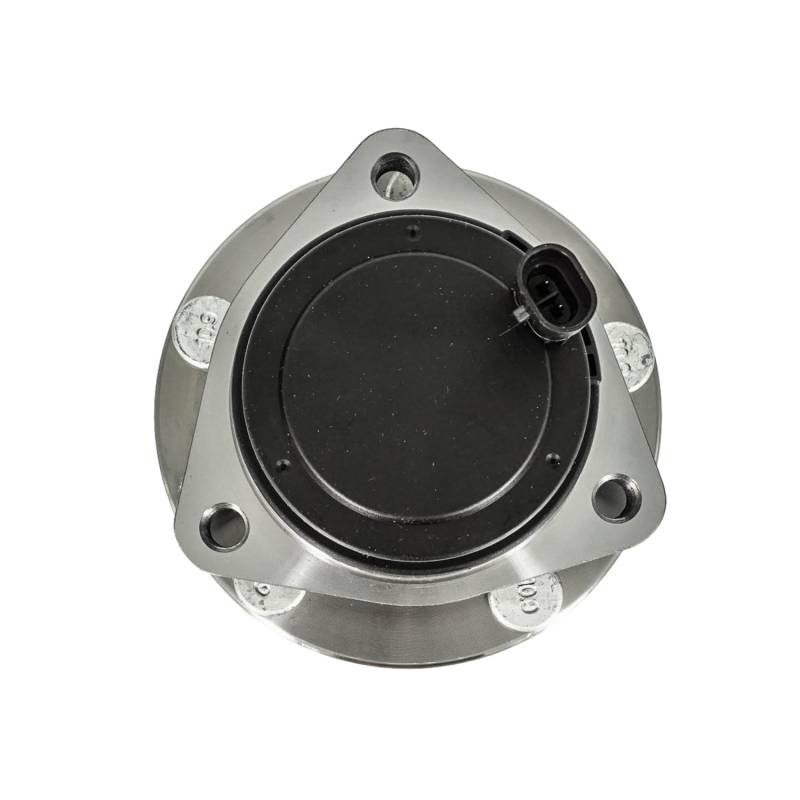

New Hub Assembly Compatible With Pontiac Chevrolet G8 Caprice 3.6L 6.0L 6.2L 2008 2009 2011 2012

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

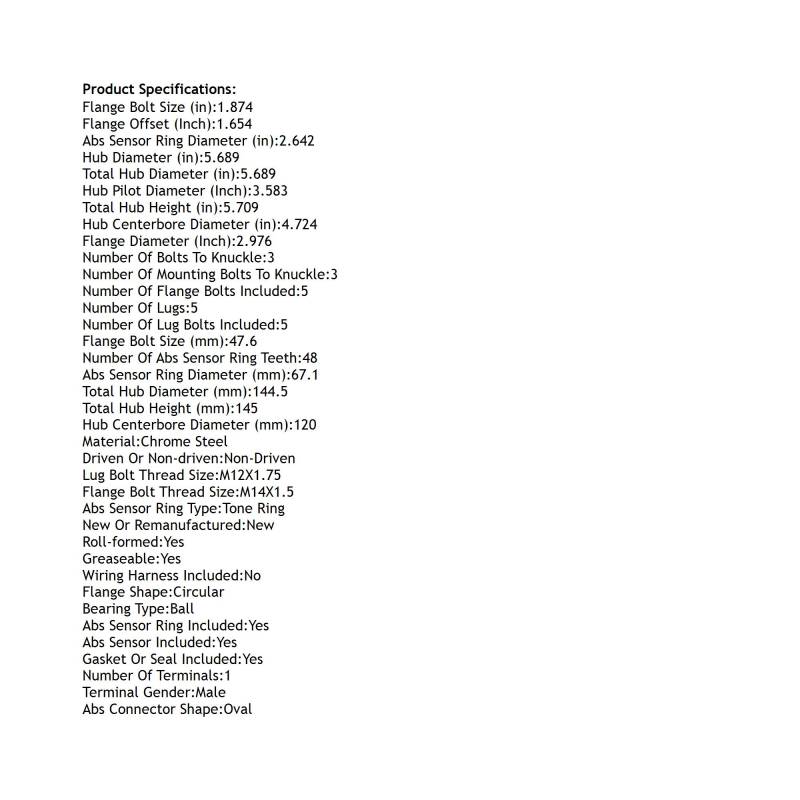

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.642
ABS SENSOR RING DIAMETER (MM): 67.1
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.874
FLANGE BOLT SIZE (MM): 47.6
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.976
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.689
HUB PILOT DIAMETER (INCH): 3.583
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.689
TOTAL HUB DIAMETER (MM): 144.5
TOTAL HUB HEIGHT (IN): 5.709
TOTAL HUB HEIGHT (MM): 145
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: 92192305
AUTOPART INTERNATIONAL: 1411-326395
BCA: WE61344
CENTRIC PARTS: 40762013
FAG US: 102228
GSP: 104280
MEVOTECH: H513280
MOOG HUB ASSEMBLIES: 513280
NAPA: PBR930782

APPLICATIONS:
PONTIAC G8 (2008-2009)
CHEVROLET CAPRICE (2011-2013)
