THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

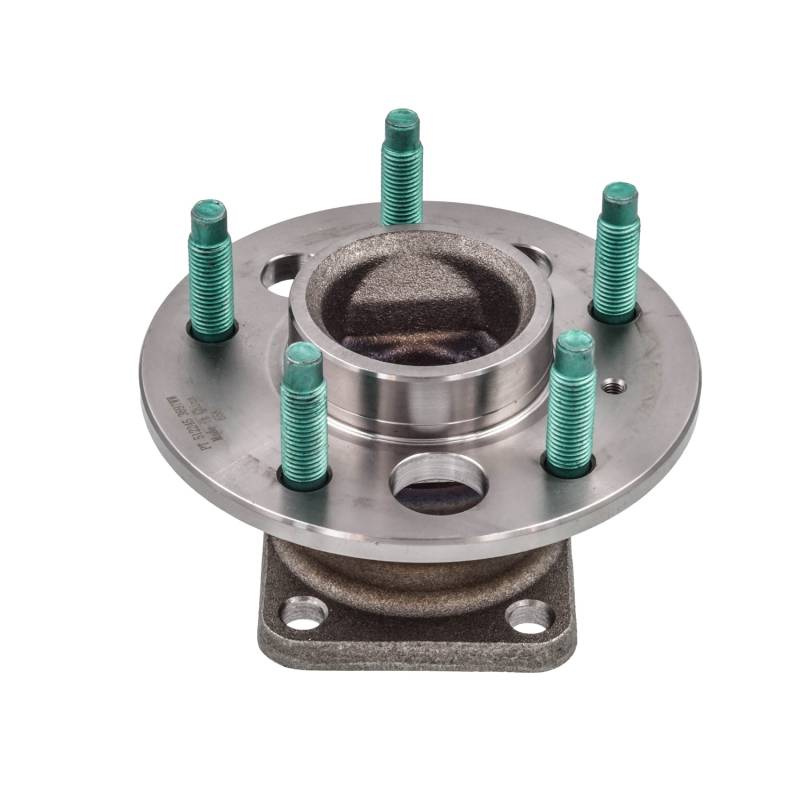

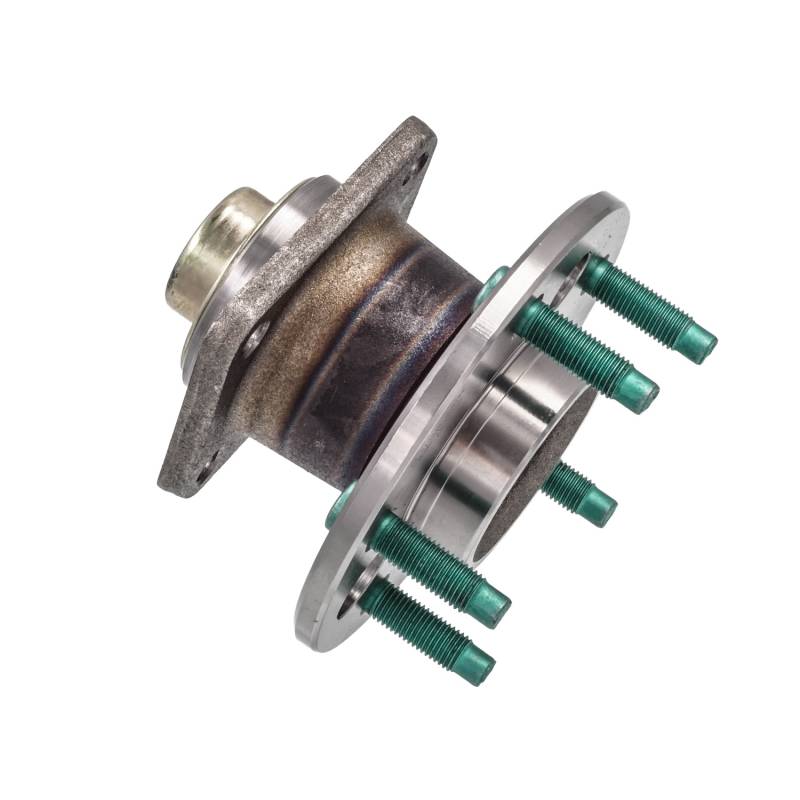

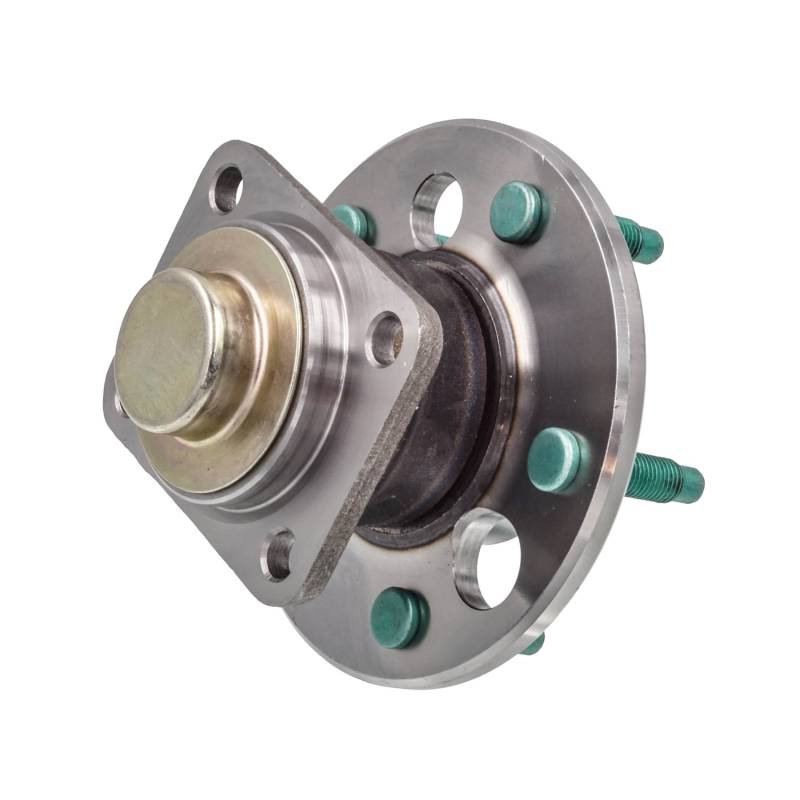

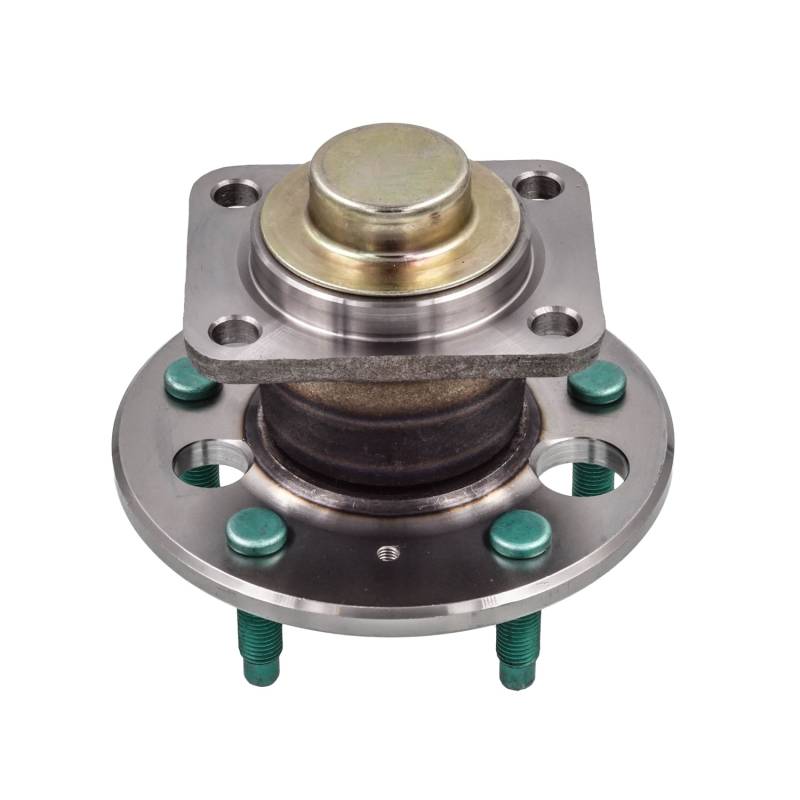

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

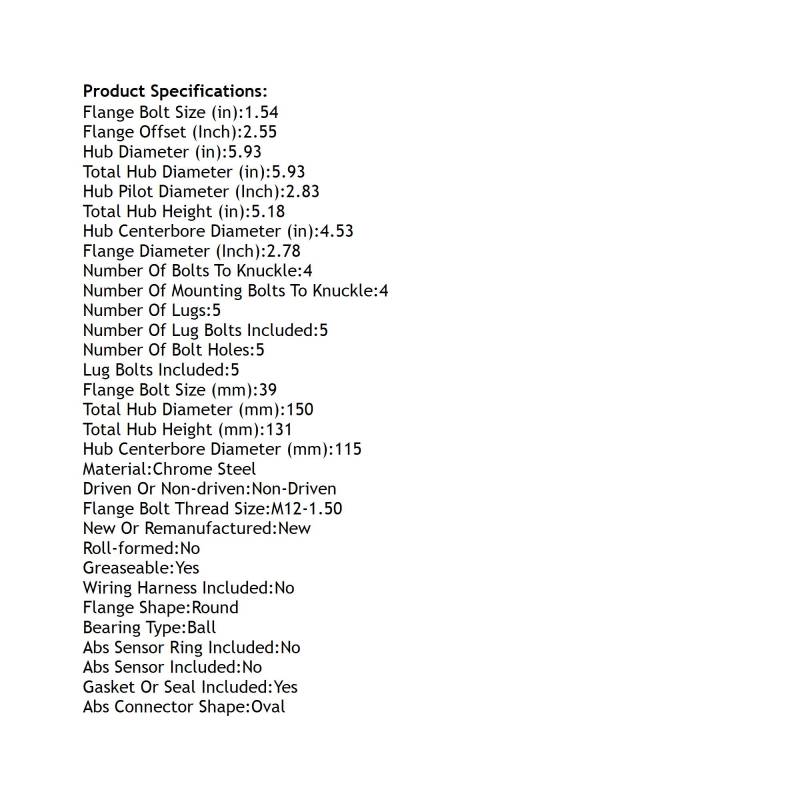

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.54
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.55
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.93
HUB PILOT DIAMETER (INCH): 2.83
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.93
TOTAL HUB DIAMETER (MM): 150
TOTAL HUB HEIGHT (IN): 5.18
TOTAL HUB HEIGHT (MM): 131
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512245
SKF: BR930026
TIMKEN: HA590074
ACDELCO: RW20-39
BCA: WE61002
CENTRIC PARTS: 40562000
GSP: 103245
MEVOTECH: H512221
MOOG HUB ASSEMBLIES: 512245
NAPA: PBR930026
APPLICATIONS:
PONTIAC GRAND PRIX (2004-2008)
CHEVROLET MONTE CARLO (2006-2007)
