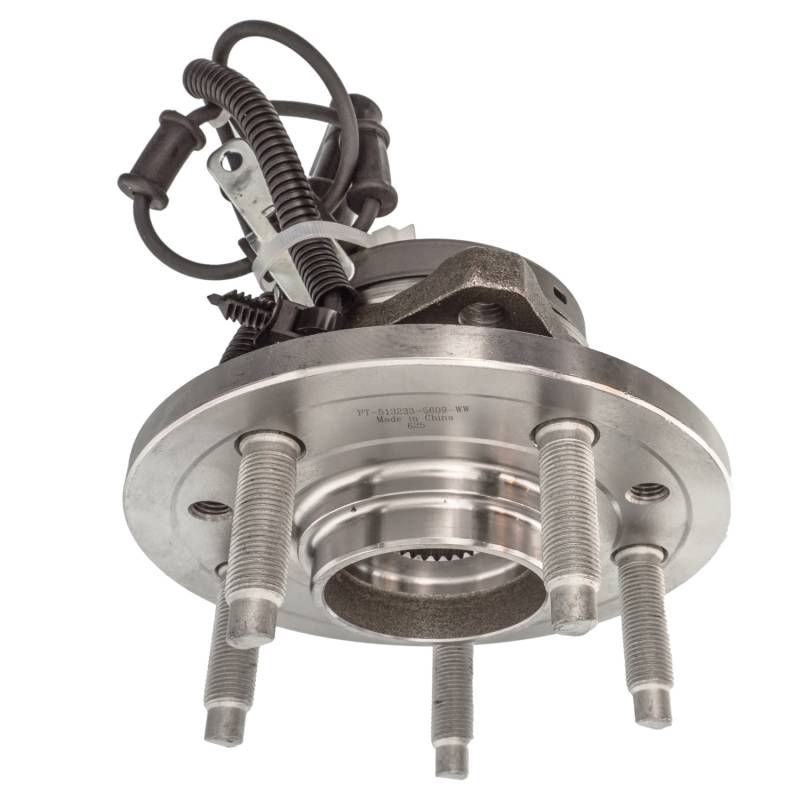

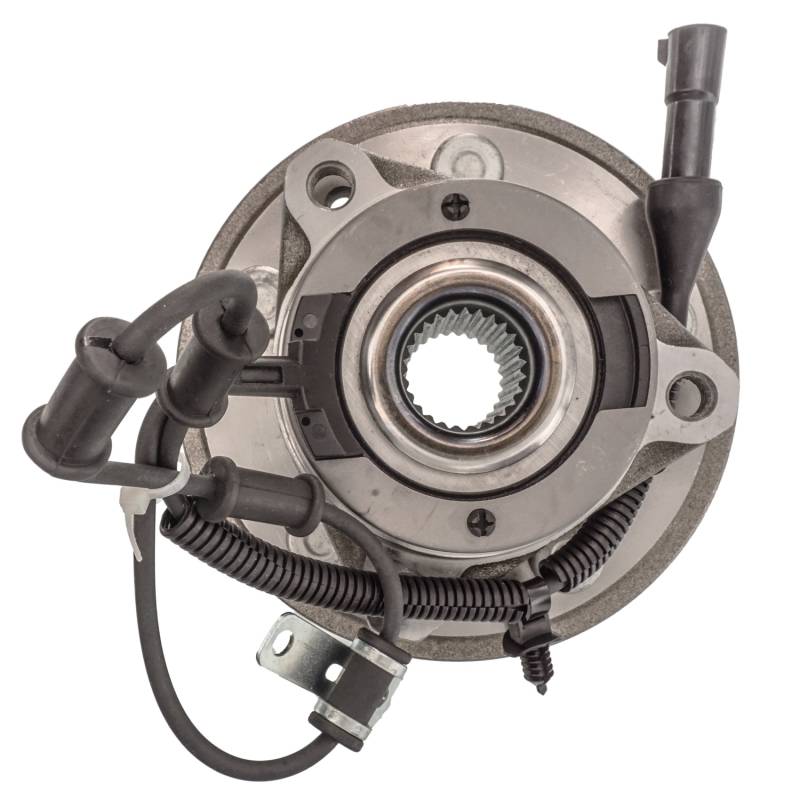

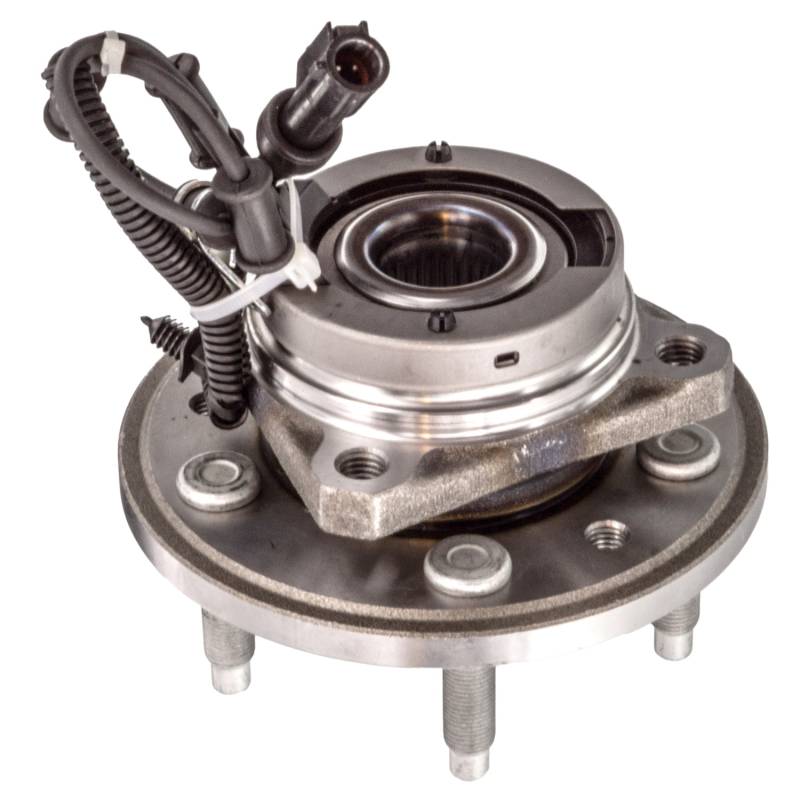

New Hub Assembly Compatible With Ford Mercury Freestar Monterey 3.9L 4.2L 2004 2005 2006 2007 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.827
FLANGE BOLT SIZE (MM): 46.4
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.795
FLANGE OFFSET (INCH): 1.634
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 6.142
HUB PILOT DIAMETER (INCH): 3.602
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 26
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 6.142
TOTAL HUB DIAMETER (MM): 156
TOTAL HUB HEIGHT (IN): 4.142
TOTAL HUB HEIGHT (MM): 105.2
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 27.559

REPLACES:
AUTOPART INTERNATIONAL: 1411-09868
BCA: WE61091
CENTRIC PARTS: 40261010
FAG US: 102049
GSP: 114233
MEVOTECH: H513233
MOOG HUB ASSEMBLIES: 513233
NAPA: PBR930465

APPLICATIONS:
FORD FREESTAR (2004-2007)
MERCURY MONTEREY (2004-2007)
