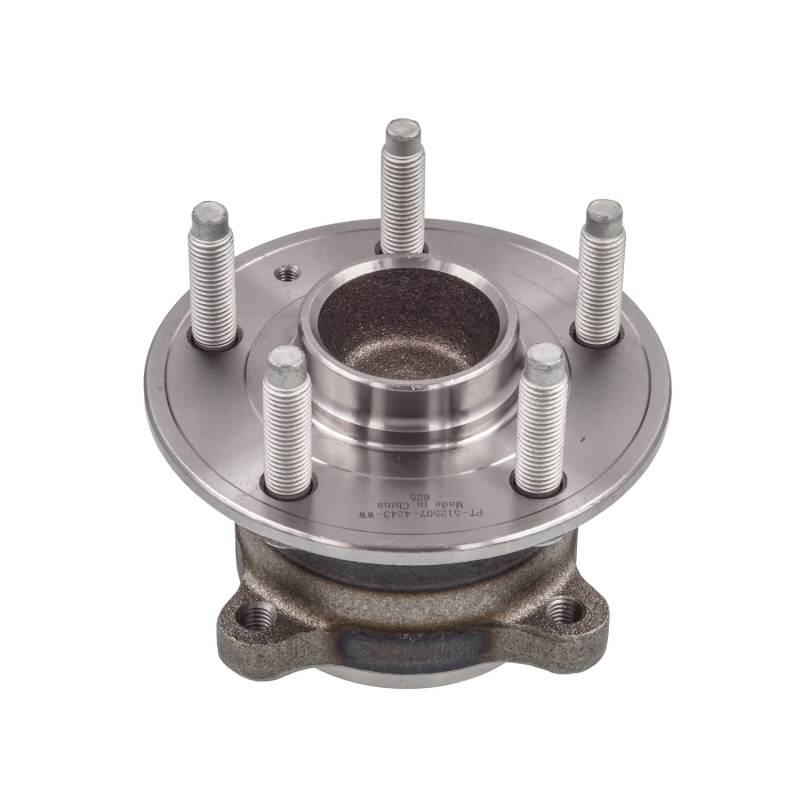

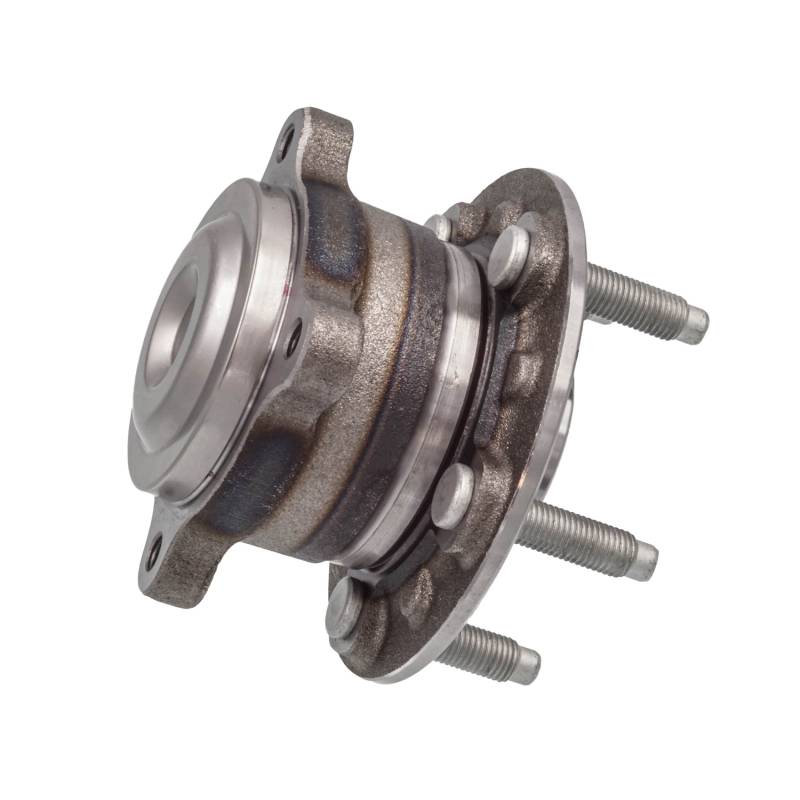

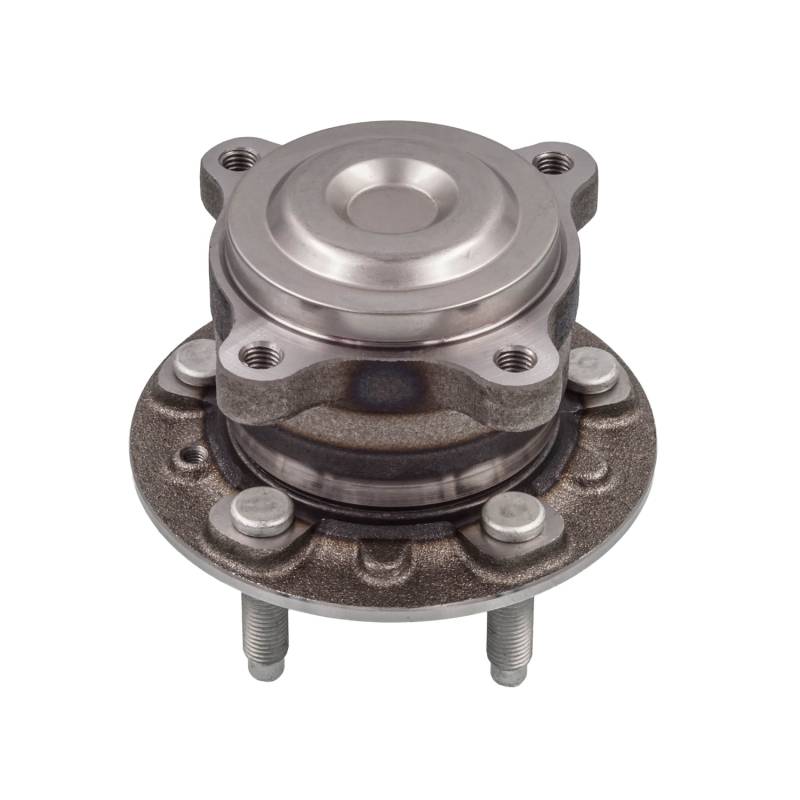

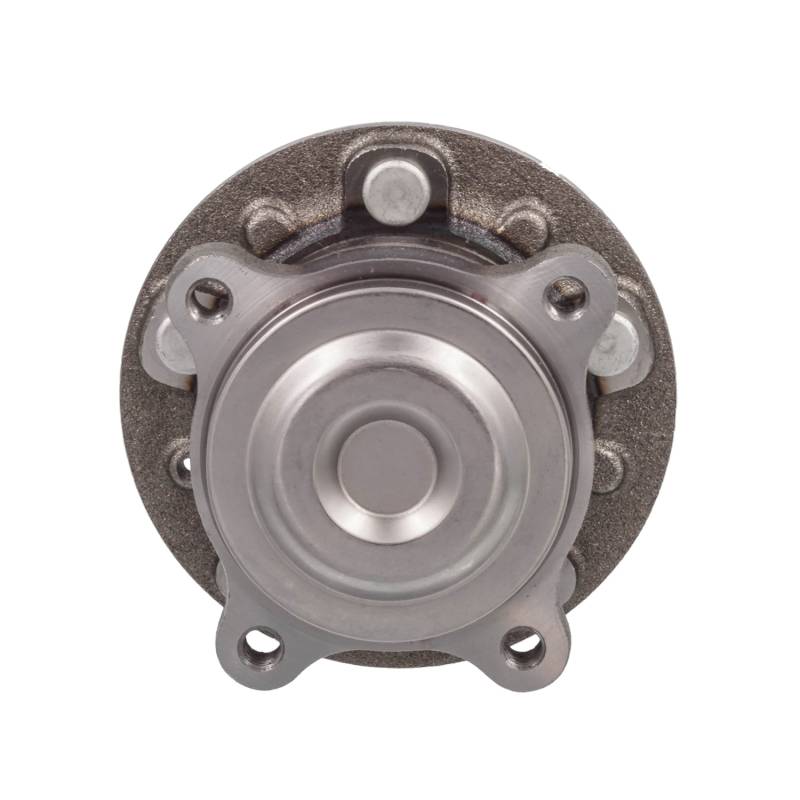

New Hub Assembly Compatible With Chevrolet Cruze Cruze Limited 1.4L 1.8L 2.0L 2013 2014 2015 2016 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

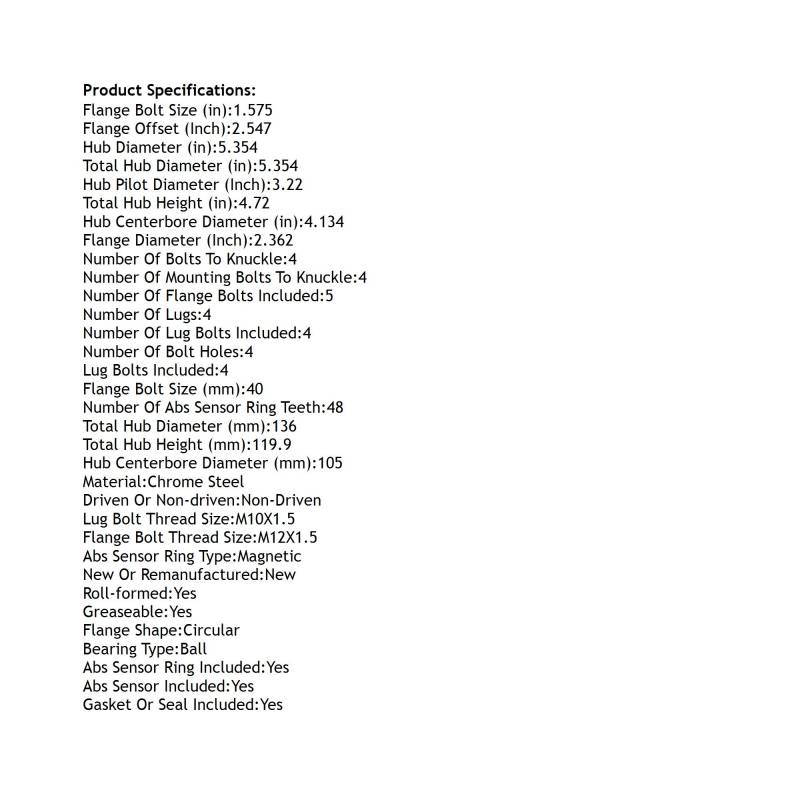

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.575
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.362
FLANGE OFFSET (INCH): 2.547
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.134
HUB CENTERBORE DIAMETER (MM): 105
HUB DIAMETER (IN): 5.354
HUB PILOT DIAMETER (INCH): 3.22
LUG BOLT THREAD SIZE: M10X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.354
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 4.72
TOTAL HUB HEIGHT (MM): 119.9

REPLACES:
AUTOPART INTERNATIONAL: 1411-547798
BCA: WE61647
CENTRIC PARTS: 40662003
FAG US: 103163
MEVOTECH: MB50309
MOOG HUB ASSEMBLIES: 512507
NAPA: PBR930860

APPLICATIONS:
CHEVROLET CRUZE (2013-2015)
CHEVROLET CRUZE LIMITED (2016-2016)
