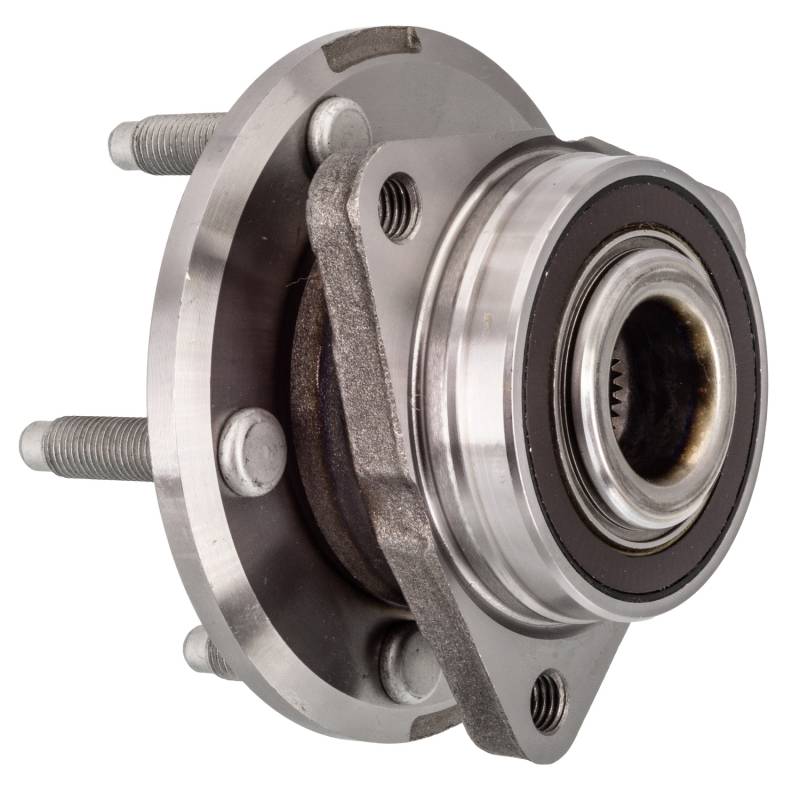

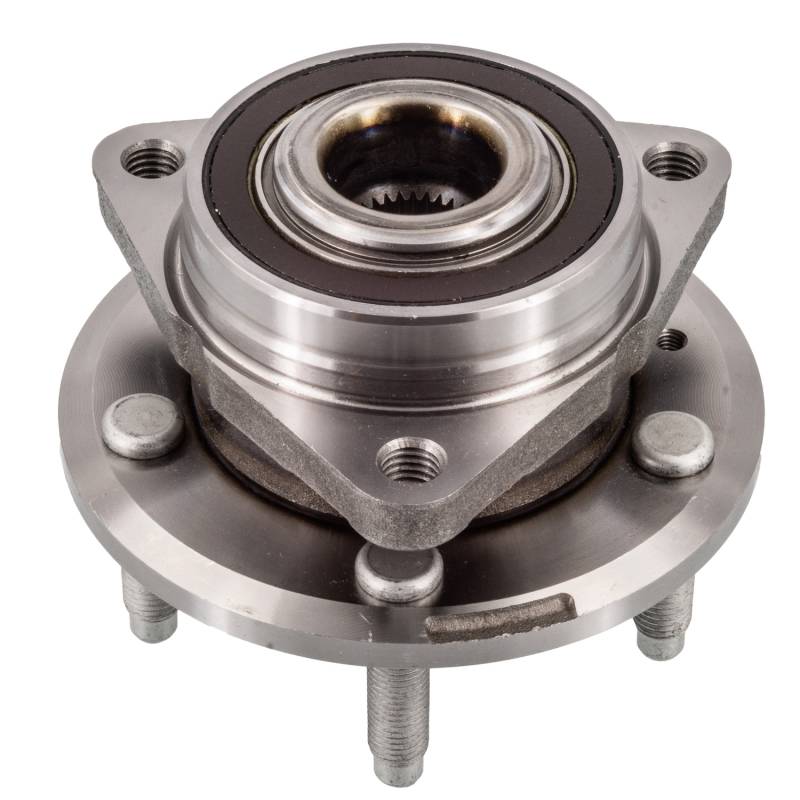

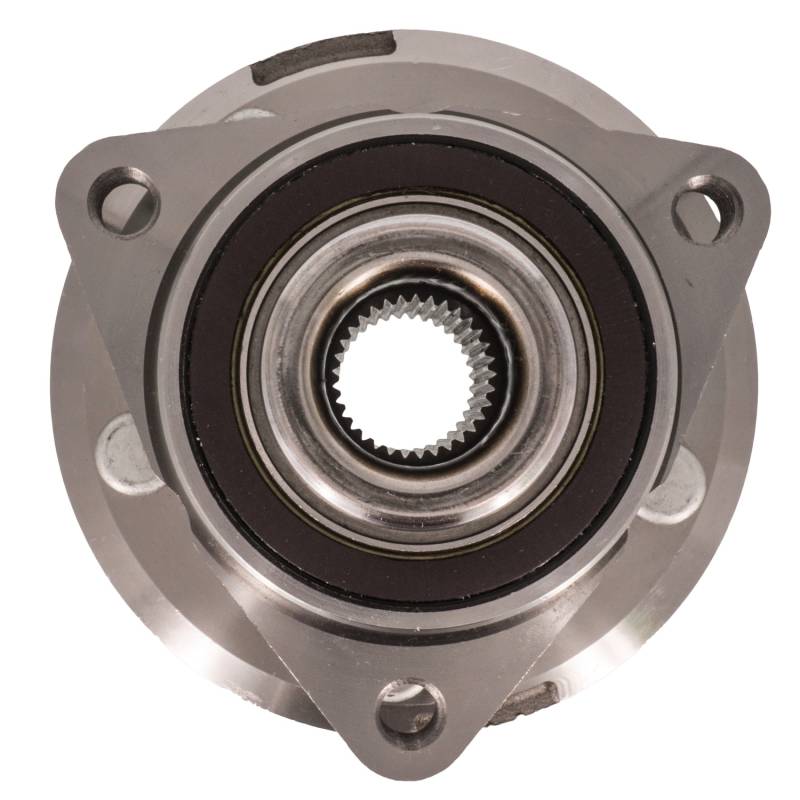

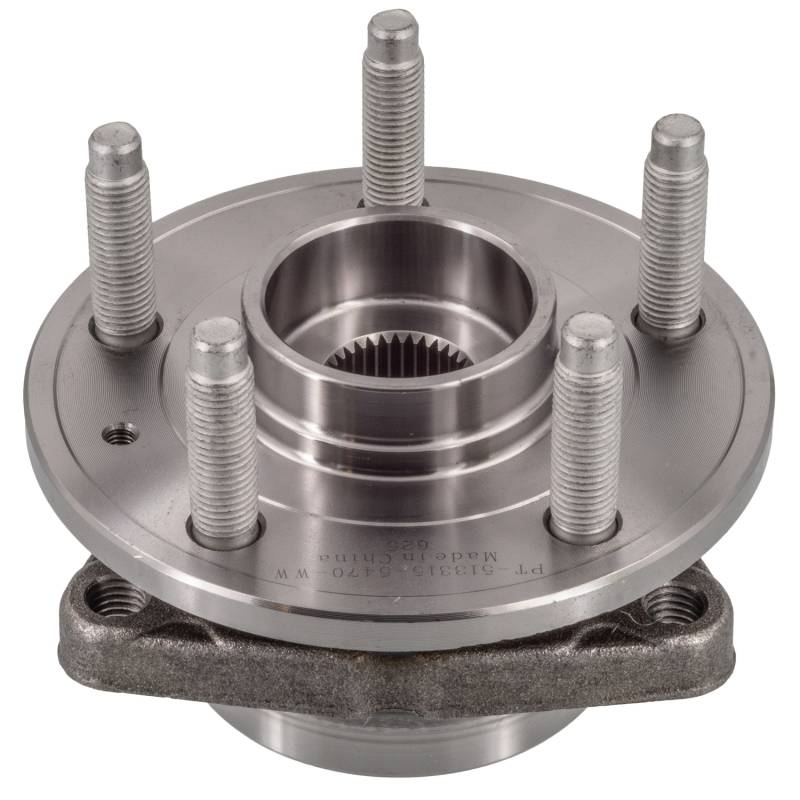

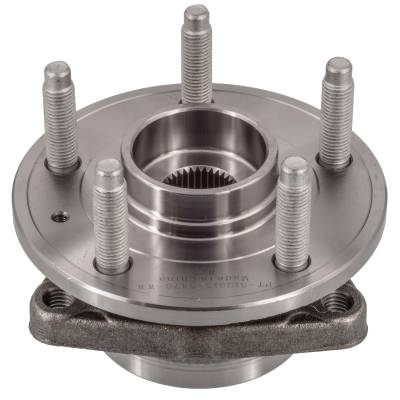

New Hub Assembly Compatible With Chevrolet Cruze Cruze Limited 1.4L 1.8L 2011 2012 2013 2014 2015

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

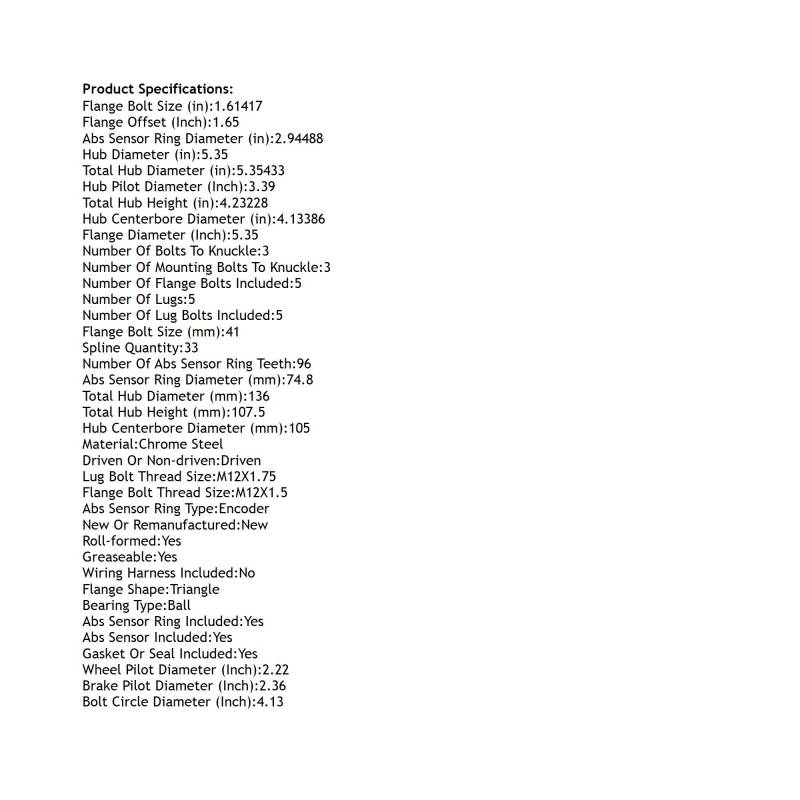

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.94488
ABS SENSOR RING DIAMETER (MM): 74.8
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.13
BRAKE PILOT DIAMETER (INCH): 2.36
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.61417
FLANGE BOLT SIZE (MM): 41
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 5.35
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: TRIANGLE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.13386
HUB CENTERBORE DIAMETER (MM): 105
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.39
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.35433
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 4.23228
TOTAL HUB HEIGHT (MM): 107.5
WHEEL PILOT DIAMETER (INCH): 2.22
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: 13585467 FW382
AUTOPART INTERNATIONAL: 1411-480967
BCA: WE61547
CENTRIC PARTS: 40162004
FAG US: 102307
GSP: 104315
MEVOTECH: H513315
MOOG HUB ASSEMBLIES: 513315
NAPA: PBR930815

APPLICATIONS:
CHEVROLET CRUZE (2011-2015)
CHEVROLET CRUZE LIMITED (2016-2016)
