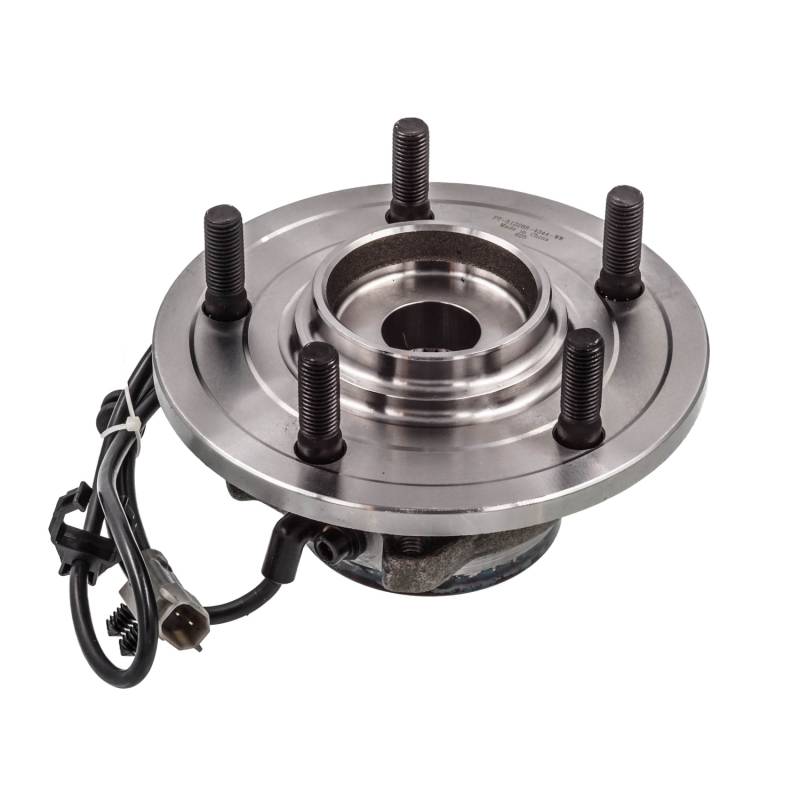

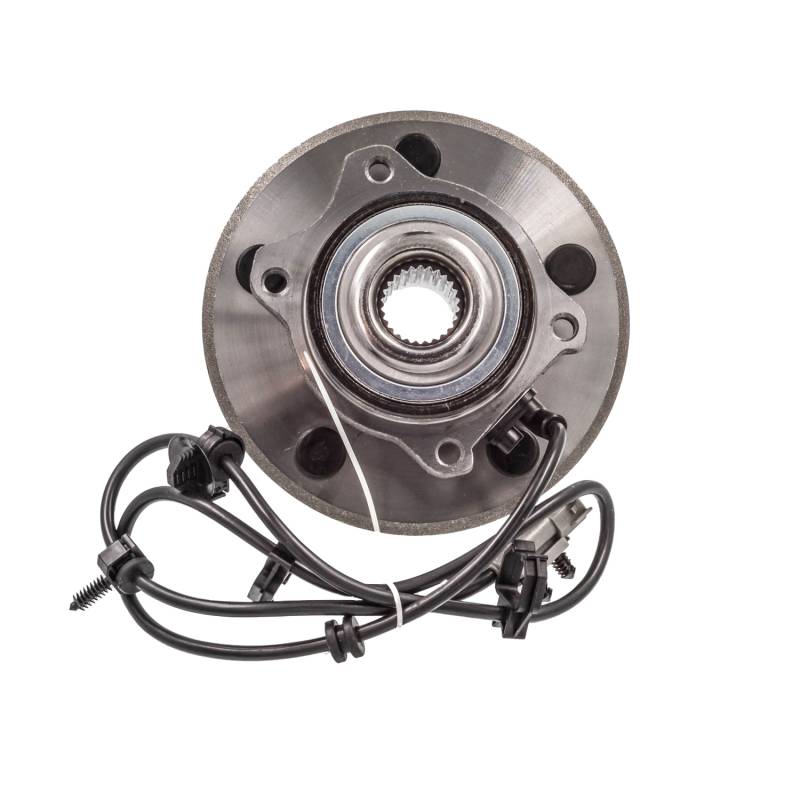

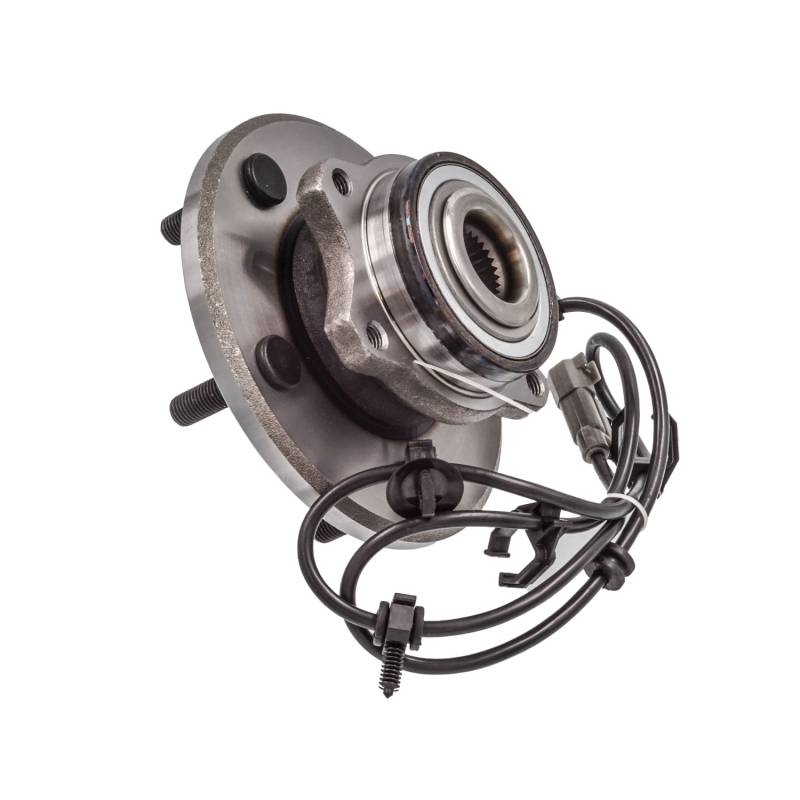

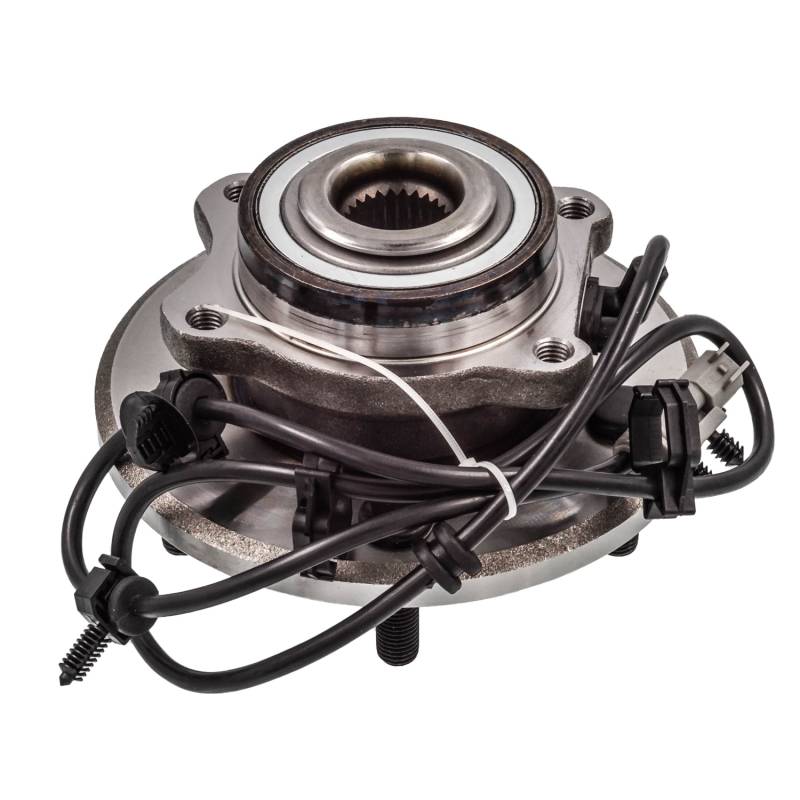

New Hub Assembly Compatible With Chrysler Pacifica 3.5L 3.8L 2004 2005 2006 By Part Numbers Ha590209

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OCTAGON
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.34
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.22
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.59
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 26
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.59
TOTAL HUB DIAMETER (MM): 167
TOTAL HUB HEIGHT (IN): 4.24
TOTAL HUB HEIGHT (MM): 107
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 41.938

REPLACES:
AUTOPART INTERNATIONAL: 1411-44706
BCA: WE60483
CENTRIC PARTS: 40263000
FAG US: 102115
GSP: 123288
MEVOTECH: H512288
MOOG HUB ASSEMBLIES: 512288
NAPA: PBR930356

APPLICATIONS:
CHRYSLER PACIFICA (2004-2006)
