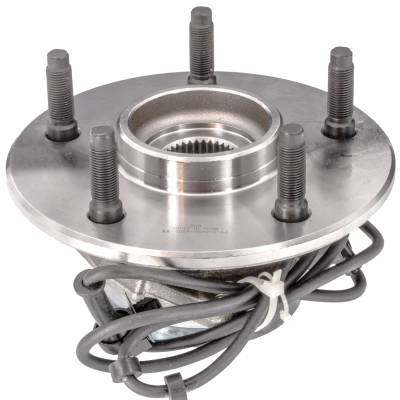

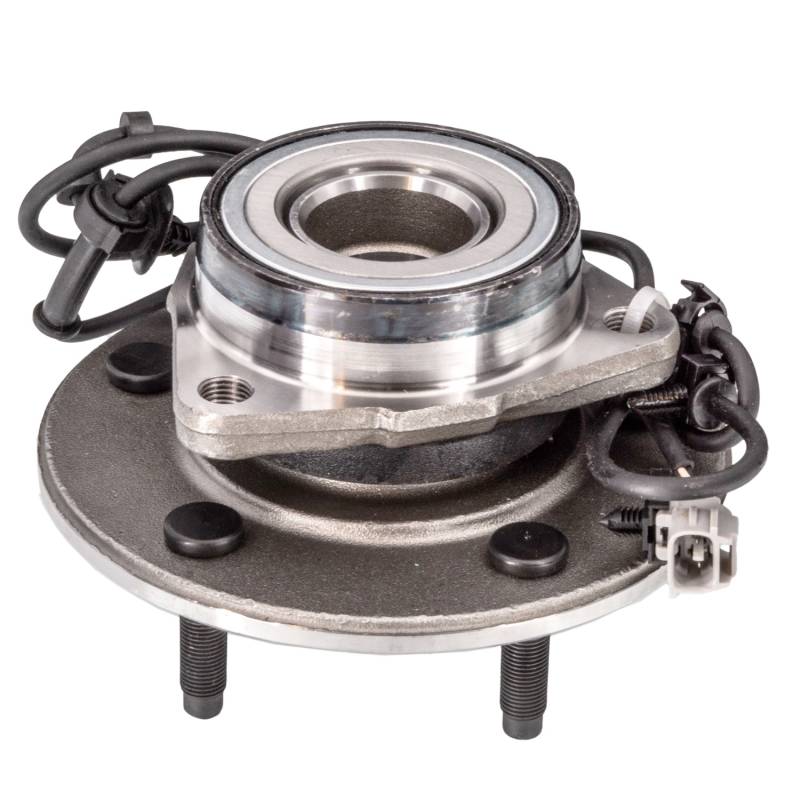

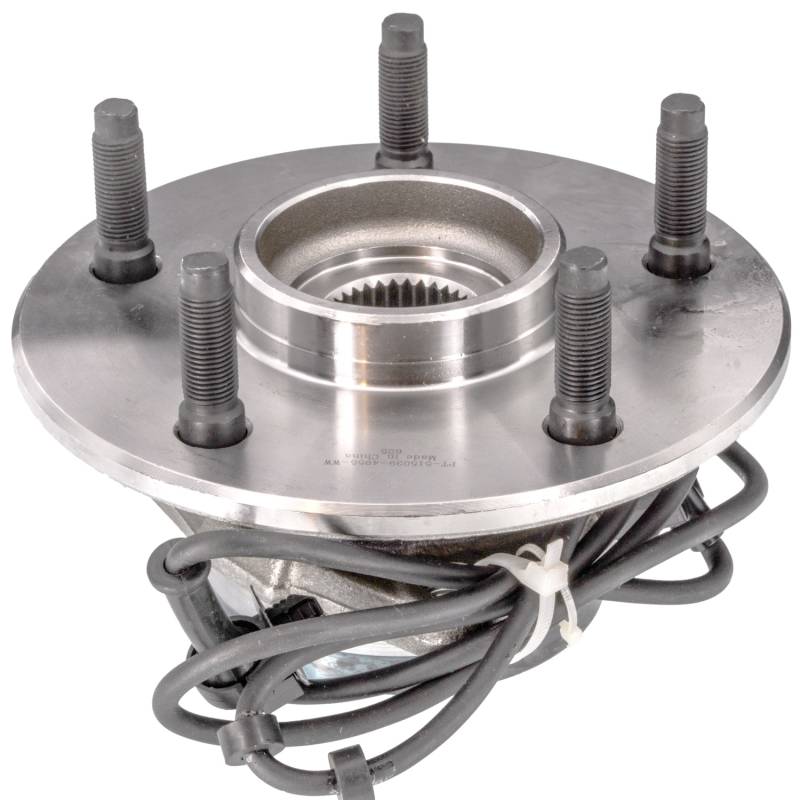

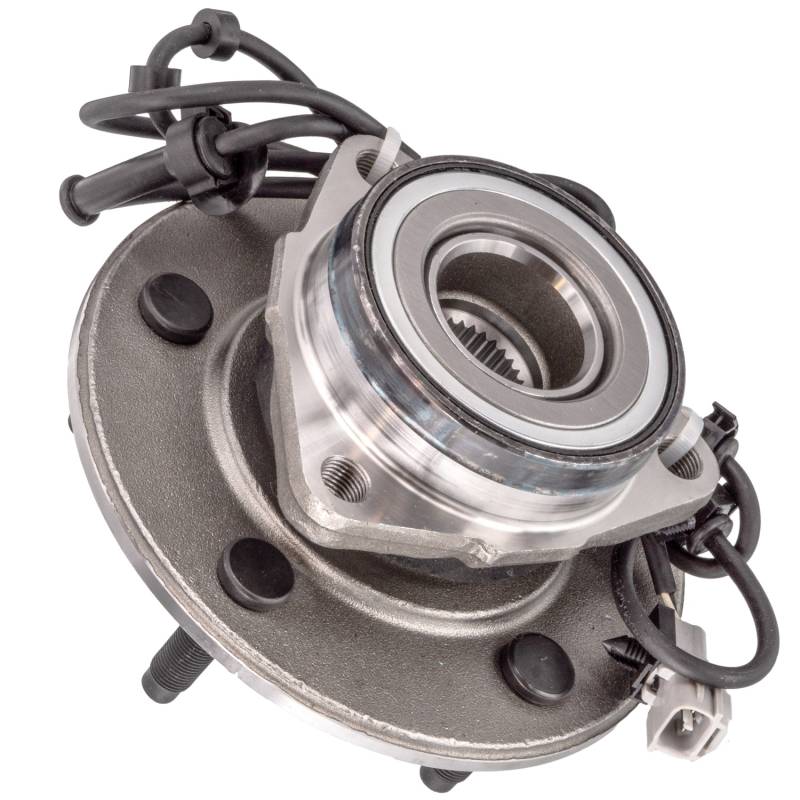

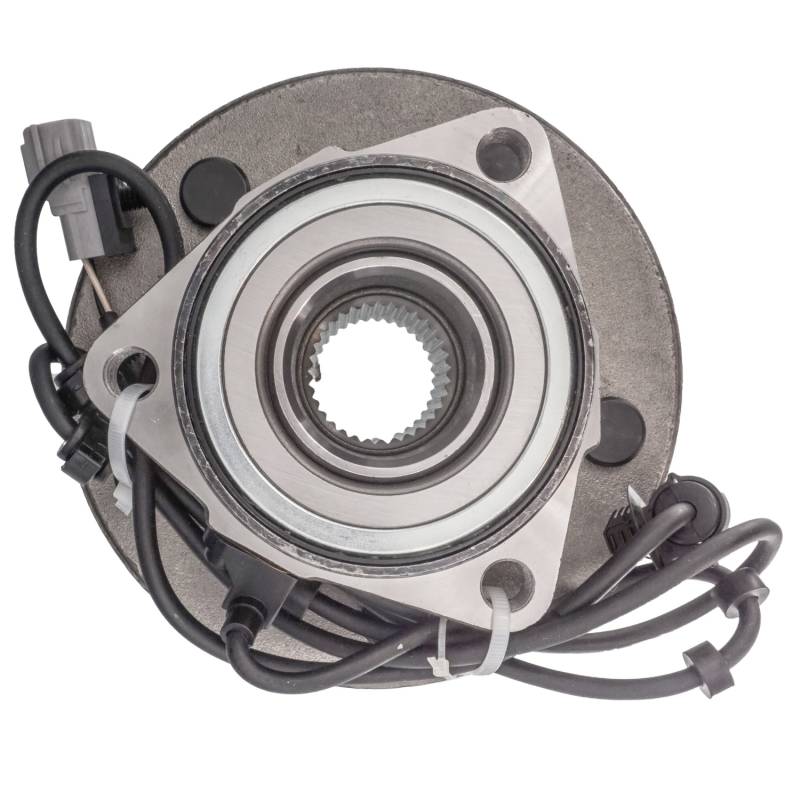

New Hub Assembly Compatible With Dodge Ram 1500 Van Ram 1500 3.9L 5.2L 5.9L 2000 2001 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.681
FLANGE BOLT SIZE (MM): 42.7
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 3.085
FLANGE OFFSET (INCH): 198.268
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.205
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.205
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.717
TOTAL HUB HEIGHT (MM): 119.8
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 64.331

REPLACES:
AUTOPART INTERNATIONAL: 1411-49134
BCA: WE61362
CENTRIC PARTS: 40267006E
FAG US: 101997
GSP: 126039
MEVOTECH: H515039
MOOG HUB ASSEMBLIES: 515039
NAPA: PBR930305

APPLICATIONS:
DODGE RAM 1500 VAN (2000-2001)
DODGE RAM 1500 (2000-2001)
