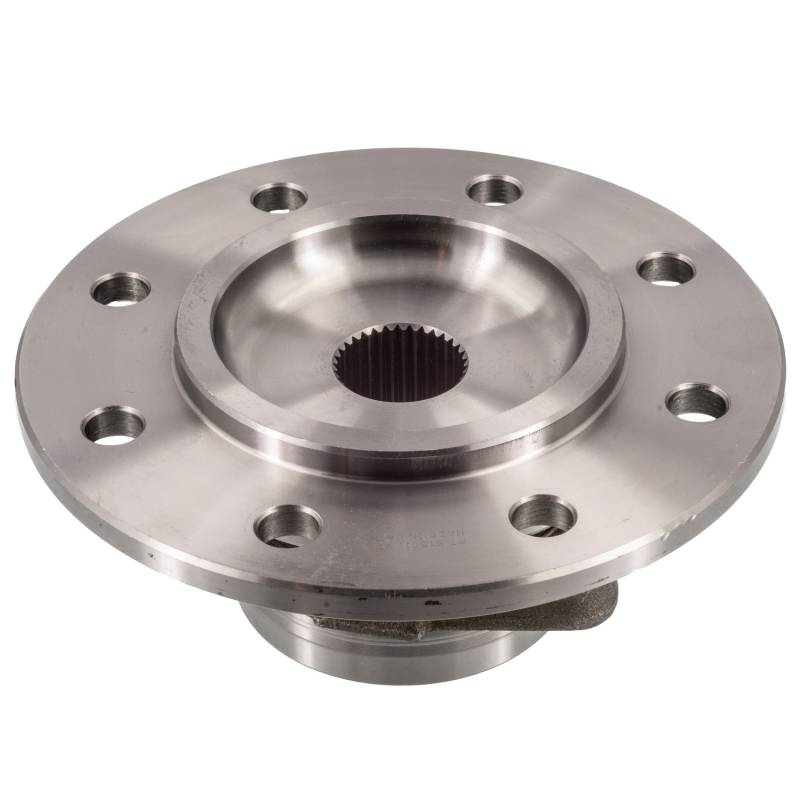

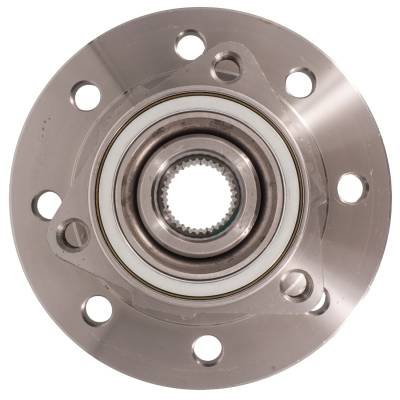

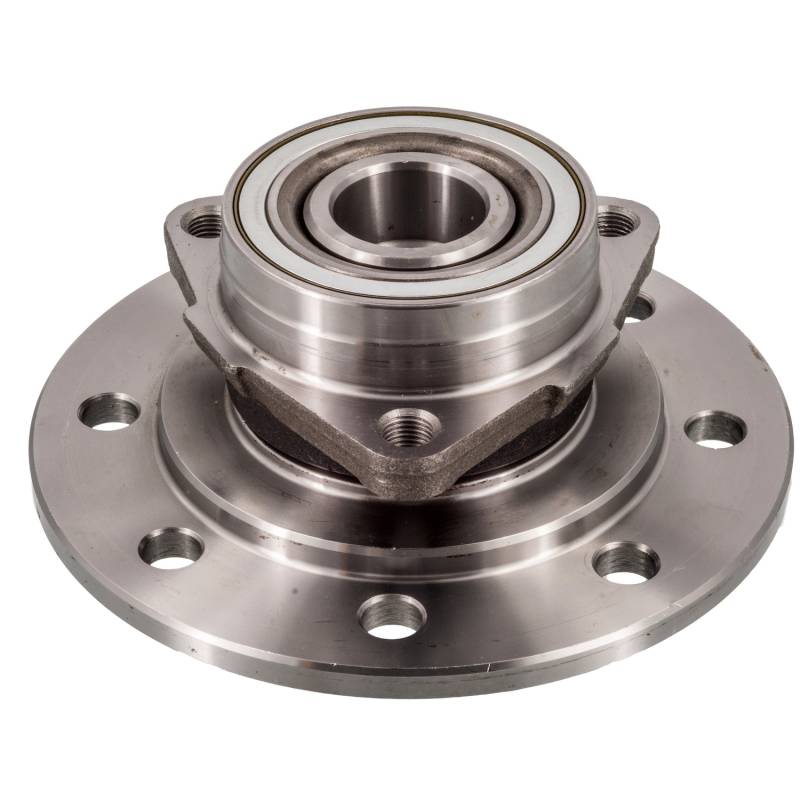

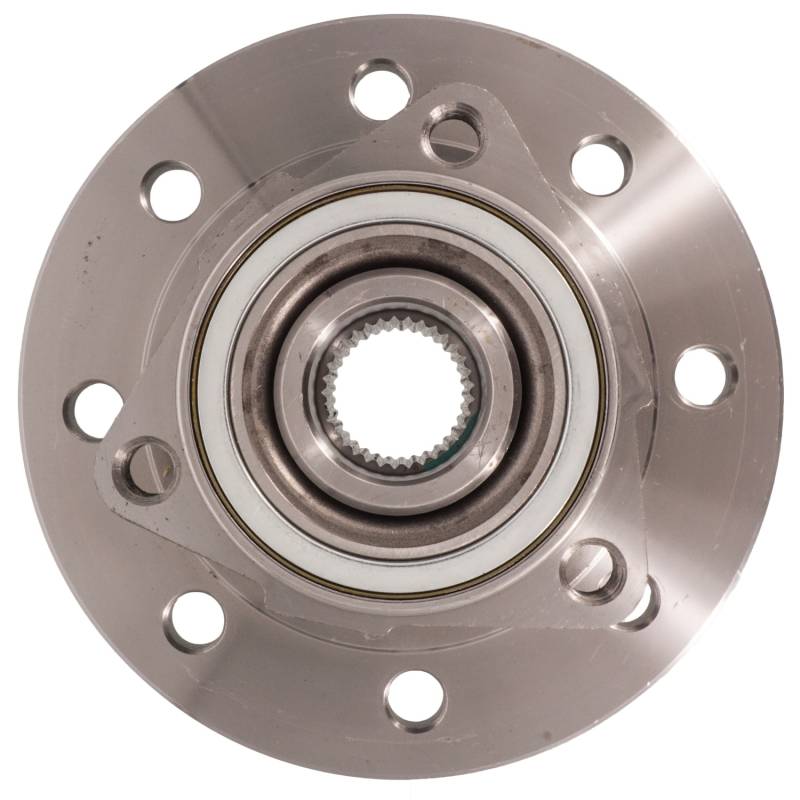

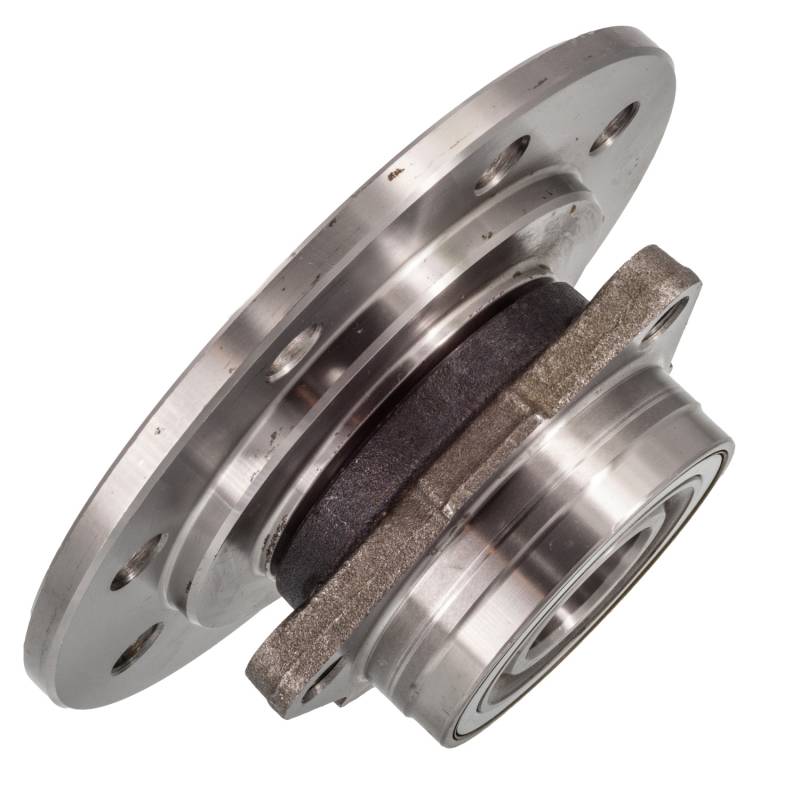

New Hub Assembly Compatible With Dodge Ram 2500 Ram 2500 Van 5.2L 5.9L 8.0L 1994 1995 1996 1997 1998

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

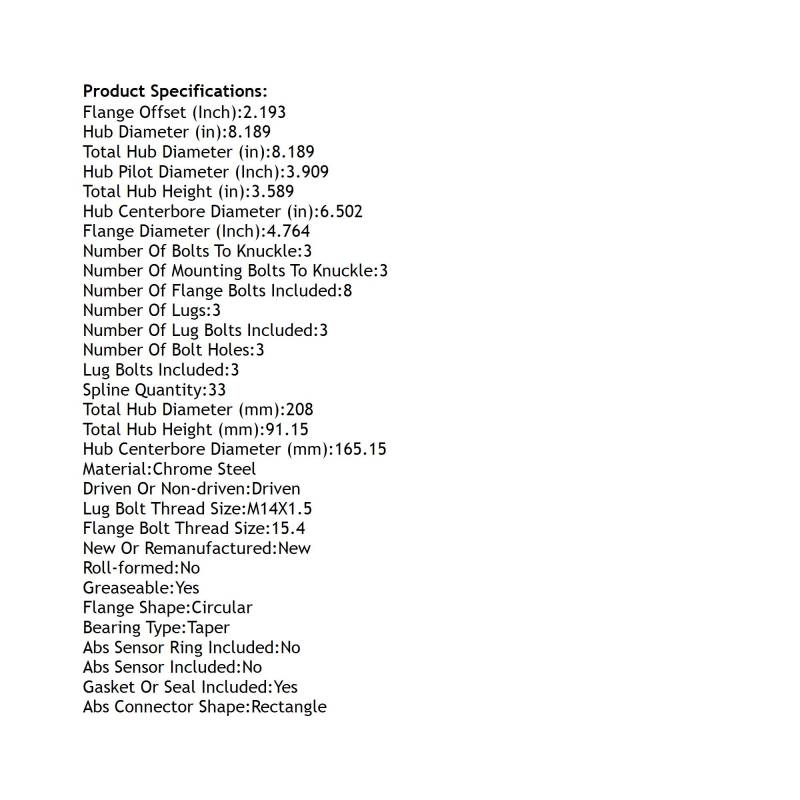

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: 15.4
FLANGE DIAMETER (INCH): 4.764
FLANGE OFFSET (INCH): 2.193
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.502
HUB CENTERBORE DIAMETER (MM): 165.15
HUB DIAMETER (IN): 8.189
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 8.189
TOTAL HUB DIAMETER (MM): 208
TOTAL HUB HEIGHT (IN): 3.589
TOTAL HUB HEIGHT (MM): 91.15

REPLACES:
AUTOPART INTERNATIONAL: 1411-44763
BCA: WE61552
CENTRIC PARTS: 40067008E
FAG US: 101980
GSP: 126011
MEVOTECH: H515011
MOOG HUB ASSEMBLIES: 515011
NAPA: PBR930400

APPLICATIONS:
DODGE RAM 2500 (1994-1999)
DODGE RAM 2500 VAN (1996-1999)
