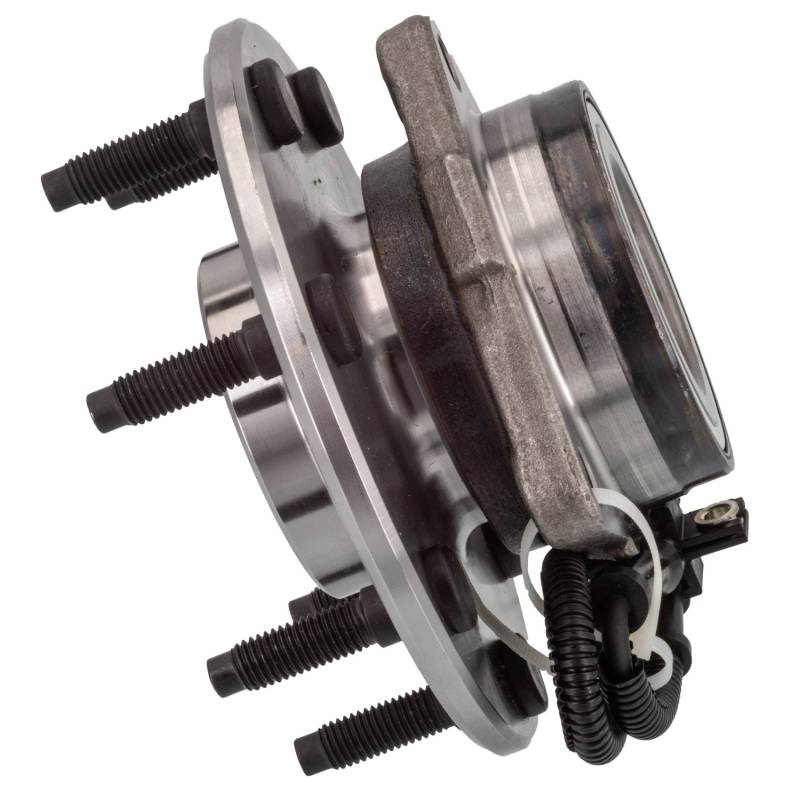

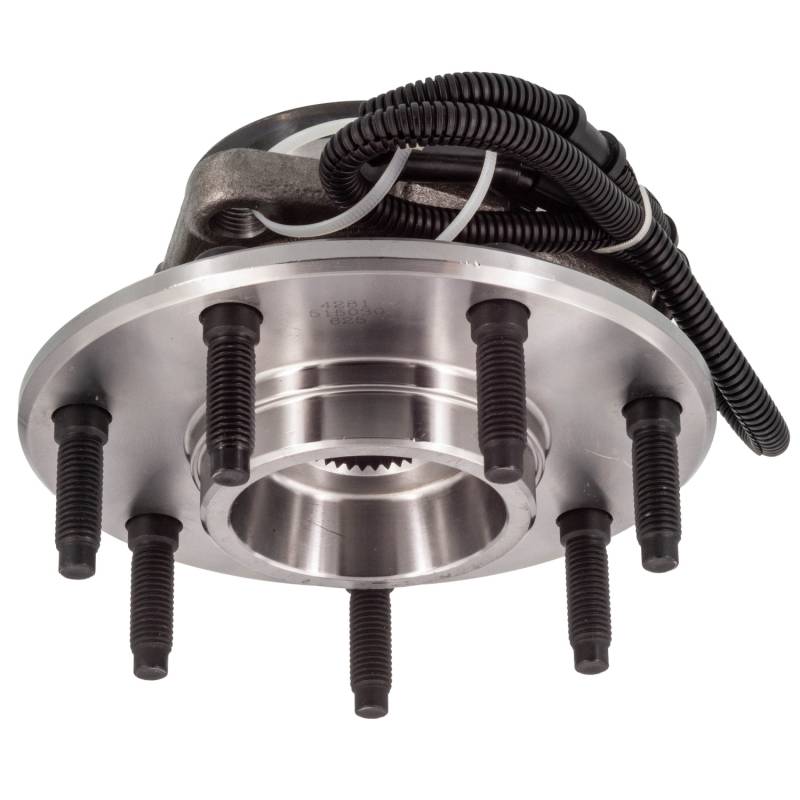

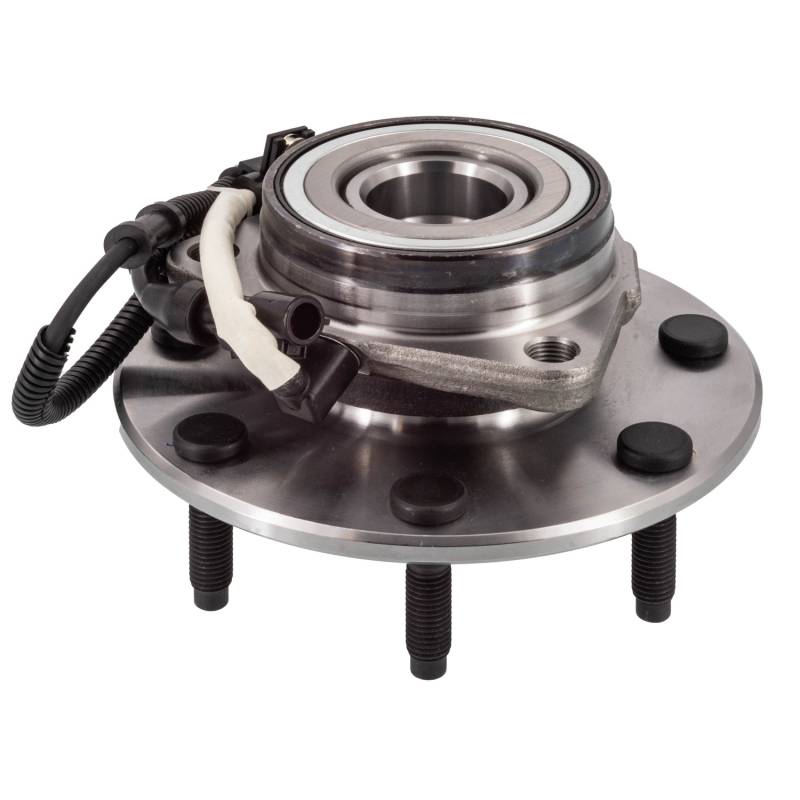

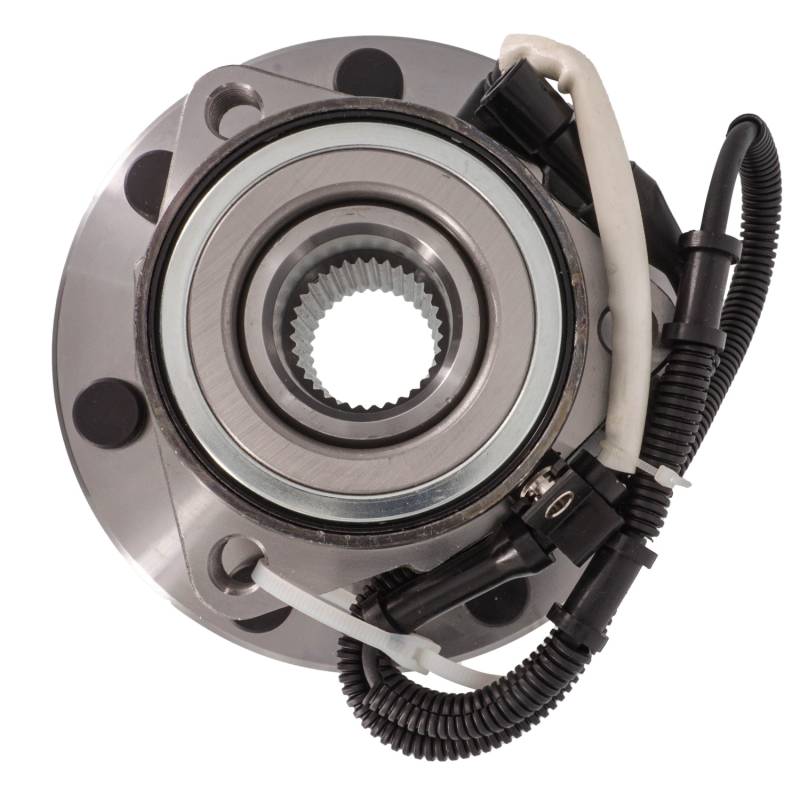

New Front Hub Assembly Compatible With Ford F-150 2000 2001 2002 2003 F-150 Heritage 2004 F-250 1997

PRODUCT TYPE: HUB ASSEMBLY

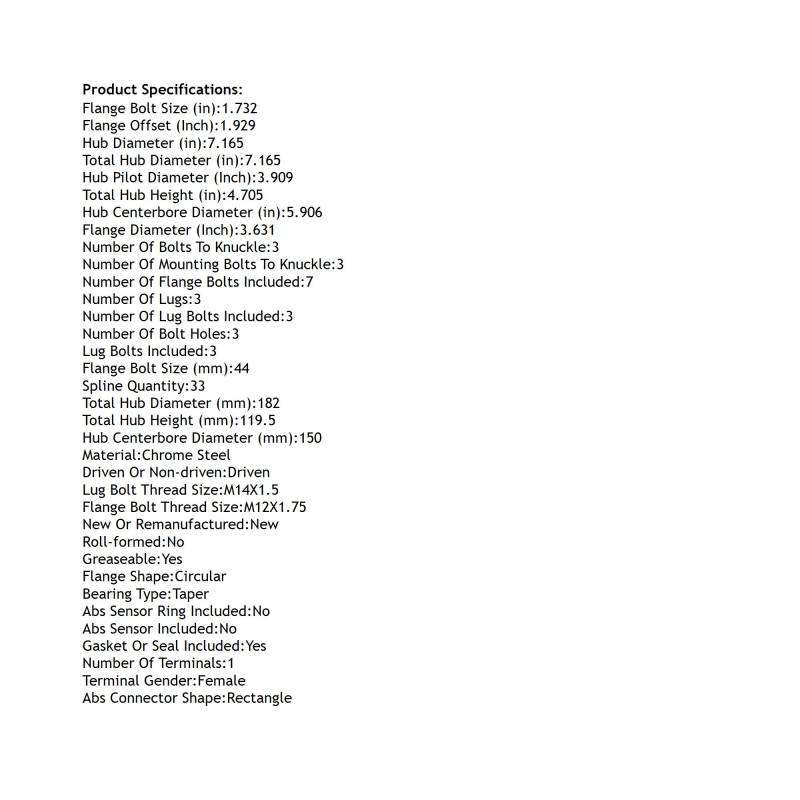

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.732
FLANGE BOLT SIZE (MM): 44
FLANGE BOLT THREAD SIZE: M12X1.75
FLANGE DIAMETER (INCH): 3.631
FLANGE OFFSET (INCH): 1.929
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.906
HUB CENTERBORE DIAMETER (MM): 150
HUB DIAMETER (IN): 7.165
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 7
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.165
TOTAL HUB DIAMETER (MM): 182
TOTAL HUB HEIGHT (IN): 4.705
TOTAL HUB HEIGHT (MM): 119.5

REPLACES:
AUTOPART INTERNATIONAL: 1411-44828
BCA: WE60937
CENTRIC PARTS: 40265000
FAG US: 101991
FORD: 1L3Z1104BA
GSP: 116030
MEVOTECH: H515030
MOOG HUB ASSEMBLIES: 515030
MOTORCRAFT: HUB107
NAPA: PBR930419

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

FORD F-150 2000–2003 4-WHEEL ABS 4WD
FORD F-150 HERITAGE 2004 4-WHEEL ABS 4WD
FORD F-250 1997–1999 4-WHEEL ABS 4WD
