THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

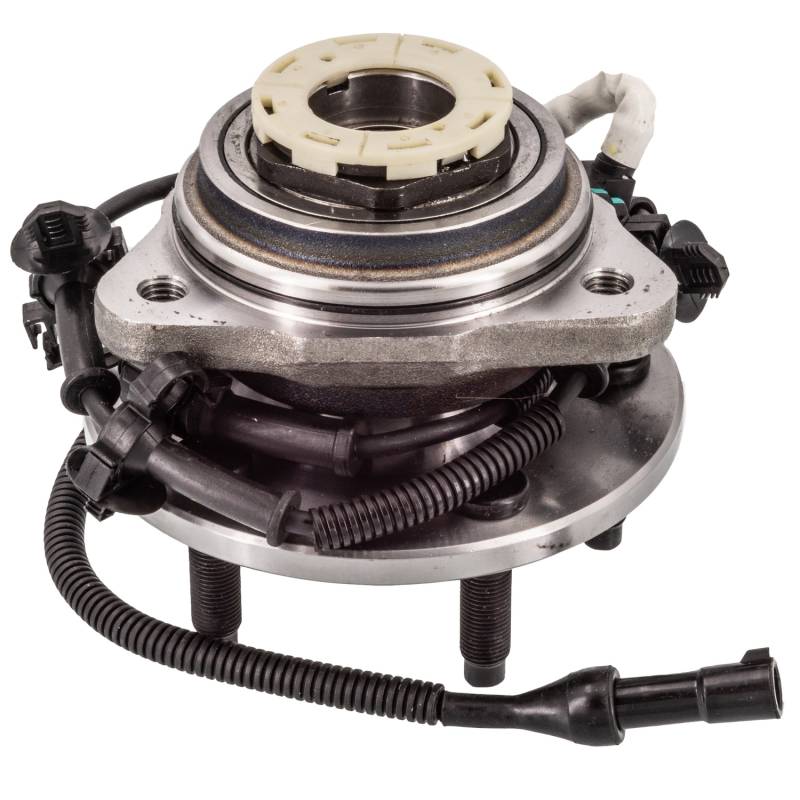

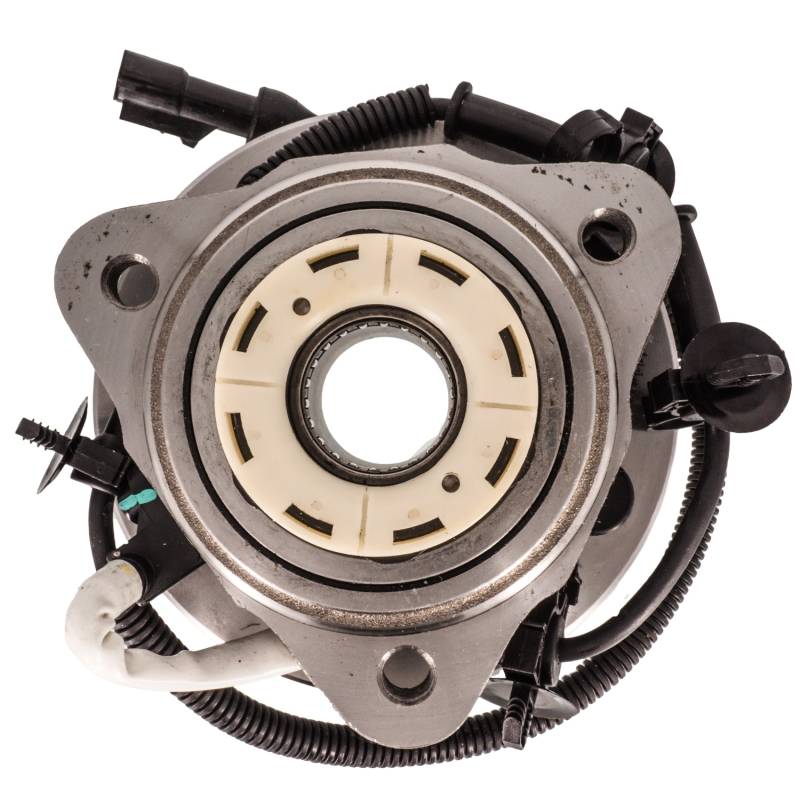

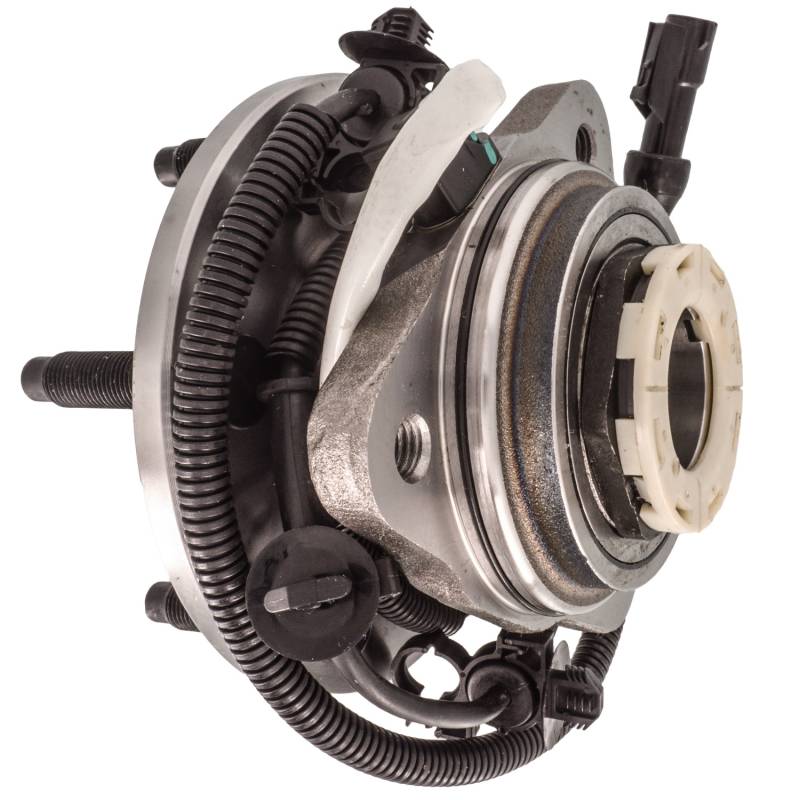

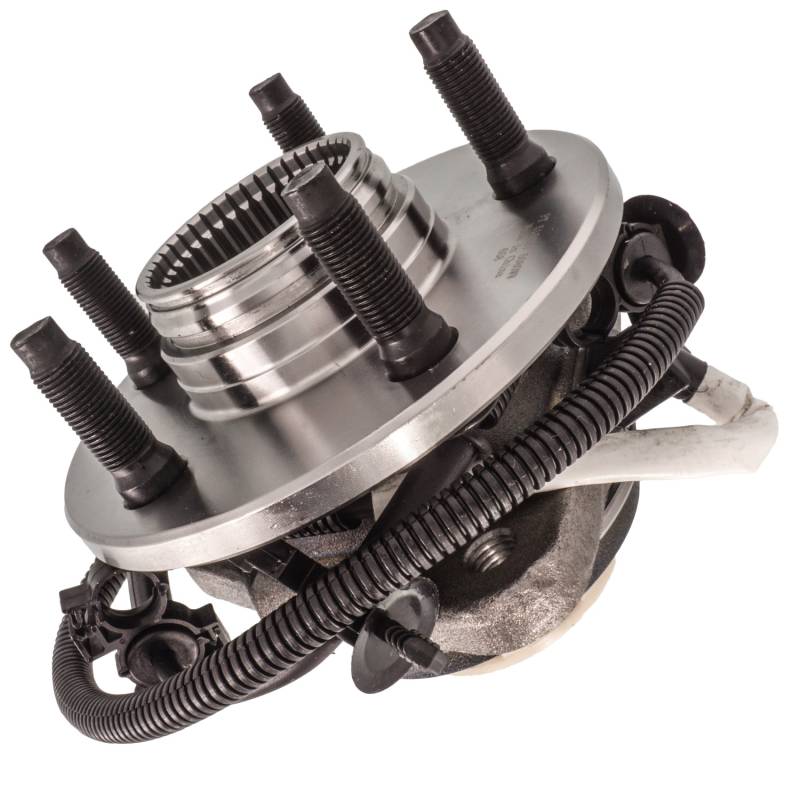

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.673
FLANGE BOLT SIZE (MM): 42.5
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.831
FLANGE OFFSET (INCH): 2.213
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.878
HUB PILOT DIAMETER (INCH): 3.941
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 42
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.878
TOTAL HUB DIAMETER (MM): 149.3
TOTAL HUB HEIGHT (IN): 5.276
TOTAL HUB HEIGHT (MM): 134
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 48.425
REPLACES:
AUTOPART INTERNATIONAL: 1411-44858
BCA: WE61559
CENTRIC PARTS: 40265026E
FAG US: 101989
FORD: G2MZ 1104 AA
GSP: 116027
MEVOTECH: H515027
MOOG HUB ASSEMBLIES: 515027
MOTORCRAFT: NHUB26
NAPA: PBR930342
APPLICATIONS:
FORD RANGER (1998-2000)
MAZDA B4000 (1998-2000)
