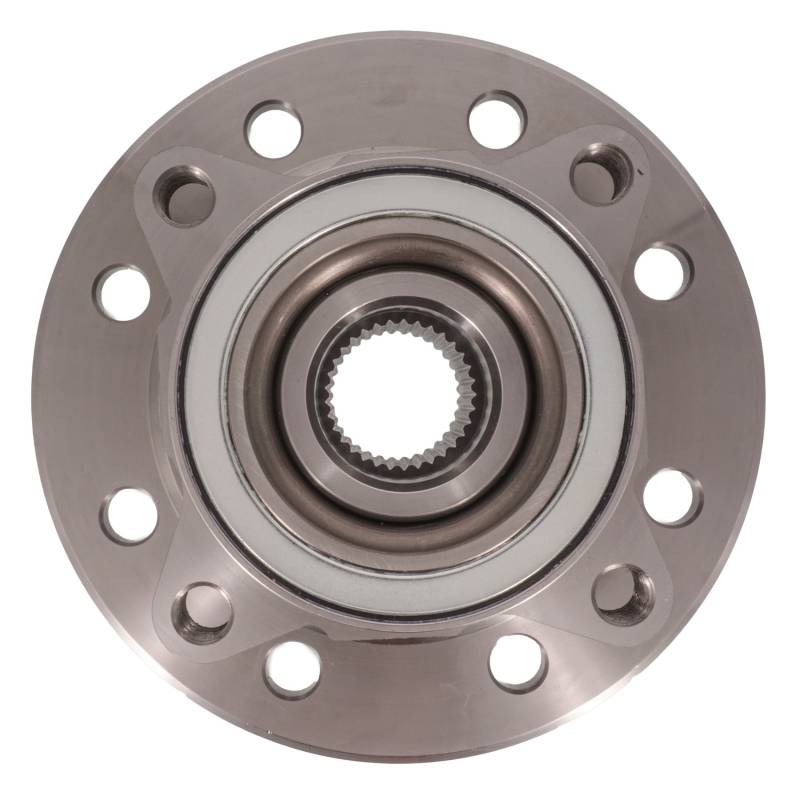

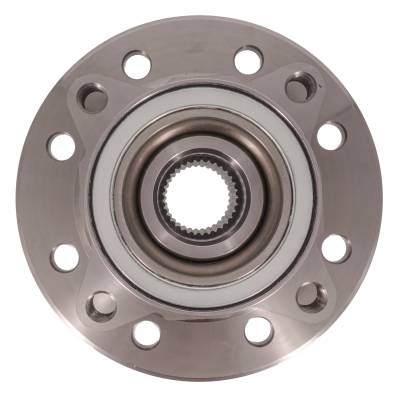

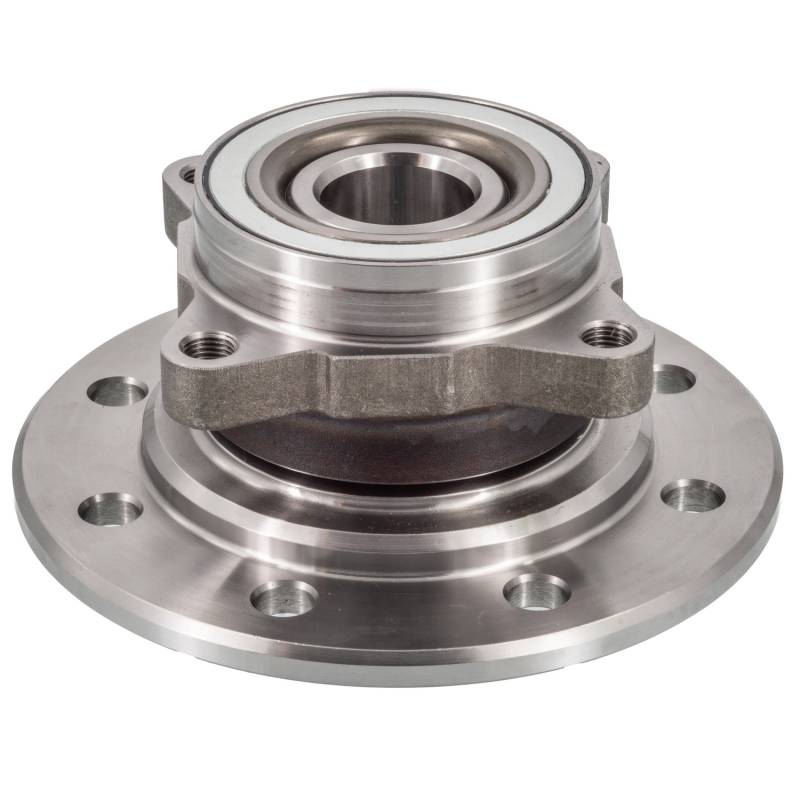

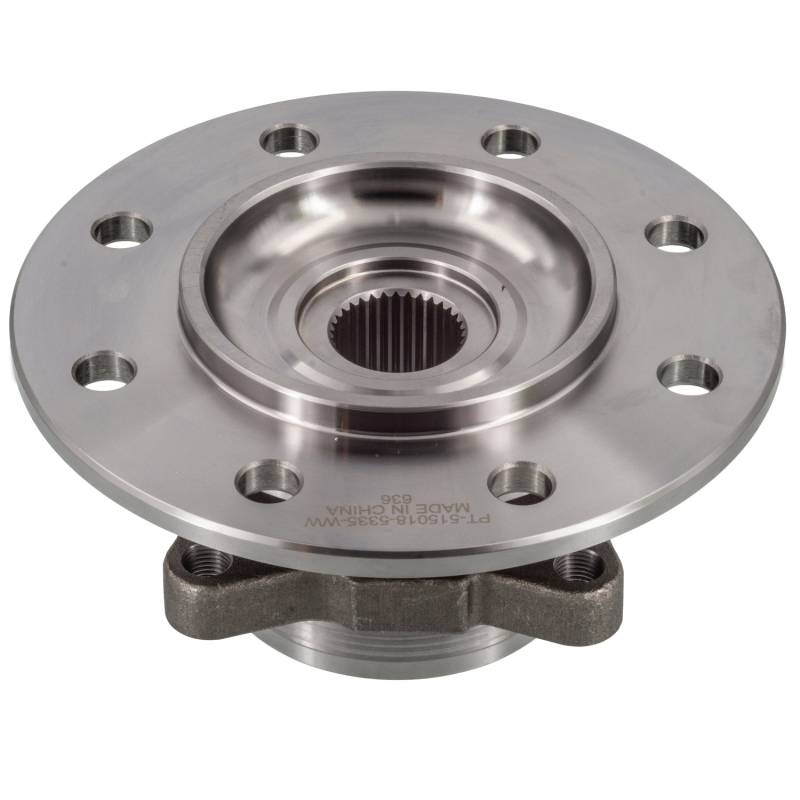

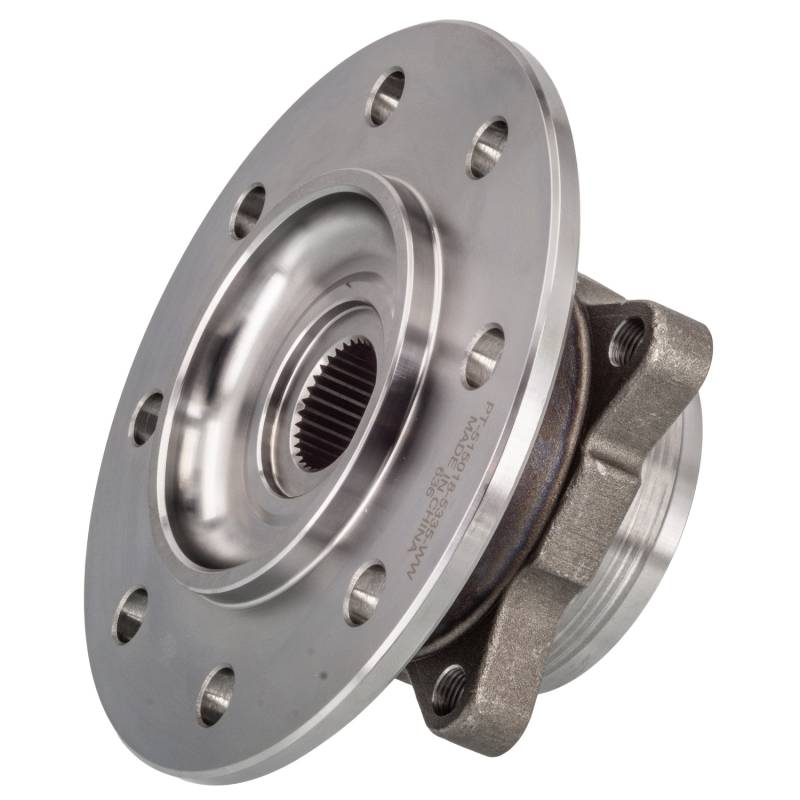

New Hub Assembly Compatible With Chevrolet Gmc K2500 K3500 K2500 Suburban 1988 1989 1990 1991 1992

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

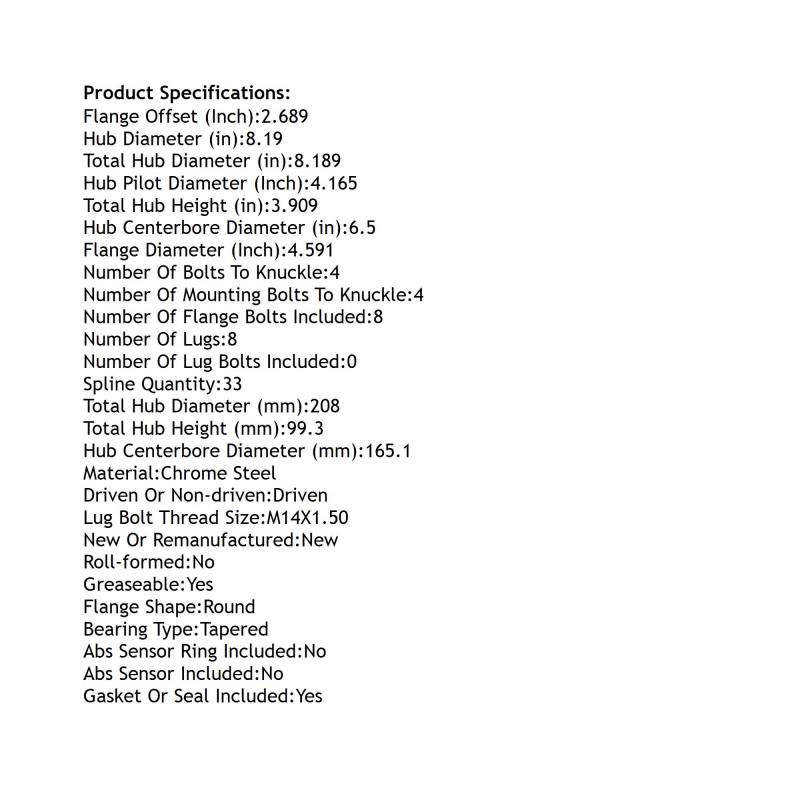

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE DIAMETER (INCH): 4.591
FLANGE OFFSET (INCH): 2.689
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 8.19
HUB PILOT DIAMETER (INCH): 4.165
LUG BOLT THREAD SIZE: M14X1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 8.189
TOTAL HUB DIAMETER (MM): 208
TOTAL HUB HEIGHT (IN): 3.909
TOTAL HUB HEIGHT (MM): 99.3

REPLACES:
AUTOPART INTERNATIONAL: 1411-49155
BCA: WE61561
CENTRIC PARTS: 40066003E
FAG US: 102176
GSP: 106018
MEVOTECH: H515018
MOOG HUB ASSEMBLIES: 515018
NAPA: PBR930406

APPLICATIONS:
CHEVROLET K2500 (1988-1994)
CHEVROLET K3500 (1988-1994)
GMC K2500 (1988-1994)
GMC K3500 (1988-1994)
CHEVROLET K2500 SUBURBAN (1992-1994)
GMC K2500 SUBURBAN (1992-1994)
