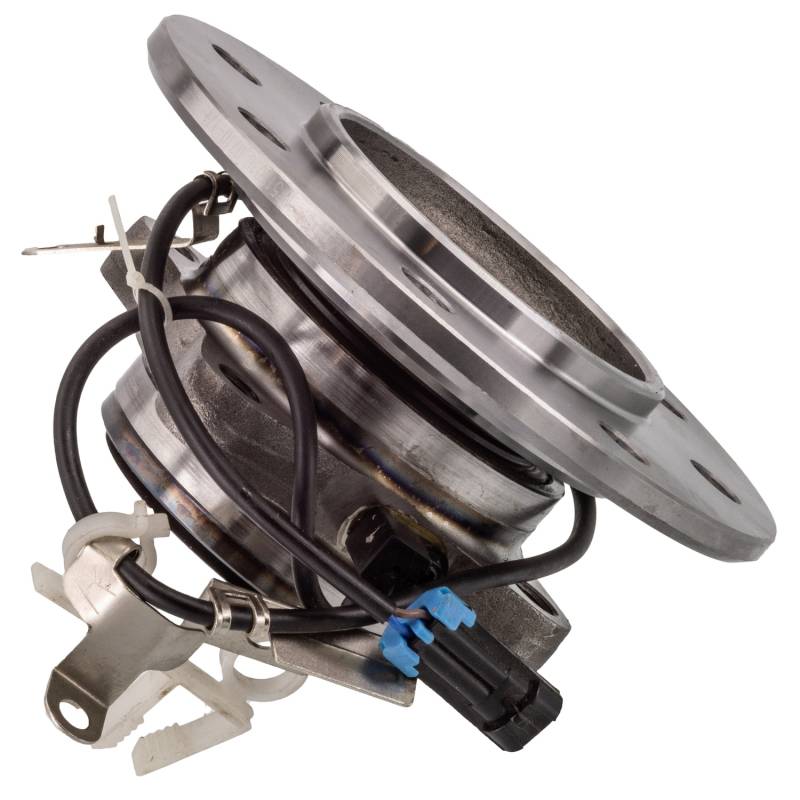

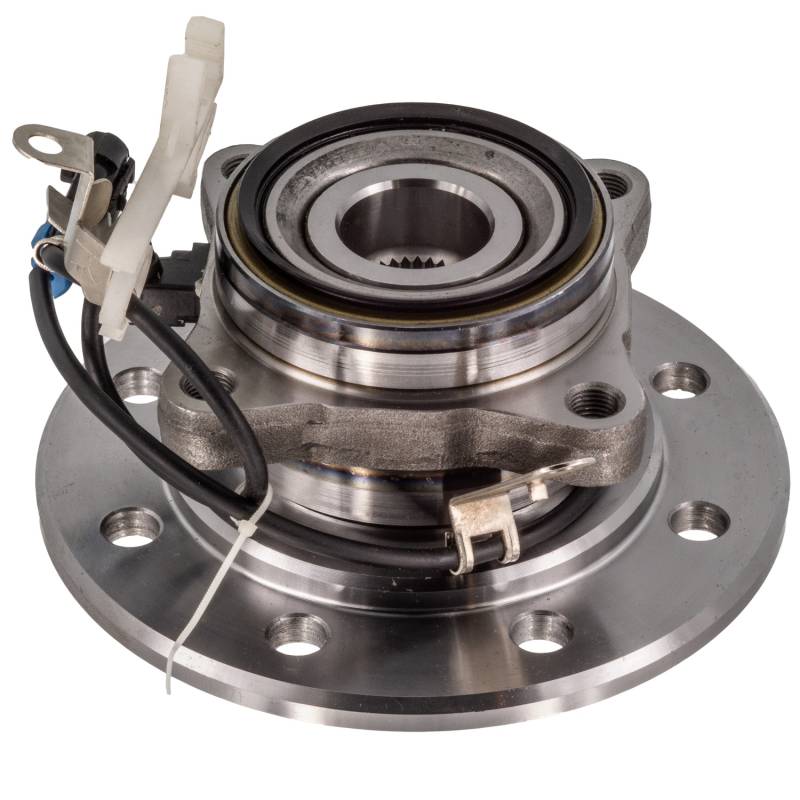

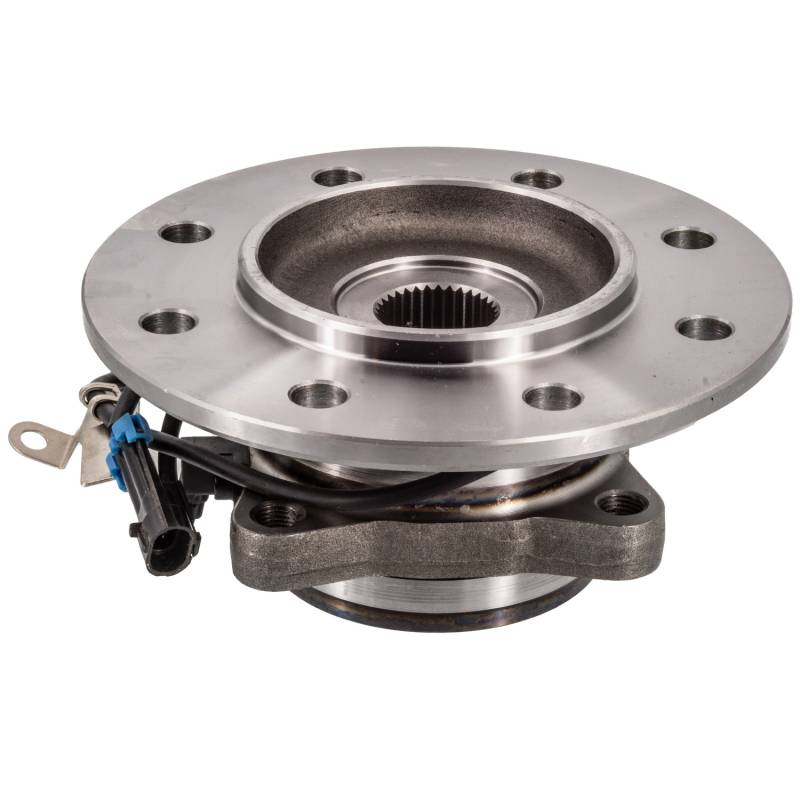

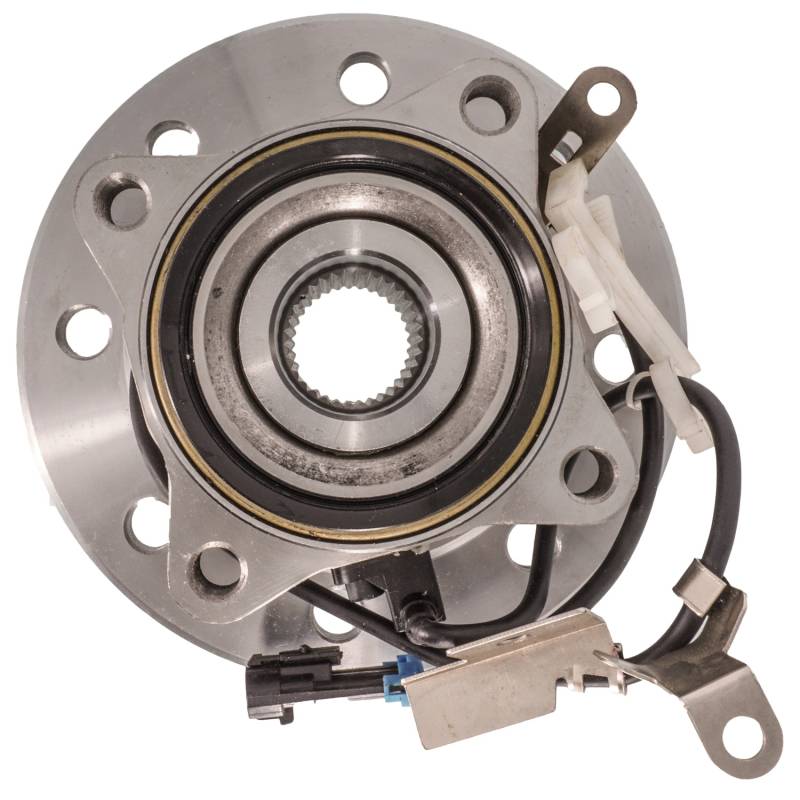

New Hub Assembly Compatible With Chevrolet Gmc K2500 Suburban K2500 K3500 1995-1995 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: 15.3
FLANGE DIAMETER (INCH): 4.59
FLANGE OFFSET (INCH): 2.693
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 8.189
HUB PILOT DIAMETER (INCH): 4.166
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 8.189
TOTAL HUB DIAMETER (MM): 208
TOTAL HUB HEIGHT (IN): 3.909
TOTAL HUB HEIGHT (MM): 99.28
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 30.709

REPLACES:
AUTOPART INTERNATIONAL: 1411-02827
BCA: WE61591
CENTRIC PARTS: 40266007E
FAG US: 102174 102175
MEVOTECH: H515015
MOOG HUB ASSEMBLIES: 515015
NAPA: PBR930406

APPLICATIONS:
CHEVROLET K2500 SUBURBAN (1995-1995)
CHEVROLET K2500 (1995-1995)
CHEVROLET K3500 (1995-1995)
GMC K2500 SUBURBAN (1995-1995)
GMC K2500 (1995-1995)
GMC K3500 (1995-1995)
