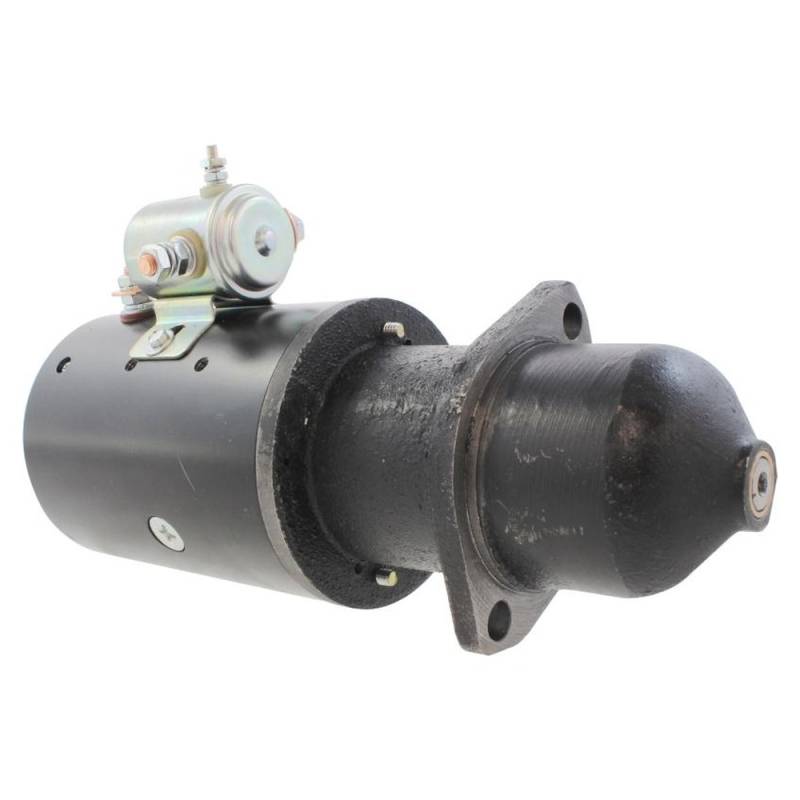

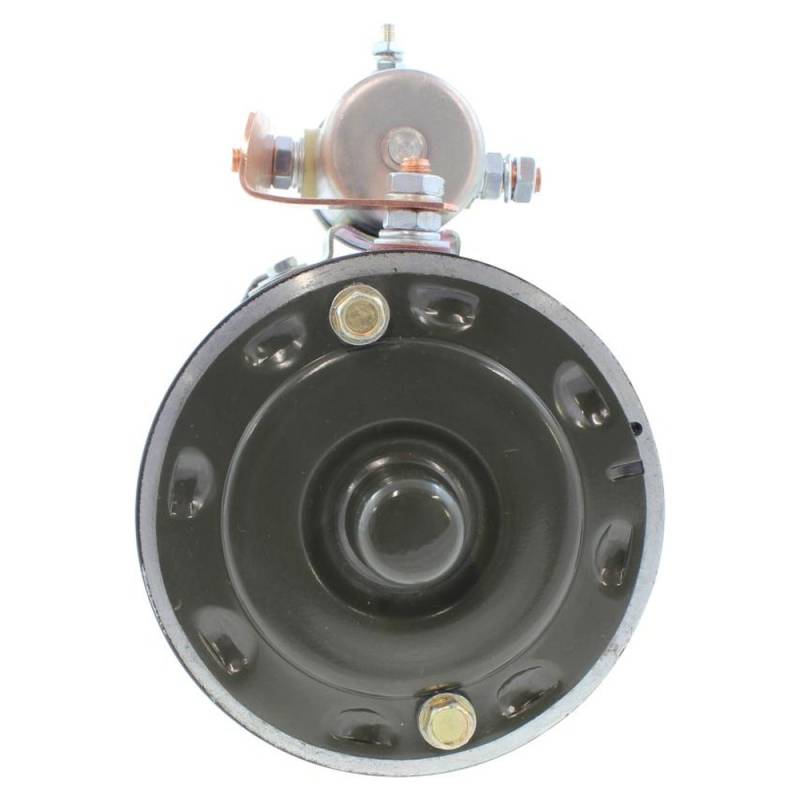

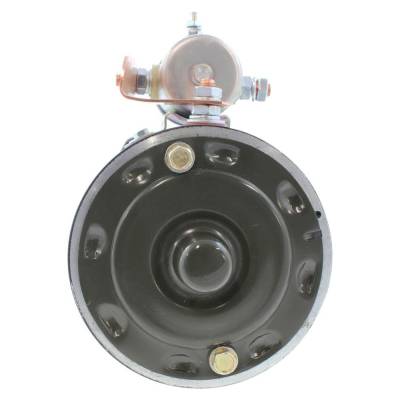

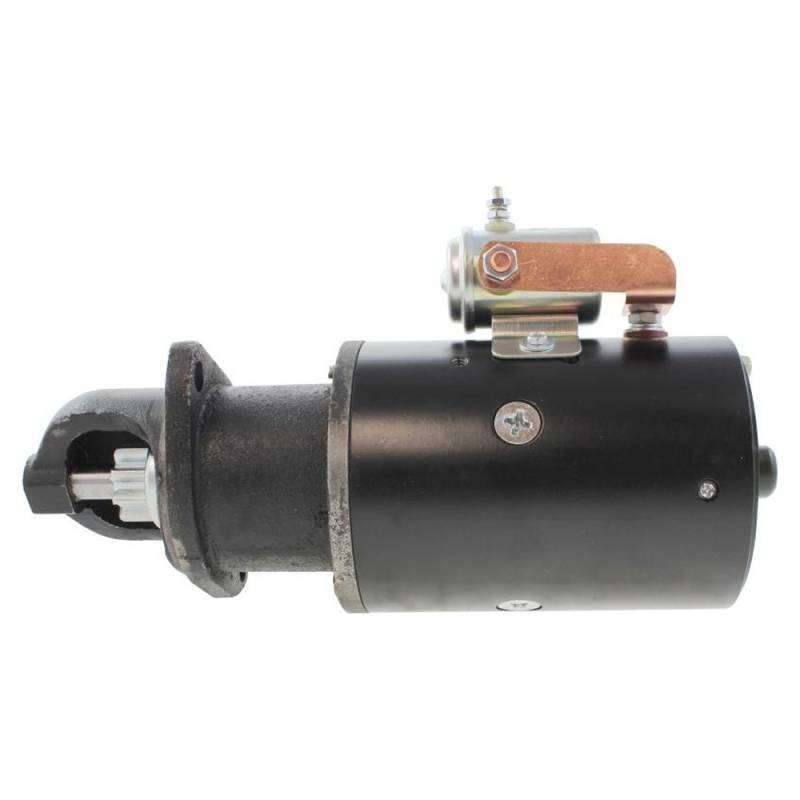

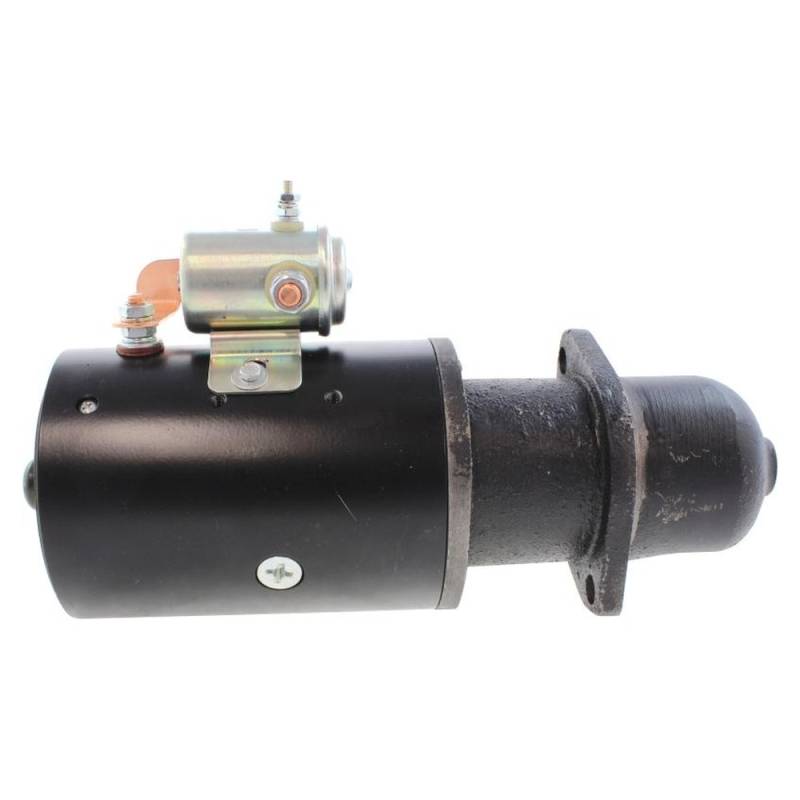

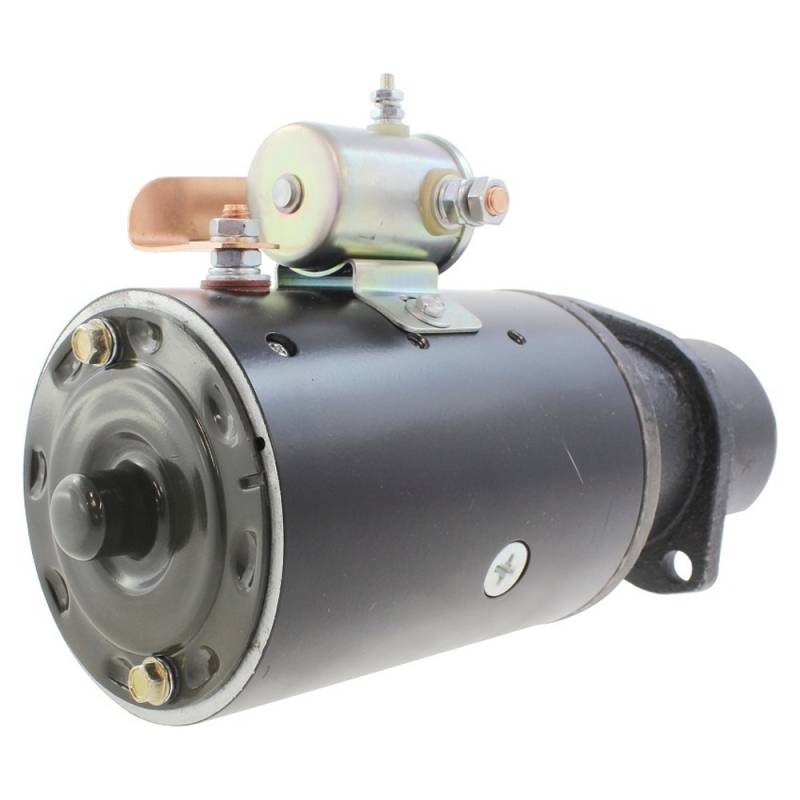

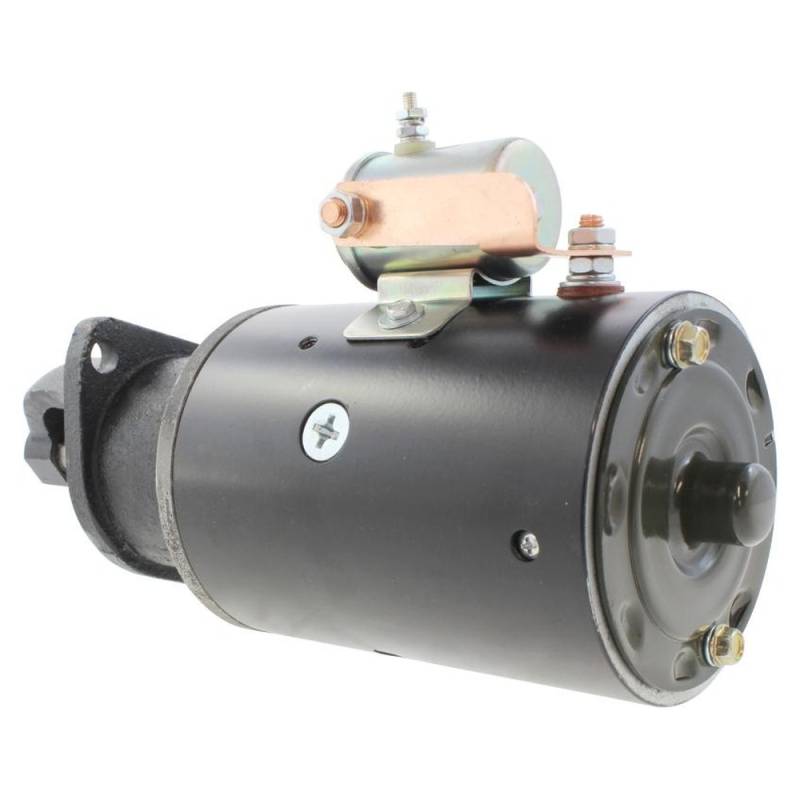

6V 9T Cw Starter Fits 1960-1963 Towmotor 420 F-140 Forklift

TOWMOTOR LIFT TRUCK CONTINENTAL Y-112:
• LT40, LT44 and LT48, Continental Y-112, 1951
• Model 390, Continental Y-112, 1960 to 1963
• Model 400P, Continental Y-112, 1960 to 1963
• Catalogs also show 390 and 400P coverage back to 1955

TOWMOTOR LIFT TRUCK CONTINENTAL F-140:
• Model 420, Continental F-140, 1960 to 1963
• Model 460, Continental F-140, 1960 to 1963
• Model 480, Continental F-140, 1951 to 1960
• Model 480P, Continental F-140, 1960 to 1963
• Model 500 and 500P, Continental F-140, 1960 to 1963

CATERPILLAR BADGED:
• Caterpillar 390, 400P, 420, 460, 1960 to 1963
• Caterpillar 480P, 500, 500P, 1960 to 1963
• Caterpillar bought Towmotor in 1965, the trucks are the same

WITHOUT TORQUE CONVERTER:
• The Prestolite catalog lists the F-140 fitment without torque converter
• Torque converter trucks can use a different starter
• Check what is stamped on the unit you removed

THIS IS A SIX VOLT STARTER:
• This unit is 6 volt, not 12 volt
• Many of these trucks were converted to 12 volt in service
• If yours has been converted you need the 12 volt unit instead
• Check the battery and the generator before ordering

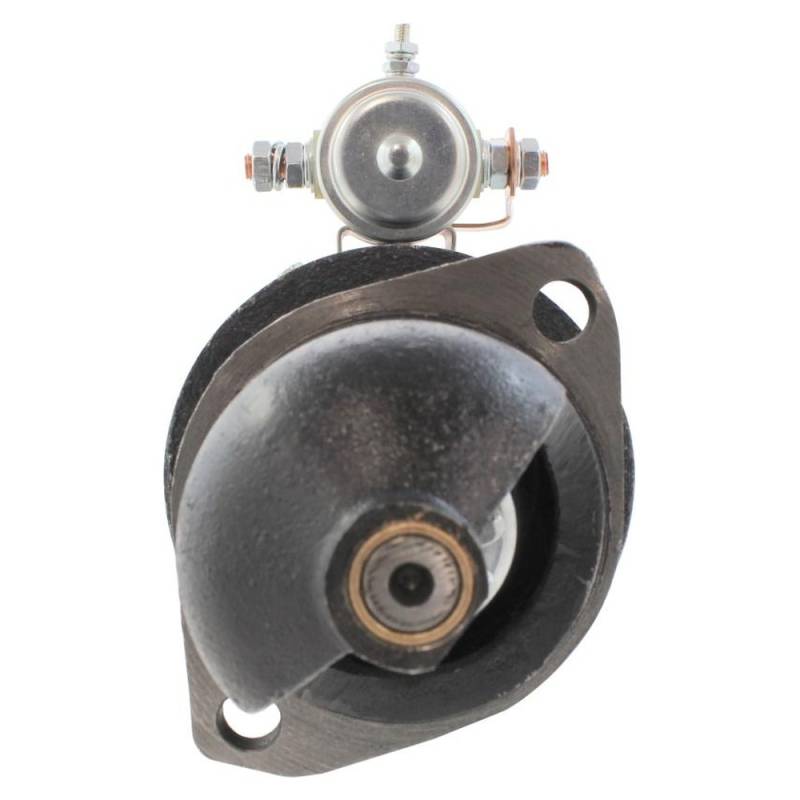

HOW TO VERIFY FIT:
• Clockwise, right hand rotation viewed from the pinion end

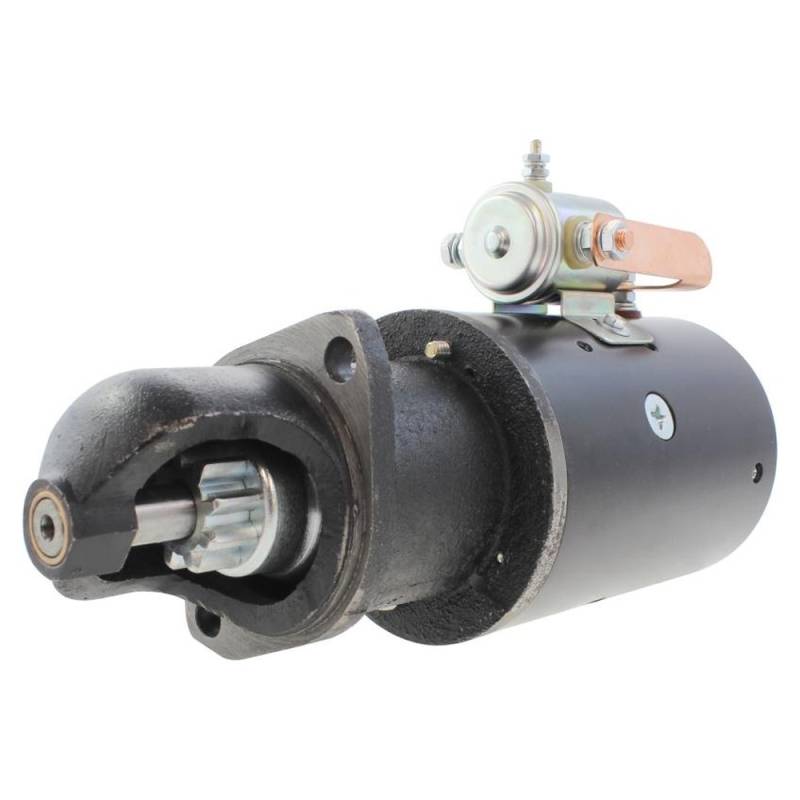

• 9 tooth pinion, direct drive, closed nose cone
• Two bolt flange mount, grounded case
• Solenoid is attached to the starter, not remote mounted
• 6 volt, about 20.4 lb / 9.27 kg

CROSS REFERENCE:
• Prestolite MZ4149, MZ4149A, MZ4166, MZ4166S, MZ4166T
• Prestolite 46-157, 46157, 46-2209, 462209, 46-761, 46761
• Prestolite MZ family, 6 volt direct drive, 9 tooth
