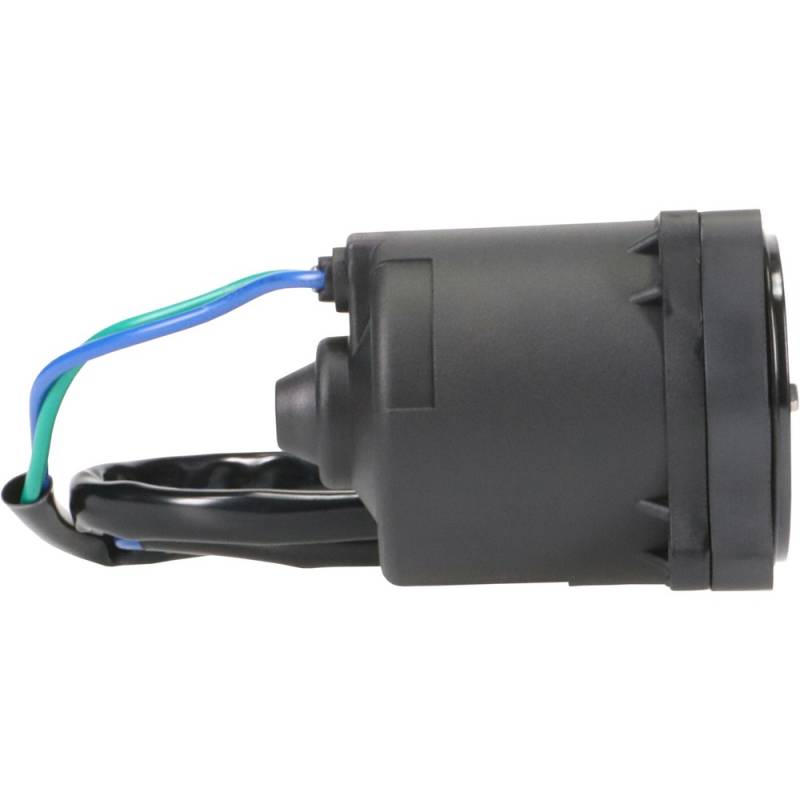

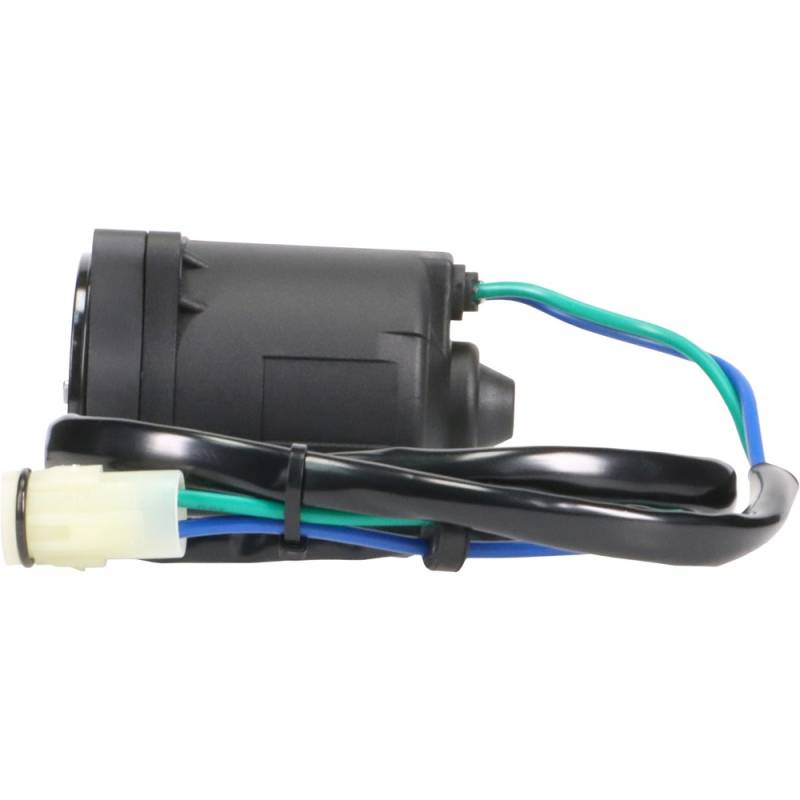

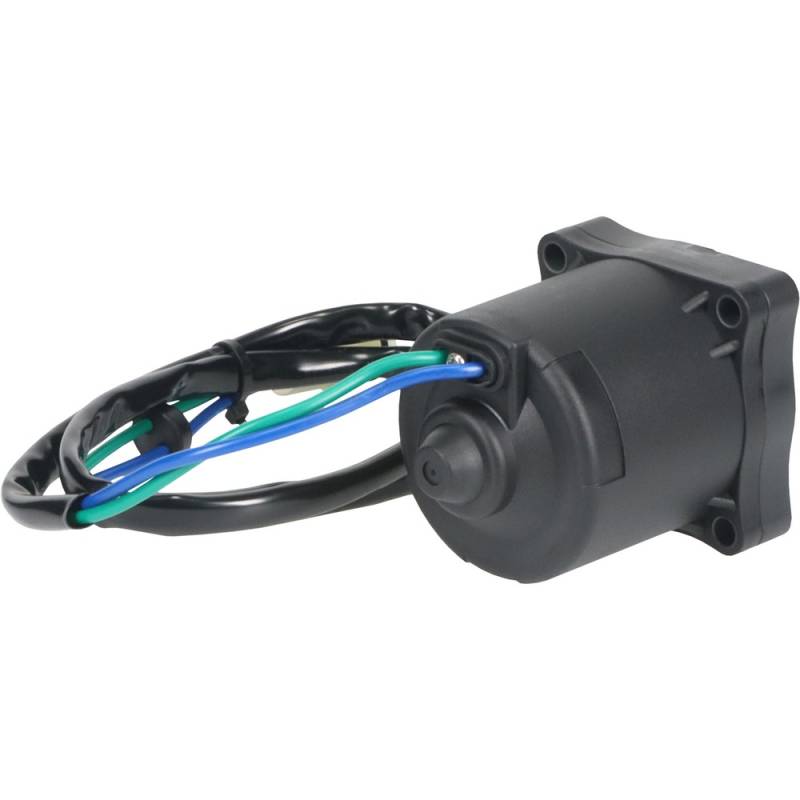

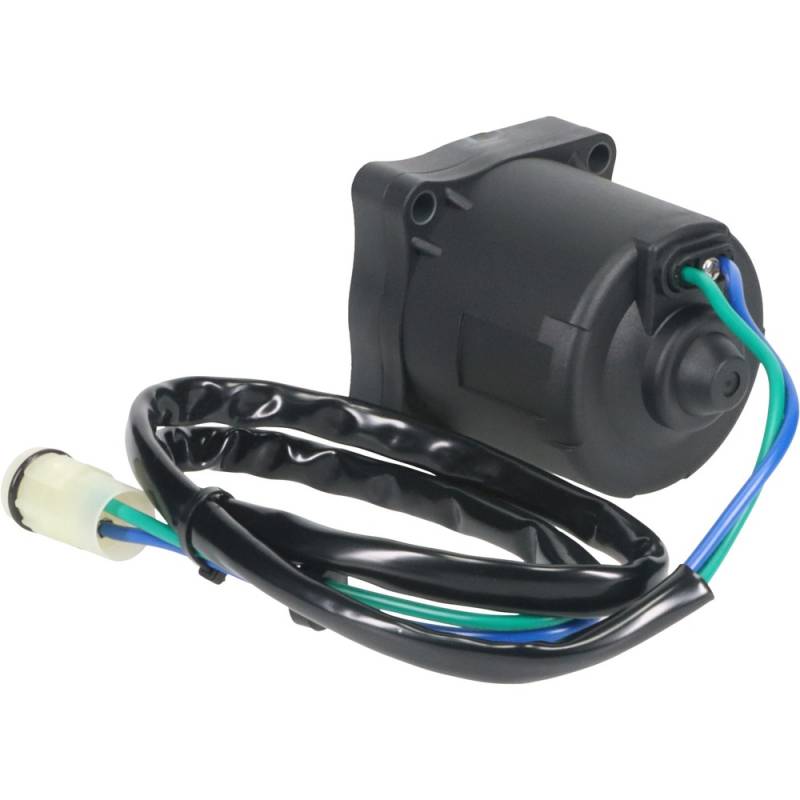

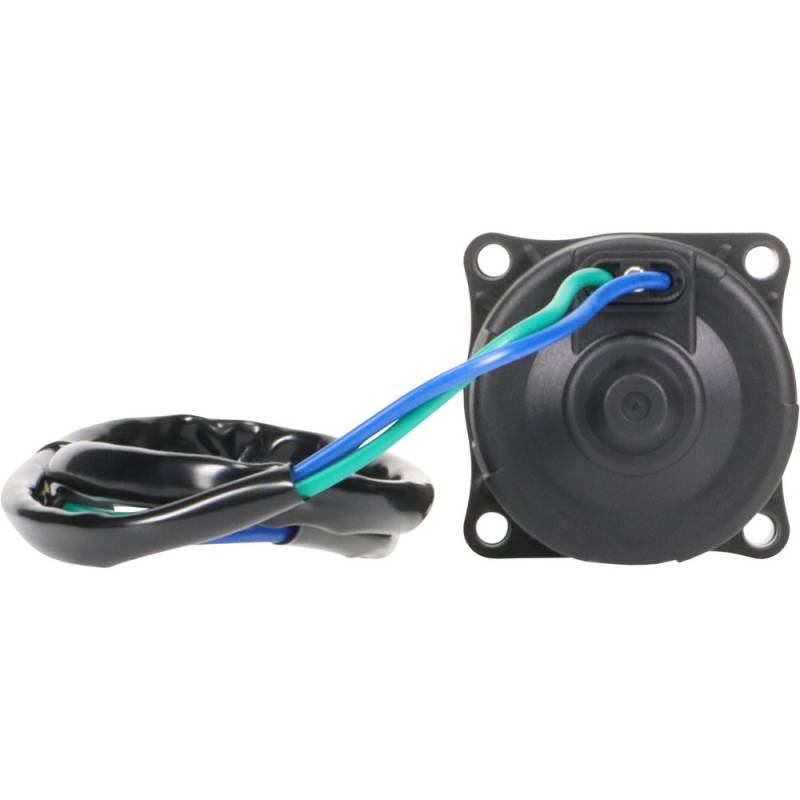

12V Tilt Motor Fits 2004-2019 Honda Bf150ak2 150Hp Outboard

HONDA BF150A, 150HP FOUR STROKE, 2004-2019:
• 2004 Honda BF150A4 LA, BF150A4 XA and BF150A4 XCA
• 2005 Honda BF150A5 LA, BF150A5 XA and BF150A5 XCA
• 2006 Honda BF150A6 LA, BF150A6 XA and BF150A6 XCA
• Honda BF150AK0 LA, BF150AK0 XA and BF150AK0 XCA
• Honda BF150AK2 LA, BF150AK2 XA and BF150AK2 XCA
• Honda BF150AK2 JA, BF150AK2 LS, BF150AK2 XS and BF150AK2 XCS
• Frame serial prefixes BANJ and BAPJ

HONDA BF135A, 135HP FOUR STROKE, 2004-2019:
• 2004 Honda BF135A4 LA, BF135A4 XA and BF135A4 XCA
• 2005 Honda BF135A5 LA, BF135A5 XA and BF135A5 XCA
• 2006 Honda BF135A6 LA, BF135A6 XA and BF135A6 XCA
• Honda BF135AK0 LA, BF135AK0 XA and BF135AK0 XCA
• Honda BF135AK2 LA, BF135AK2 XA and BF135AK2 XCA
• Frame serial prefixes BARJ and BASJ

HONDA BF115D, 115HP FOUR STROKE, 2011-2018:
• Honda BF115D LA, BF115D XA and BF115D XCA
• Honda BF115DK1 LA, BF115DK1 XA and BF115DK1 XCA
• Frame serial prefix BBHJ

READING THE HONDA TYPE CODE:
• L is the 20 in transom, X is the 25 in transom
• C means counter rotating, used on the second engine of a pair
• A is the USA market version
• A4, A5 and A6 are the 2004, 2005 and 2006 model years
• AK0, AK1, AK2 and DK1 mark later serial breaks
• The serial plate is on the right side of the stern bracket

ONE MOTOR, THREE HONDA NUMBERS:
• 36120-ZY6-013 was the first Honda number
• 36120-ZY6-023 replaced it
• 36120-ZY6-033 is the current number on the Honda diagram
• ARCO Marine 6235 and Sierra Marine 18-6745 replace all three

HOW TO VERIFY FIT:

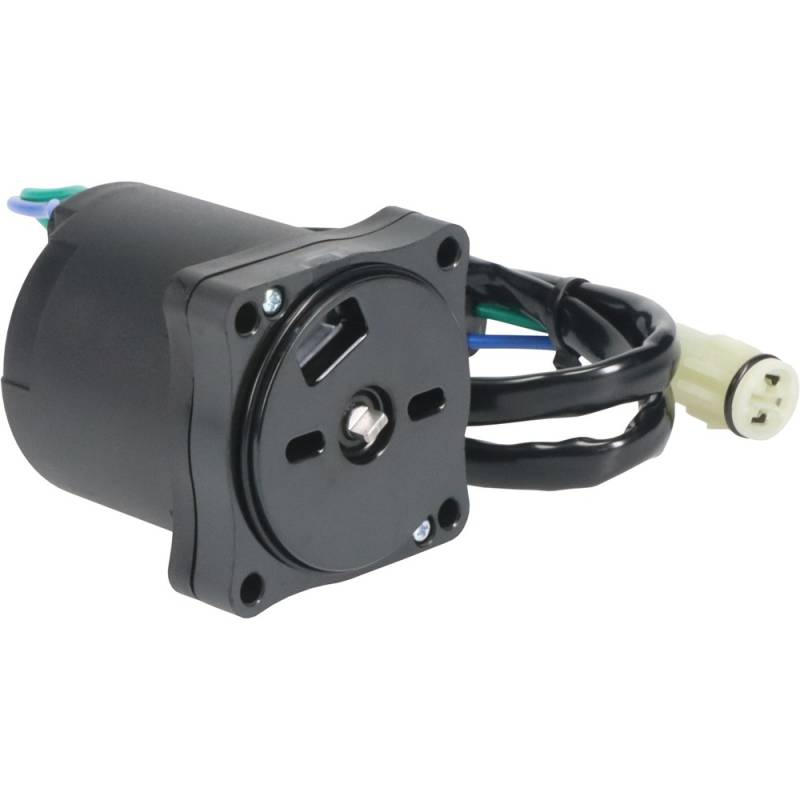

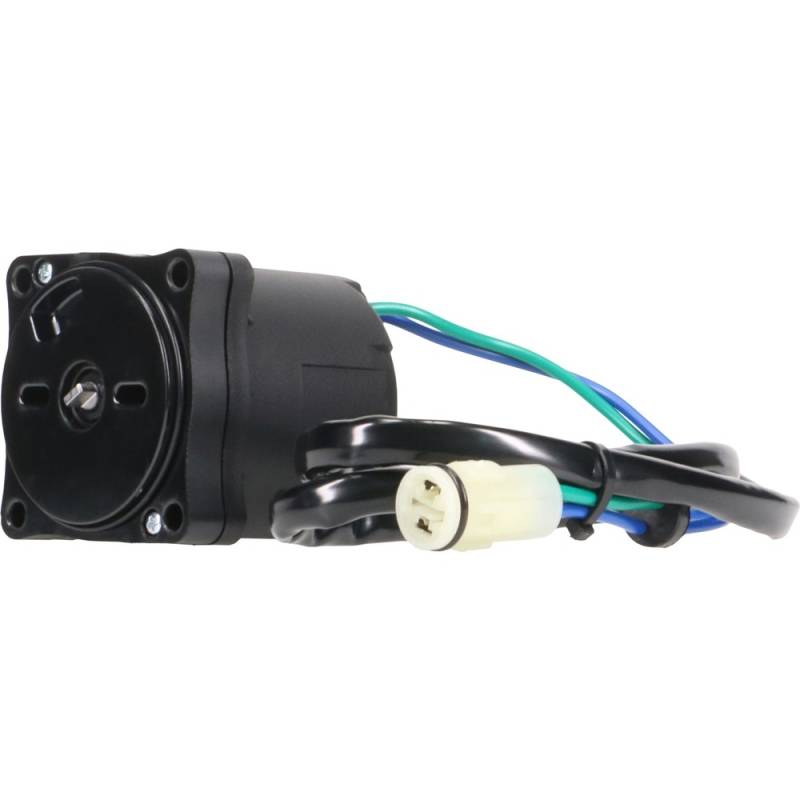

• Confirm a round plug-in connector on a 2 wire lead

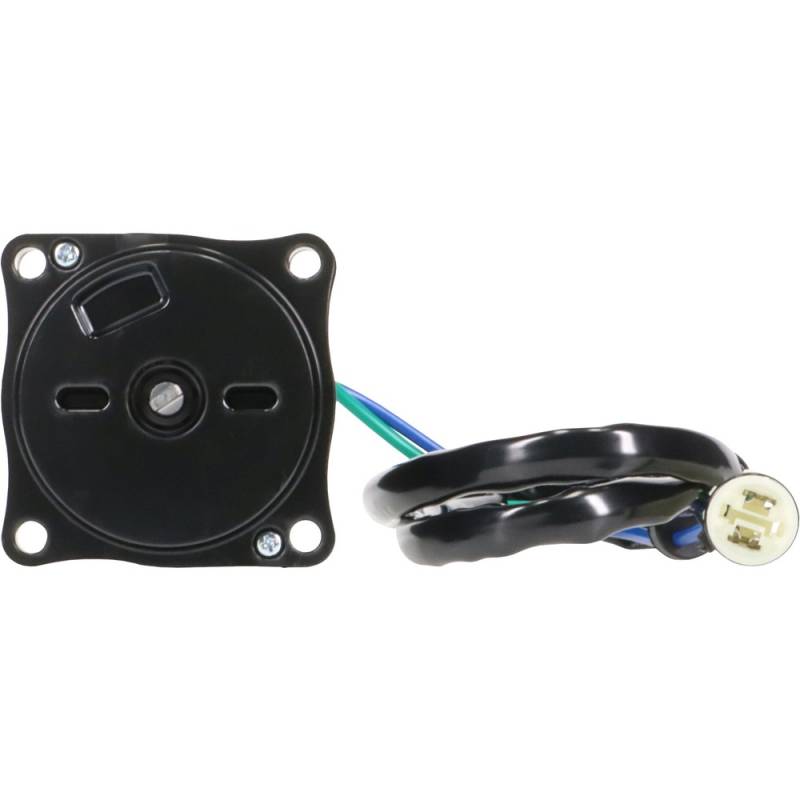

• Confirm 4 mounting bolts through the motor flange
• Confirm an 8 mm shaft with a 2.3 mm key into the pump
• Measure the body, it is 78.7 mm across and 112.5 mm long
• Motor only, the pump, reservoir and rams stay on the engine
