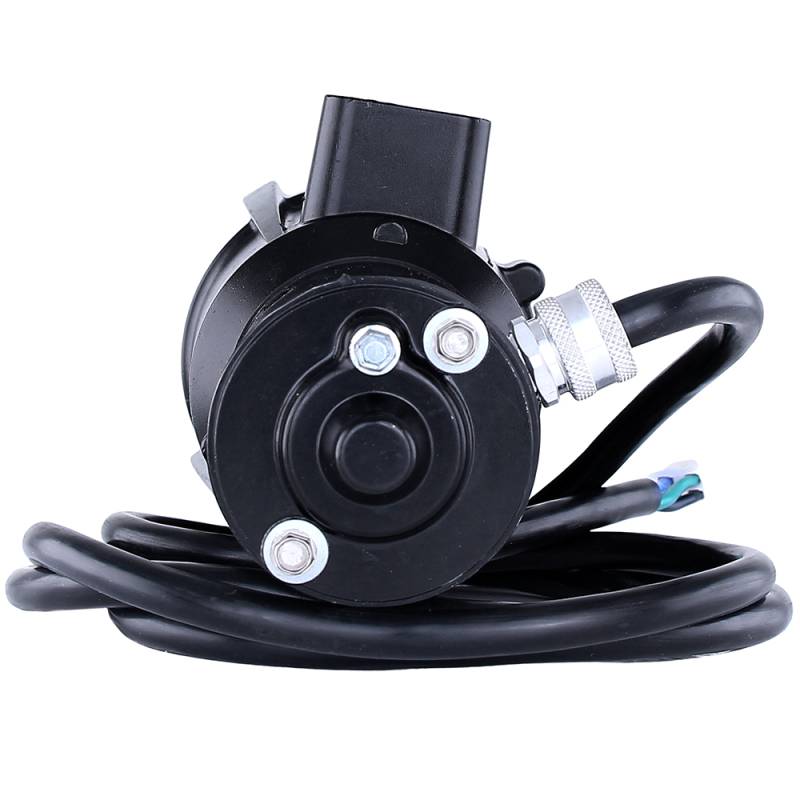

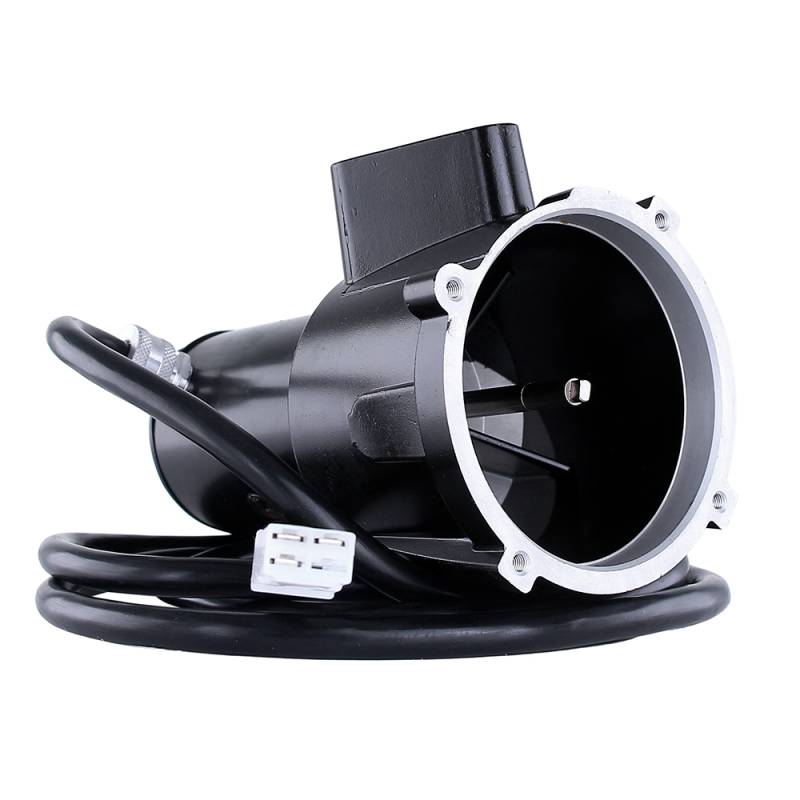

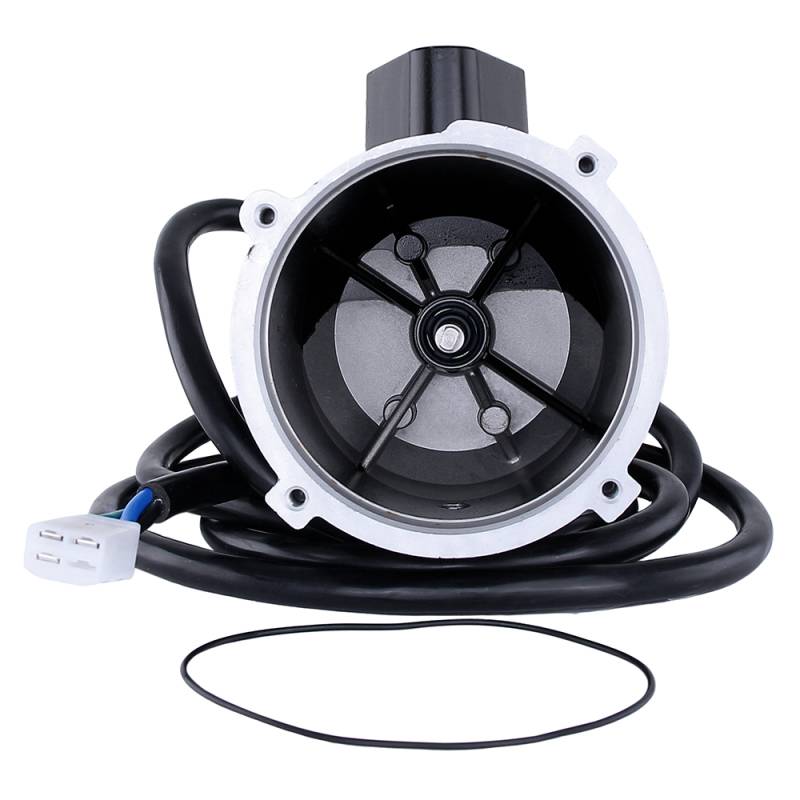

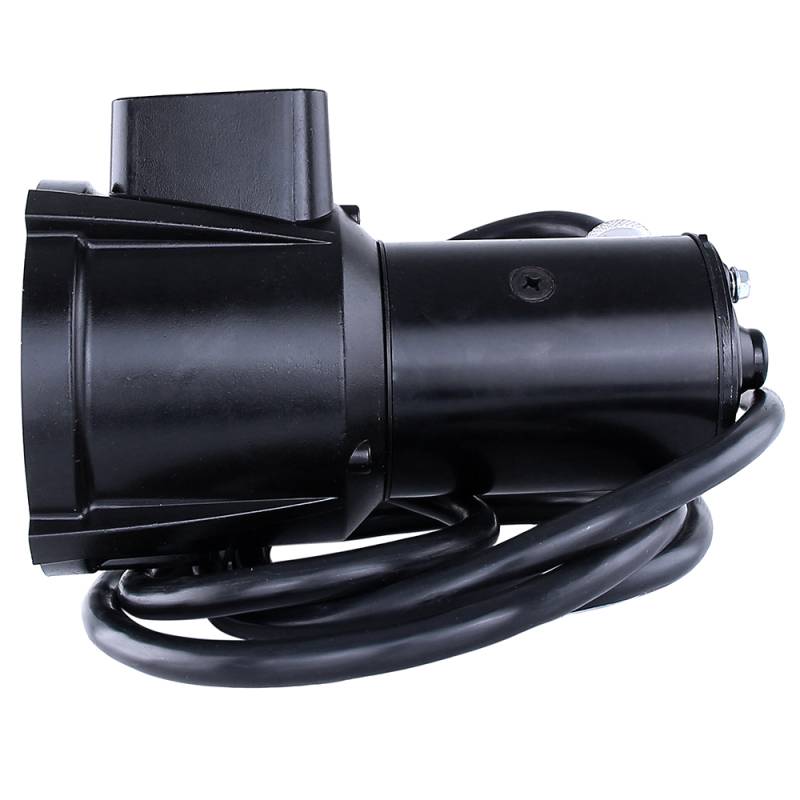

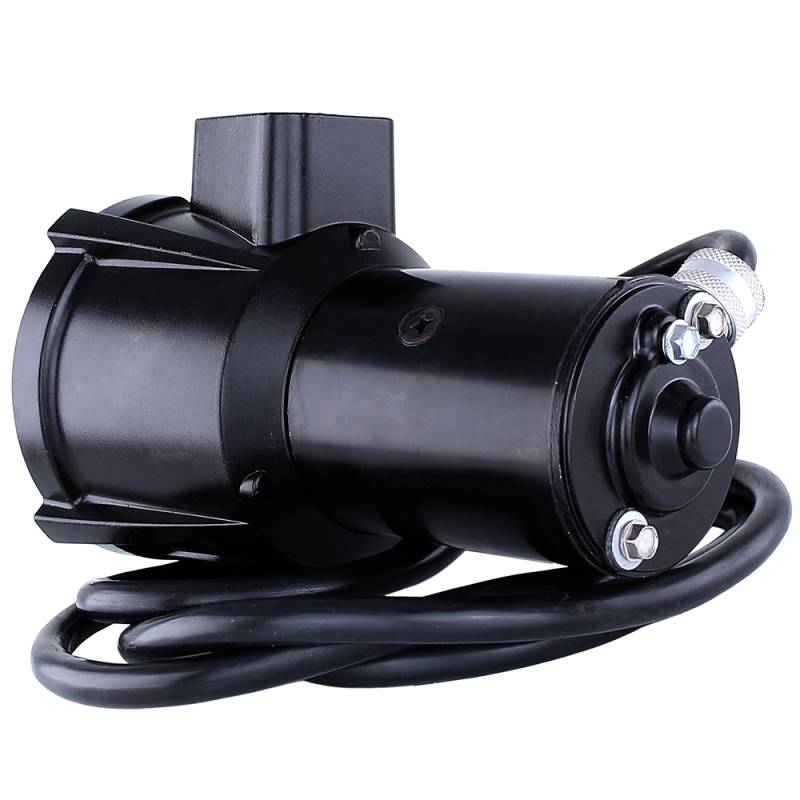

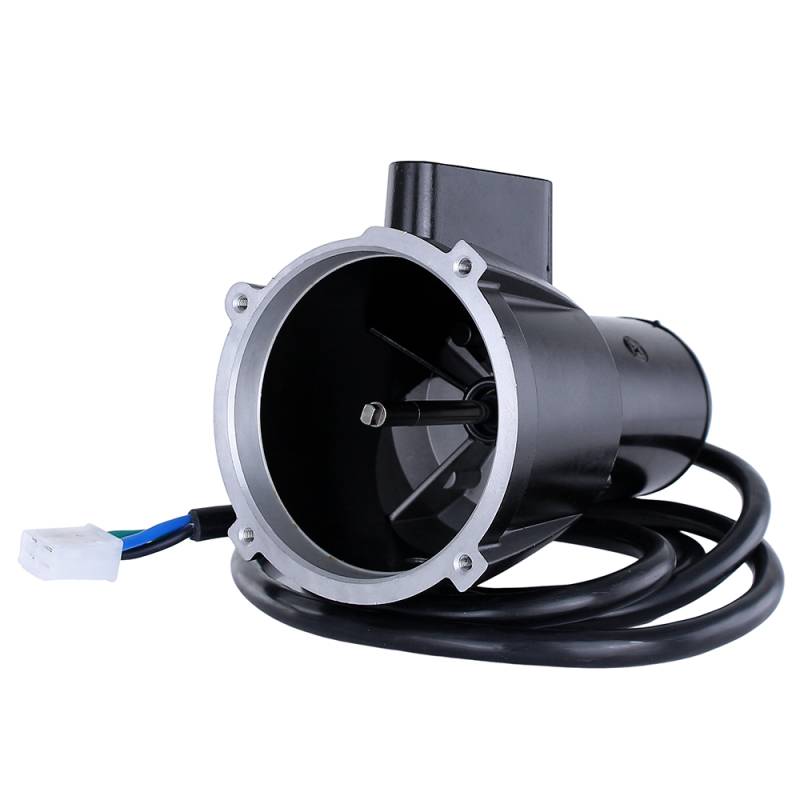

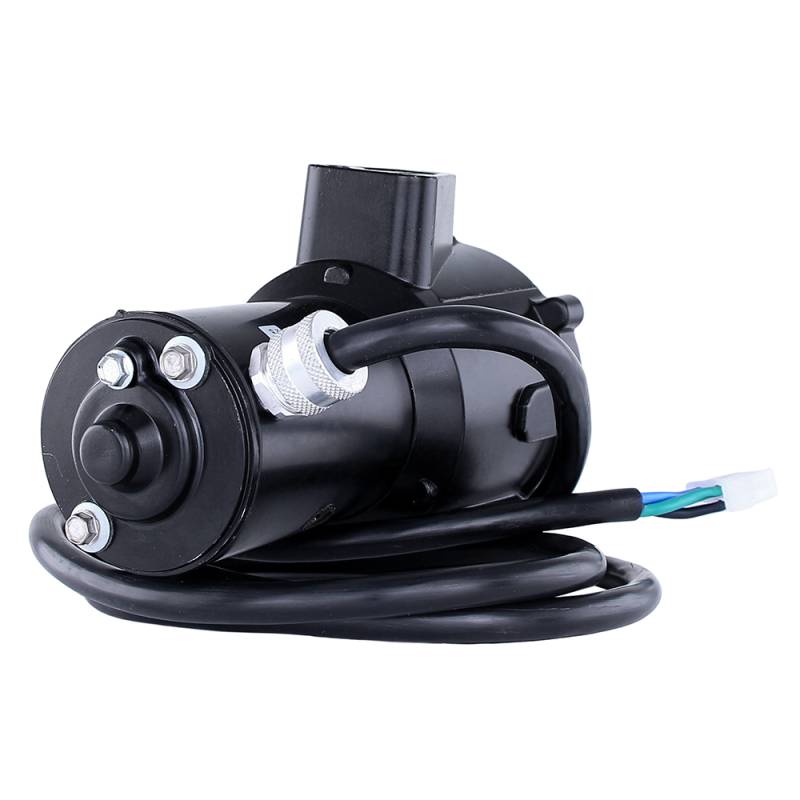

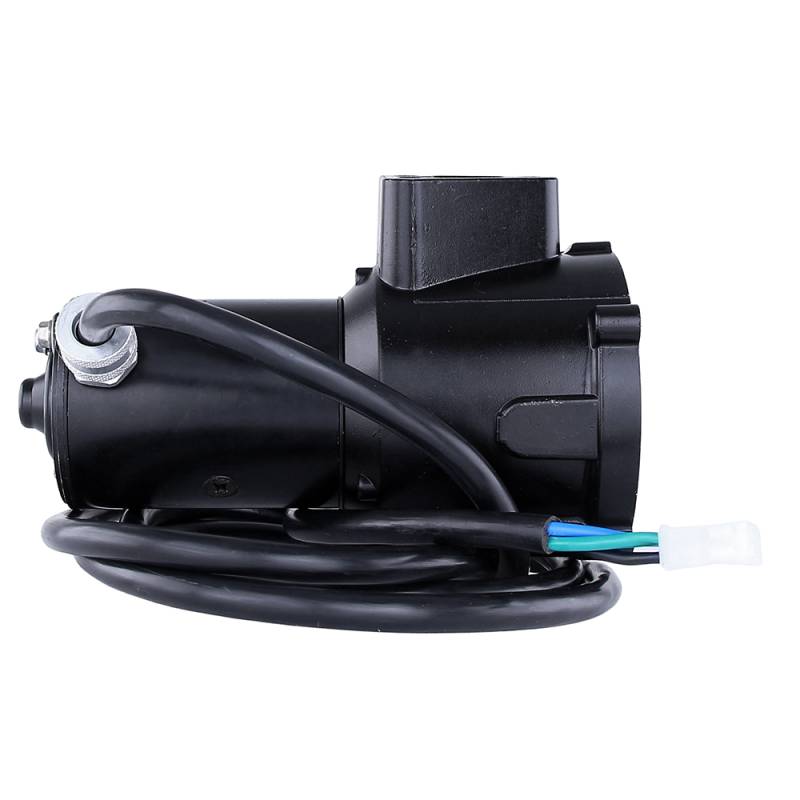

12V Tilt Trim Motor Compatible With 1974-1990 Johnson Evinrude 2 3 4 Cylinder Outboard Reversible

OEM PART NUMBERS:
• OMC: 172850 / 0172850
• OMC: 173596 / 0173596
• OMC: 172655 / 0172655
• OMC: 172847 / 0172847
• Prestolite: ESQ4006
• Prestolite: ESQ4007-1
• Prestolite: ESQ4009S
• Prestolite: 40-312, 40-355, 40-374, 40-379
• Mercury Marine: 802511

SPECIFICATIONS:
• Voltage: 12V DC
• Motor Type: Prestolite
• Rotation: Reversible
• Field Housing OD: 71.2mm / 2.803in
• Overall Length: 201.1mm / 7.917in
• Shaft OD: 7.9mm / 0.311in
• Shaft Type: Tanged
• Connection: 3-Wire with 3-Blade Plug
• Reservoir Base: 4.25in Diameter
• Certification: SAE J1171
• Weight: 5.72 lbs / 2.60 kg
• Condition: New

APPLICATION:
• Evinrude/Johnson Outboard V4 (1974-1977)
• Evinrude/Johnson 115HP/135HP (1974)
• Evinrude/Johnson 3 Cylinder (1977-1983)
• Evinrude/Johnson 2 Cylinder (1984-1990)
• Johnson 45HP Commercial (1989-1990)
• OMC V4 (1974-1977)
