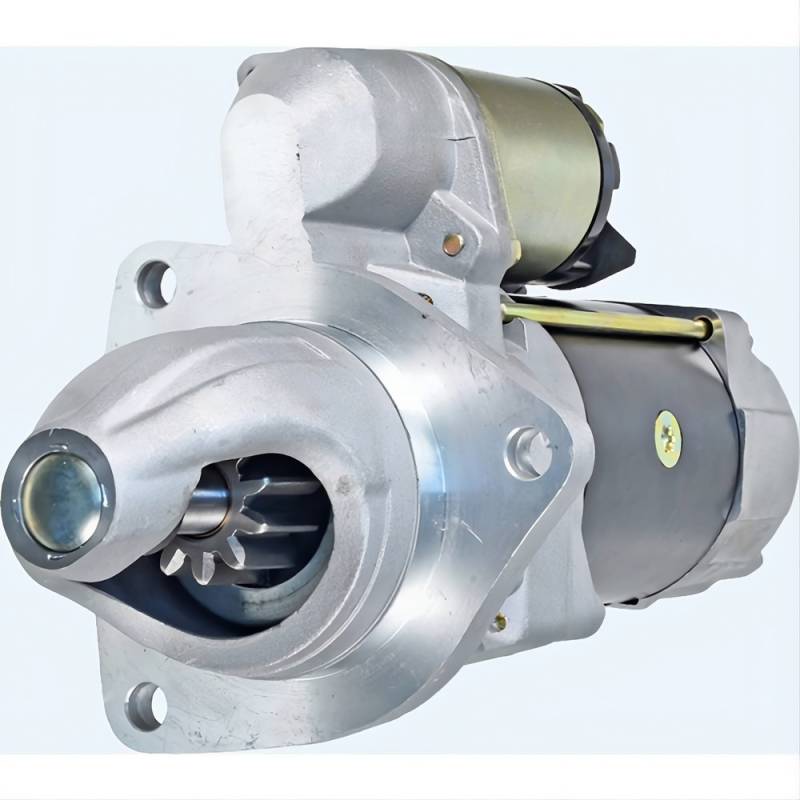

24V Starter Motor Fits 1995+ Mitsubishi S6b S6b3 04301-37010

(0) Reviews: Write first review
186-241A4
MITSUBISHI OEM PART NUMBERS:
• Mitsubishi: 04301-36100 / 0430136100
• Mitsubishi: 04301-36010 / 0430136010
• Mitsubishi: 04301-37010 / 0430137010

SAWAFUJI OEM PART NUMBERS:
• Sawafuji: 0350-602-0050 / 03506020050
• Sawafuji: 0340-602-0050 / 03406020050
• Sawafuji: 0340-552-0110 / 03405520110
• Sawafuji: 0340-552-0111 / 03405520111
• Sawafuji: 0340-552-0120 / 03405520120
• Sawafuji: 0340-552-0121 / 03405520121

SPECIFICATIONS:
• Type: Starter Motor, Offset Gear Reduction (OSGR)
• Voltage: 24 Volts
• Power: 6.0 kW / 8.046 HP
• Rotation: CW (Clockwise)
• Drive Teeth: 11
• Gear Outside Diameter: 1.772 in / 45mm
• Mounting Hole 1: 11mm Inside Diameter, Unthreaded
• Mounting Hole 2: Unthreaded
• Mounting Hole 3: 11mm Inside Diameter, Unthreaded
• Engine Family: Mitsubishi S6A / S6A2 / S6A3 / S6B / S6B3 6-Cylinder Diesel
• Engine Displacement: 18.56 Litres, 150mm x 175mm Bore x Stroke (S6A3 / S6B3)
• Condition: New

APPLICATIONS:
• Mitsubishi S6A / S6A2 / S6A3 6-Cyl Inline Diesel (1995 and Newer)
• Mitsubishi S6B / S6B3 6-Cyl Inline 18.56L Diesel (1995 and Newer)
• Mitsubishi S6A3-MPTA / MPTK / MPTAW Marine Propulsion (1995 and Newer)
• Mitsubishi S6B3-MPTA / MPTK / MTK2Z Marine Propulsion (1995 and Newer)
• Mitsubishi S6A3-T2MPTAW / S6B3-T2MPTAW Generator Engines (1995 and Newer)
• Mitsubishi S6A3-PT / S6A3-PTA Industrial Diesel Engines (1995 and Newer)
• Fishing Vessels, Workboats, Tugboats and Ferries with S6A / S6B Diesel
• Marine Auxiliary and Land Based Generator Sets with S6A3 / S6B3 Diesel

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $819.04
Sale: $468.02
Save: 43%
Save: $351.02
Qty:
Free Shipping!

Description

SAWAFUJI 24 VOLT 6.0kW 11-TOOTH OSGR STARTER MOTOR — MITSUBISHI S6A AND S6B SERIES DIESEL ENGINE APPLICATIONS:

MITSUBISHI S-SERIES ENGINE COVERAGE — SAWAFUJI STARTER:
• Mitsubishi S6A 6-Cyl Inline 4-Stroke Water-Cooled Diesel (1995 and Newer)
• Mitsubishi S6A2 6-Cyl Inline 4-Stroke Water-Cooled Diesel (1995 and Newer)
• Mitsubishi S6A3 6-Cyl 150x175mm 18.56L DI Diesel (1995 and Newer)
• Mitsubishi S6B 6-Cyl Inline 4-Stroke Water-Cooled Diesel (1995 and Newer)
• Mitsubishi S6B3 6-Cyl 150x175mm 18.56L DI Diesel (1995 and Newer)

MITSUBISHI MARINE PROPULSION DIESEL ENGINES — 6-CYLINDER INLINE:
• Mitsubishi S6A3-MPTA 6-Cyl 150x175mm 18.56L DI Turbo Diesel (1995 and Newer)
• Mitsubishi S6A3-MPTK 6-Cyl 18.56L Turbo Intercooled Diesel (1995 and Newer)
• Mitsubishi S6A3-MPTAW 6-Cyl 18.56L 221-385kW Diesel (1995 and Newer)
• Mitsubishi S6B3-MPTA 6-Cyl 150x175mm 18.56L Turbo Diesel (1995 and Newer)
• Mitsubishi S6B3-MPTK 6-Cyl 18.56L Turbocharged Diesel (1995 and Newer)

MITSUBISHI GENERATOR SET DIESEL ENGINES — MARINE AND LAND BASED:
• Mitsubishi S6B3-MPTA Marine Generator Engine 18.56L 6-Cyl (1995 and Newer)
• Mitsubishi S6B3-T2MPTAW Generator Engine 359-400kWm 18.56L (1995 and Newer)
• Mitsubishi S6A3-T2MPTAW Generator Engine 490kW 18.56L 6-Cyl (1995 and Newer)
• Mitsubishi S6A3 / S6B3 Land Based Standby and Prime Genset (1995 and Newer)

MITSUBISHI ENGINE MODEL CODE VARIANTS COVERED:
• Mitsubishi S6A3-PT / S6A3-PTA Industrial Diesel 18.56L (1995 and Newer)
• Mitsubishi S6B3-T2MPTK2 Propulsion Diesel 378-448kW (1995 and Newer)
• Mitsubishi S6B3-MTK2Z Marine Propulsion Diesel 18.56L (1995 and Newer)
• Mitsubishi S6A3-T2MPTK3 Propulsion Diesel 18.56L 6-Cyl (1995 and Newer)

VESSEL AND EQUIPMENT TYPES — MITSUBISHI S6A / S6B POWERED:
• Fishing Vessels with Mitsubishi S6A / S6B 18.56L Diesel (1995 and Newer)
• Workboats and Tugboats with Mitsubishi S6A3 / S6B3 Diesel (1995 and Newer)
• Ferries and Small Cargo Vessels with S6A3 18.56L Diesel (1995 and Newer)
• Marine Auxiliary Generator Sets with S6B3 6-Cyl Diesel (1995 and Newer)

ENGINE PLATFORM DATA:
• Configuration: 6-Cylinder Inline, 4-Stroke, Water-Cooled Direct Injection
• Bore x Stroke: 150mm x 175mm (S6A3 / S6B3)
• Total Displacement: 18.56 Litres (S6A3 / S6B3)
• Compression Ratio: 14.5:1 (S6A3)
• Aspiration: Turbocharged with Charge Air Cooler
• Output Range: 221kW to 490kW depending on model and rating

FITMENT NOTES:
• 24 VOLT SYSTEM ONLY — this starter will not work on 12-volt engines
• Clockwise rotation with 11-tooth pinion — count teeth on the original unit
• Gear outside diameter 1.772in / 45mm — must match the flywheel ring gear
• Mounting: 3 unthreaded holes, 11mm inside diameter
• MATCH BY ENGINE MODEL AND PART NUMBER, NOT BY YEAR — Mitsubishi does not publish production start dates for the S6A and S6B series, and these engines remain in production
• Some S6A and S6B installations use twin starters — confirm the quantity fitted to your engine
• NOT for Mitsubishi S6R, S6R2, S12A2, S12H, S12R or S16R series engines

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 28.5 lbs.
  • W9.0000” x H7.0000” x L16.5000”
