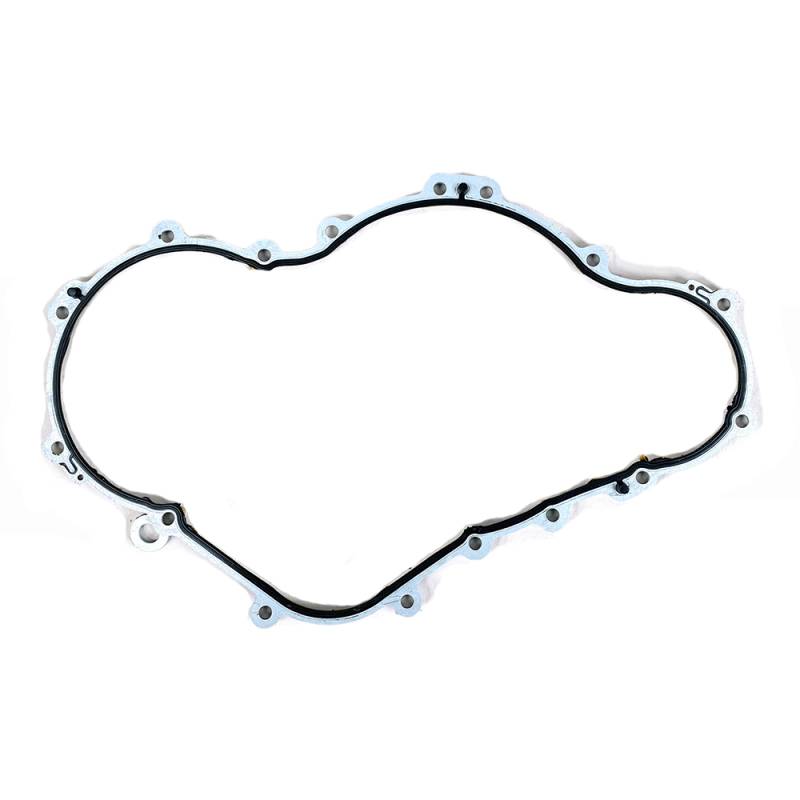

Timing Gear Cover Gasket Compatible With Caterpillar 314E/316F/320D2/320E 2010-2020 C4.4/C6.6/C7.1

CATERPILLAR EXCAVATORS:
• Caterpillar 314E/316F/320D2/320E/320F/323F C4.4/C6.6/C7.1 Diesel (2010-2020)

CATERPILLAR BACKHOE LOADERS:
• Caterpillar 416F/420F/422F/428F/430F/432F C4.4 4.4L Diesel (2012-2020)


IMPORTANT:
Cat 335-5330 is the FRONT SIDE timing gear cover gasket for the Perkins 1200 series engine (Cat C4.4/C6.6/C7.1 Tier 4). Perkins equivalent is T406926. The timing cover on these engines uses separate front and rear gaskets — do NOT order this part if you need the rear side gasket (Cat 330-4778 / Perkins T405824). Confusing front and rear timing cover gaskets is the most common ordering error.

Failure symptoms: oil weeping from the front timing cover, particularly visible around the crankshaft pulley area. When replacing, also inspect the front crankshaft seal and timing cover O-rings. These Perkins 1200 series engines are found in Cat excavators, backhoes, motor graders, and many other machines — always confirm the engine serial number as gasket dimensions can change between production dates.

⚠️ FRONT side gasket. Cross-ref: Cat 335-5330 = Perkins T406926. Verify front vs rear position.
