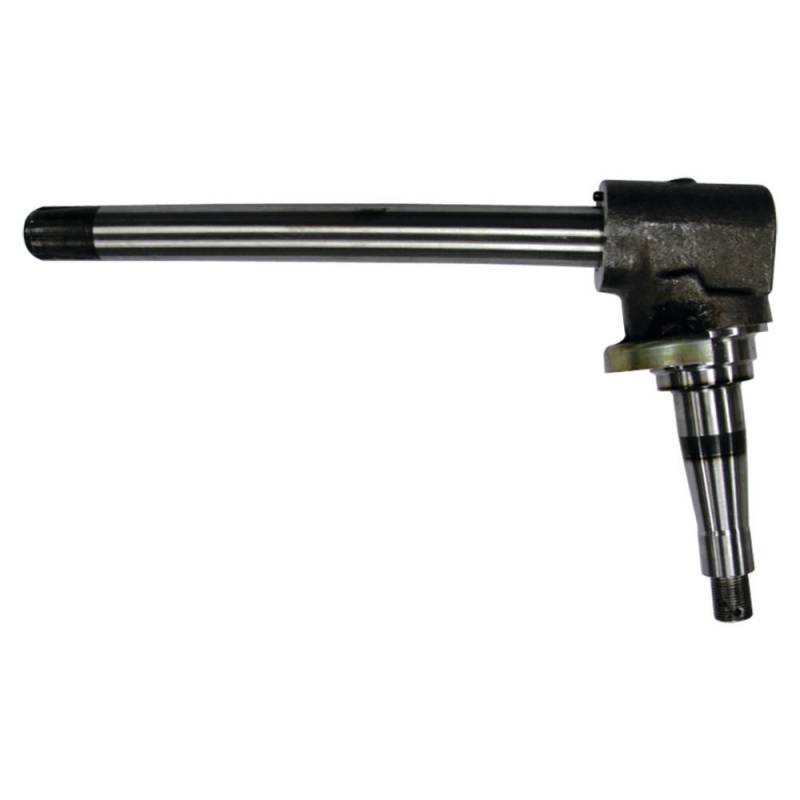

Splined Front Axle Spindle Compatible With John Deere 3020 4020 4010 3010 2510 4000 4320 2520 9900

OEM PART NUMBERS:
• John Deere: AR28050 (Superseded by AR55180)
• John Deere: AL55180
• John Deere: AR55180
• John Deere: AR50984 (Superseded by AR55180)

SPECIFICATIONS:
• Type: Universal Spindle (Right Hand or Left Hand)
• Splined: Yes (6 Spline Shaft)
• Axle Type: Row Crop Front Axle
• Shaft Length: 15 1/8" (15.125")
• Axle Stub Length: 6 3/16" (6.1875")
• Diameter: 1 1/2" (1.500")
• Inner Diameter / Inner Bearing: 1 11/16" (1.687")
• Outer Diameter / Outer Bearing: 1 5/16" (1.312")
• Steering Arm Bolt: 5/8" x 2-3/4"
• Condition: New

APPLICATION:
• John Deere 3020/4020 Row Crop Tractors (1964-1972)
• John Deere 3010/4010 Row Crop Tractors (1961-1963)
• John Deere 2510 Row Crop Tractor (1966-1968)
• John Deere 4000/4320 Row Crop Tractors (1969-1972)
• John Deere 2520 Row Crop Tractor (1969-1972, S/N 022001+)
• John Deere 9900 Cotton Picker (Row Crop Front Axle)
• Row Crop front axle models only

Splined Front Axle Spindle — John Deere 10 and 20 Series Row Crop Tractors
New 6 spline front axle spindle for John Deere row crop tractors. Universal RH/LH. 15 1/8 inch shaft, 1 1/2 inch diameter, 1 11/16 inch inner bearing, 1 5/16 inch outer bearing, 6 3/16 inch axle stub. Requires 5/8 by 2-3/4 inch steering arm bolt. Use with R3021 wheel bearing kit. Direct OEM replacement for AR28050, AL55180, AR55180, and AR50984.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
