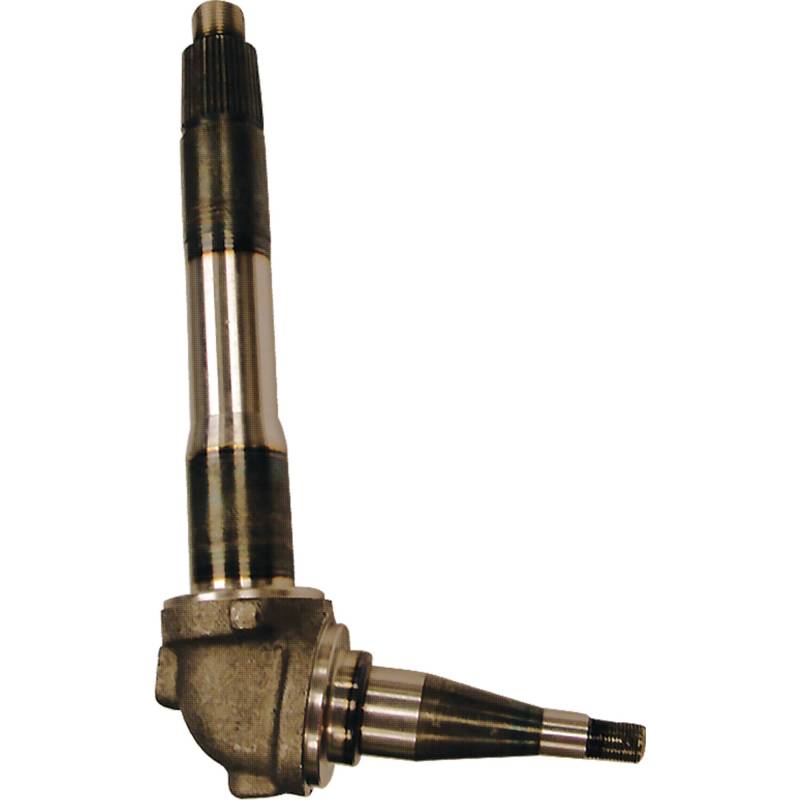

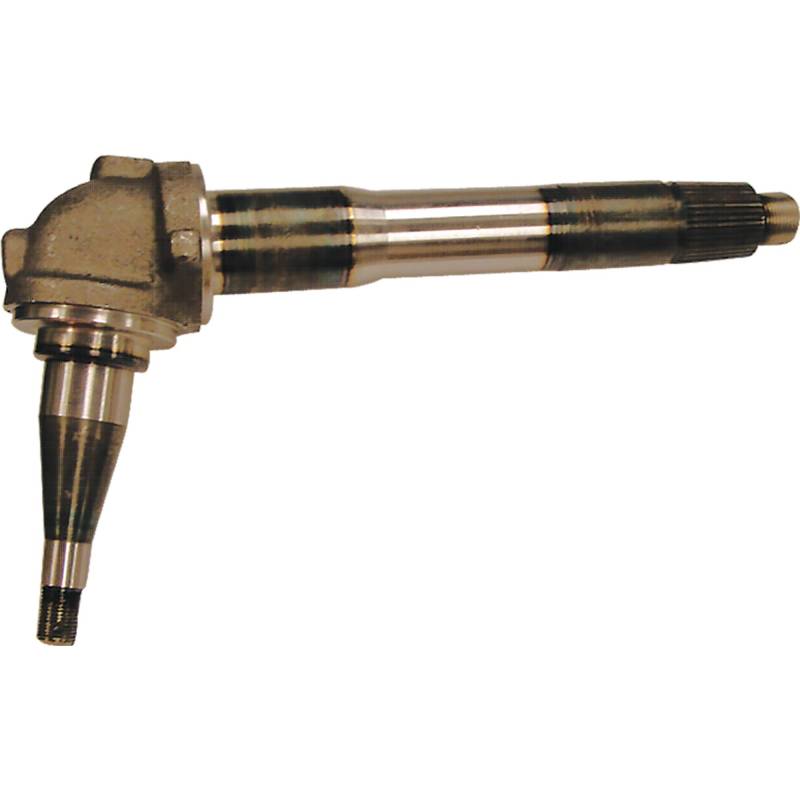

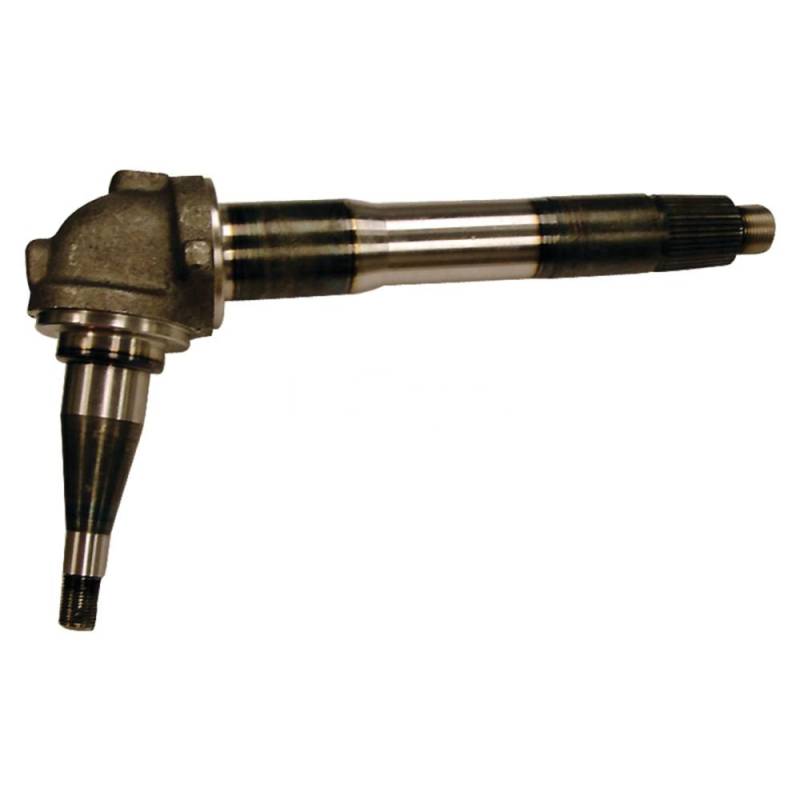

Splined Tractor Spindle Compatible With Ford New Holland 5640 6640 7740 7840 Ts90 Ts100 Ts110 2Wd

OEM PART NUMBERS:
• Ford / New Holland: 87316431
• Ford / New Holland: E9NN3105EB / E9NN3105EB
• Ford / New Holland: 81872317
• Ford / New Holland: 81864055
• Ford / New Holland: E9NN3105EA / E9NN3105EA

SPECIFICATIONS:
• Type: Universal Spindle (Right Hand or Left Hand)
• Splined: Yes
• Axle Type: 2WD Standard Front Axle
• Shaft Length: 12" (12.000" / 305mm)
• Axle Stub Length: 5 1/4" (5.25")
• Diameter: 1 15/16" (1.934")
• Upper Diameter: 1 1/4" (1.722")
• Inner Diameter: 1 5/8" (1.625")
• Outer Diameter: 13/16" (0.843")
• Wheel Hub Thread: 3/4 x 16 UNF
• Condition: New

APPLICATION:
• Ford / New Holland 5640/6640 Tractors 2WD (1991-1999)
• Ford / New Holland 7740/7840 Tractors 2WD (1991-1999)
• New Holland TS90/TS100/TS110 Tractors 2WD (1998-2003)
• New Holland TS100A/TS110A/TS115A/TS125A/TS130A/TS135A 2WD (2003-2007)
• 2WD standard front axles only — not for MFWD/FWD axles

Ford / New Holland Splined Front Axle Spindle — 40 Series and TS Series
New splined front axle spindle for Ford and New Holland tractors. Universal RH/LH. 2WD standard front axles. 12 inch shaft, 1 15/16 inch diameter, 1 5/8 inch ID, 13/16 inch OD, 5 1/4 inch axle stub, 3/4 x 16 UNF thread. Direct OEM replacement for 87316431, E9NN3105EB, 81872317, 81864055, and E9NN3105EA.
