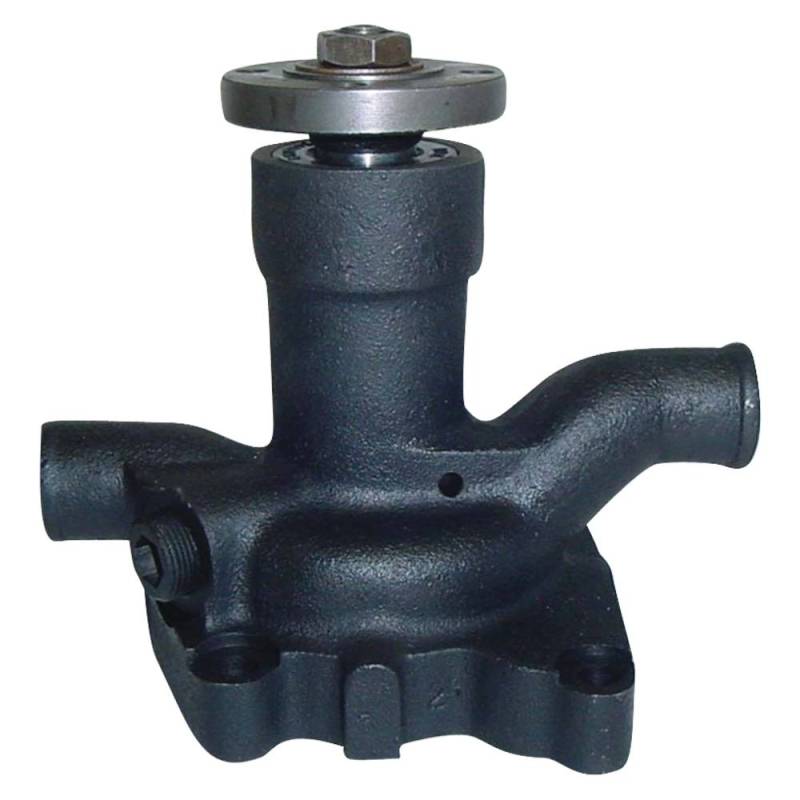

Water Pump Single Groove V-Belt Pulley Gasket Included Compatible With Zetor 4911 5011 5211 5320

1806-6200A2
Zetor :
• 62010615 / 531962010615 (Water Pump Assembly — 3000-7000 Series)
• 70010675 / 531970010675 (Water Pump Assembly — 3000-7000 Series)
• 70010695 / 531970010695 (Water Pump Assembly — 3000-7000 Series)
• LP3634 (Water Pump Assembly — Alternate Reference)

NOT Compatible With:
• Zetor 5511 / 5545 / 5611 / 5645 / 5647 — Uses 30010610
• Zetor 5711 / 5718 / 5745 / 5748 — Uses 6901-0651
• Zetor 6711 / 6718 / 6745 / 6748 — Uses 6901-0651
• Zetor 7540 / 8520 / 8540 / 9540 — Uses UR3 Series Pump
• Double groove pulley applications — This is single groove
• Non-Zetor tractors — Zetor-specific mounting pattern

Product Specifications:
• Type: Water Pump Assembly
• Drive Type: Pulley Driven
• Pulley Type: Single Groove V-Belt
• Impeller Diameter: 3.46 inch (88mm)
• Front Shaft Diameter: 0.55 inch (14mm)
• Mounting: 4-Bolt Pattern
• Gasket: Included
• Material: Cast Iron Construction
• Finish: Primed and Painted for Corrosion Resistance
• Bypass Hole: Plug Included (12mm Hex Socket)
• Application: Zetor 3000 / 4000 / 5000 / 6000 / 7000 Series Tractors

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $296.92
Sale: $169.67
Save: 43%
Save: $127.25
Qty:
Free Shipping!

Description

Zetor 3000 Series:
• 3011 — Z3001 3-Cylinder — 39 HP — 2.3L (1960-1967)
• 3320 — Z3201 3-Cylinder — 46 HP — 2.7L (1993-1997)
• 3340 — Z3201 3-Cylinder — 46 HP (1990s)
• 3511 / 3513 — Z3001 3-Cylinder — 39 HP (1968-1972)
• 3545 — Z3001 3-Cylinder — 39 HP — 4WD (1968-1972)

Zetor 4000 Series:
• 4511 — Z4001 4-Cylinder — 53 HP (1968-1972)
• 4611 — Z4001 4-Cylinder — 50 HP (Late 1960s-1970s)
• 4712 / 4718 — Z4001 4-Cylinder — 50 HP (1970s-1980s)
• 4911 — Z4001 4-Cylinder — 45 HP (1980s-1990s)

Zetor 5000 Series:
• 5011 — Z5001 3-Cylinder — 49 HP — 2.7L (1970s-1980s)
• 5211 / 5245 — Z5201 3-Cylinder — 56 HP (1980s-1990s)
• 5320 / 5340 — Z5401 3-Cylinder — 56 HP (1990s)

Zetor 6000 Series:
• 6011 / 6045 — Z6001 4-Cylinder — 60 HP (1970s-1980s)
• 6245 — Z6001 4-Cylinder — 60 HP (1980s-1990s)
• 6320 / 6340 — Z7701 4-Cylinder — 60 HP (1990s)

Zetor 7000 Series:
• 7011 / 7045 — Z7001 4-Cylinder — 70 HP (1970s-1980s)
• 7211 / 7245 — Z7201 4-Cylinder — 70 HP (1980s-1990s)
• 7320 / 7321 — Z7301 4-Cylinder — 70 HP (1990s)
• 7340 / 7341 — Z7301 4-Cylinder — 70 HP (1990s)
• 7711 / 7745 — Z7701 4-Cylinder — 75 HP (1980s-1990s)

Compatibility Notes:
• Single groove V-belt pulley — verify pulley type
• 4-bolt mounting pattern
• Gasket included — ready to install
• Bypass hole plug included (12mm hex socket)
• Czech manufactured tractors — also sold as Long brand in USA

Details

Shipping Information

  • Item Requires Shipping
  • 12.4 lbs.
  • W8.4000” x H8.4000” x L8.9000”
  • Free Shipping!
