Case IH / International Harvester :
• 3132741R91 • 3132741R92 • 3132741R93 • 3132741R94
Cross-Reference Numbers:
• 3144456R91 • 3144456R92 • 3144456R93 • 9144456R93
Related Parts (Different Application):
• 3132676R93 — Newer 955XL/1055/1255/1455 (Different Hub Design)
• 3132738R93 — Earlier IH 500/533/633/724/824 Series
• 3136053R92 — Smaller D155/D179 Engine Pump
• 3132739R92 — Case IH 484-895 Utility Series
Product Specifications:

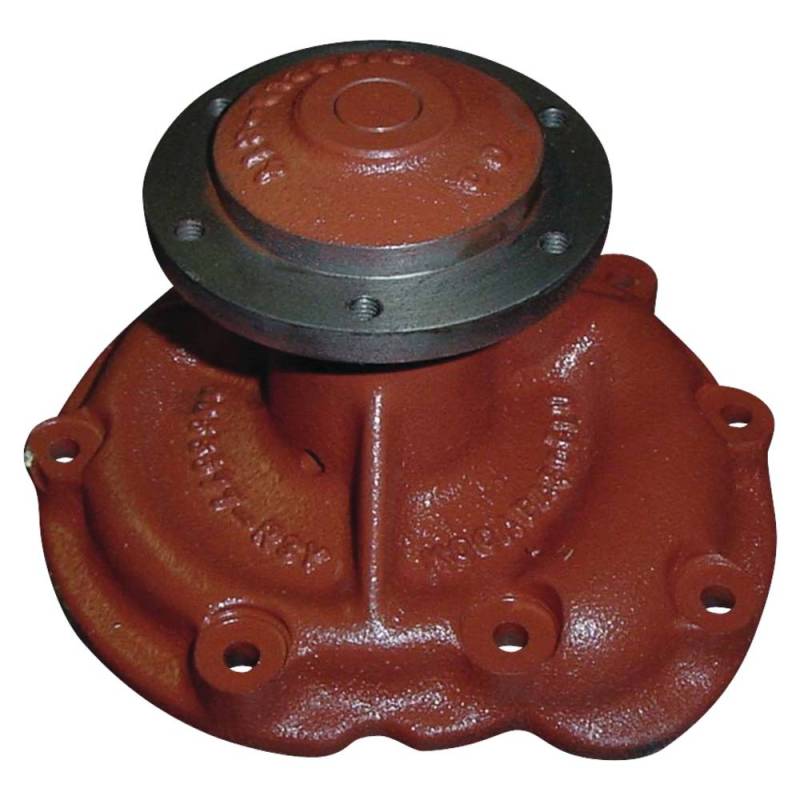

• Type: Engine Water Pump with Single V-Belt Pulley
• Pulley: Single Groove V-Belt
• Hub OD: 4.364 inch (110.9mm)
• Hub Height: 0.733 inch (18.62mm)
• Shaft Diameter: 5/8 inch (15.875mm)
• Impeller Width: 4.43 inch
• Hub Bolt Pattern: 6-Bolt — 1 7/8 inch Spacing
• Material: Cast Iron Housing
• Weight: 9.80 lbs (4.45 kg)
• Gasket: Included
• Engine: D206/D239/D246/D268/D310/D358 Diesel (4-Cyl and 6-Cyl)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
