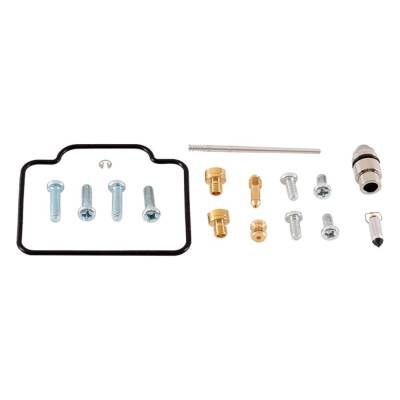

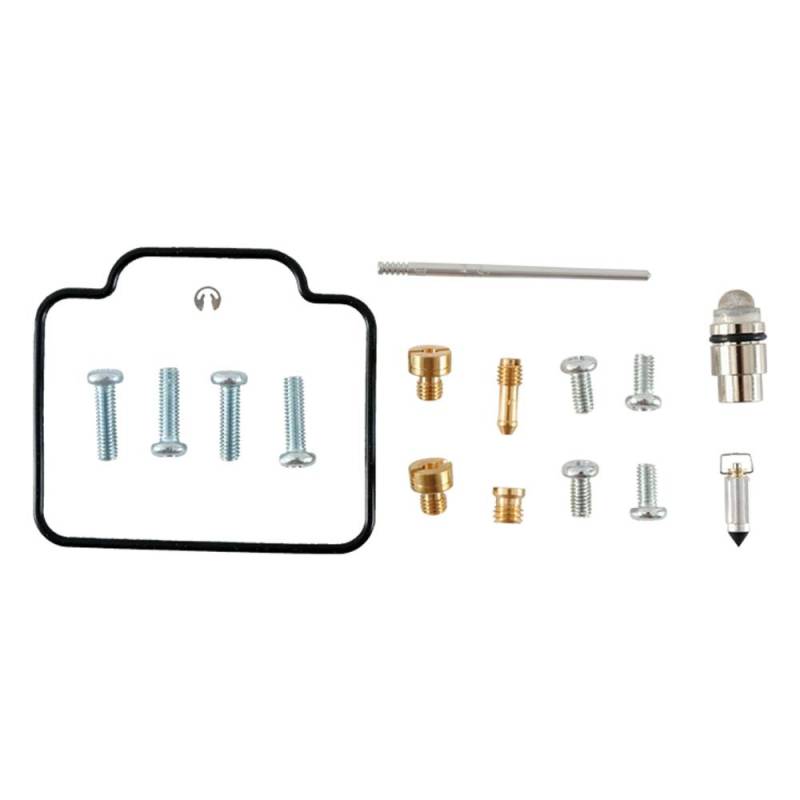

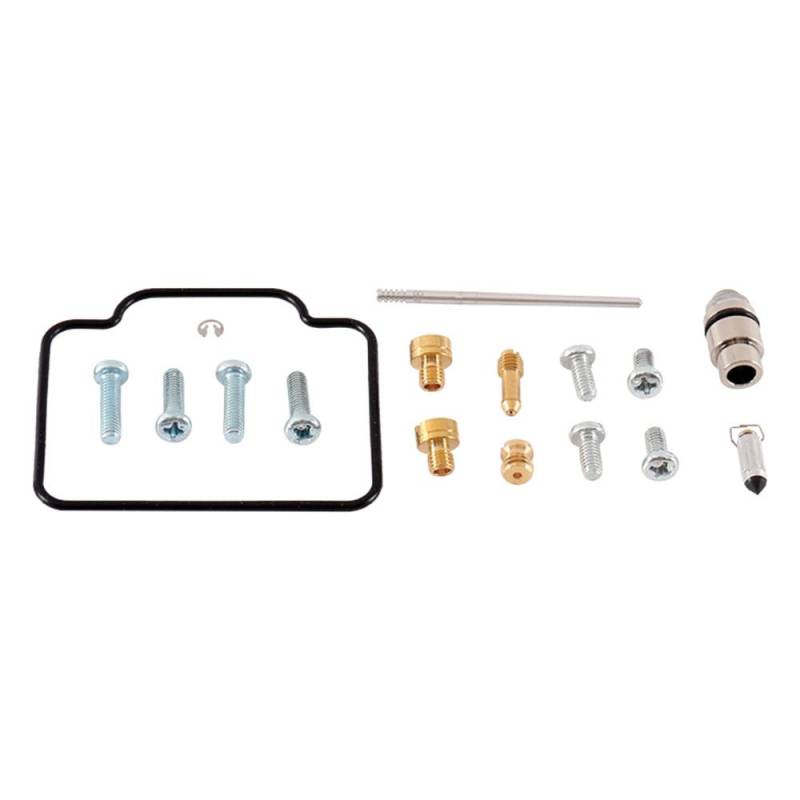

Carb Rebuild Kit Compatible With Polaris Magnum 330 2X4 4X4 2004 2005 Atp 330 Trail Boss Trail

OEM PART NUMBERS:
• Polaris: 3131303 (Carburetor Repair Kit)
• Polaris: 3131360, 3131327, 3131132 (Carb Assemblies)
• Polaris: 3130924, 3130730, 3130592 (Carb Assemblies)

SPECIFICATIONS:
• Engine Model: Fuji ES32PFE 4-Stroke Single Cylinder
• Displacement: 329cc
• Bore x Stroke: 78.5mm x 68.0mm
• Compression Ratio: 9.2:1
• Cooling: Air-Cooled with Fan-Assisted Oil Cooler
• Lubrication: Wet Sump
• Carburetor: Mikuni BST 34mm CV (Constant Velocity)
• Main Jet: #122.5
• Pilot Jet: #42.5
• Pilot Air Jet: #160
• Jet Needle: 4HB48-2 (2003-04) / 4HB48-3 (2005+)
• Needle Jet: P-0 (829) / P-4 (829) after 1/1/2004
• Pilot Screw: 2.0 Turns Out (Initial Setting)
• Float Height: 13 ± 1mm
• Fuel Delivery: Mechanical Fuel Pump
• Engine Idle: 1300 ± 100 RPM
• Alternator: 200 Watts @ 5000 RPM
• Transmission: Automatic PVT (High/Low/Reverse/Park)
• Drivetrain: Shaft Drive
• Fuel Capacity: 3.25 Gallons
