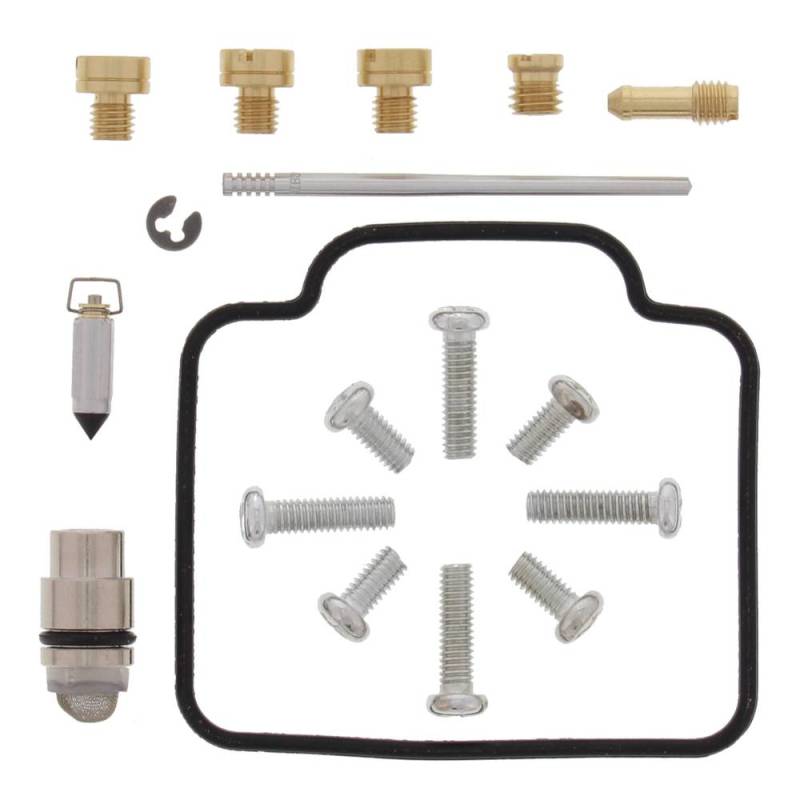

Carb Rebuild Kit Compatible With Polaris Sportsman 450 4X4 2006 2007 Sportsman 400 Ho Ranger 400

OEM PART NUMBERS:
• Polaris: 3131360 (Carburetor Repair Kit / Assembly)

SPECIFICATIONS:
• Engine Model: Fuji EH46PLE (450) / EH460PLE (400 HO)
• Displacement: 455cc
• Bore x Stroke: 87.9mm x 75.0mm
• Compression Ratio: 9.8:1 (450) / 10.1:1 (400 HO)
• Cooling: Liquid-Cooled
• Lubrication: Pressurized Dry Sump
• Carburetor: Mikuni BST 34mm CV (Constant Velocity)
• Main Jets: #157.5, #160, #167.5 (3 included for all years)
• Pilot Jet: #42.5
• Pilot Air Jet: #160
• Jet Needle: 4IB33-3
• Needle Jet: P-6M (829)
• Pilot Screw: 2.75 Turns Out (Initial Setting)
• Float Height: 13mm
• Fuel Delivery: Impulse Fuel Pump
• Idle Speed: 1200-1375 RPM
• Max RPM: 7000
• Alternator: 260 Watts
• Transmission: Automatic PVT (H/L/N/R/P)
• Drivetrain: On-Demand AWD 4x4 / Shaft Drive
• Fuel Capacity: 4.25-4.5 Gallons

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
