Carburetor Rebuild Kit Compatible With Suzuki Quadrunner 500 Ltf500f 4X4 Manual 1998-2002 493Cc

(0) Reviews: Write first review
26-1086A1
OEM PART NUMBERS:
• Suzuki: 13200-09F50 (Carburetor Assembly — Latest)
• Suzuki: 13200-09F501 (Carburetor Assembly)
• Suzuki: 13200-09F30 (Carburetor Assembly)
• Suzuki: 13200-09F10 (Carburetor Assembly)
• Suzuki: 13200-09F01 (Carburetor Assembly)
• Suzuki: 13200-09F00 (Carburetor Assembly — Original)
• Arctic Cat: 0470-348, 0470-352 (Cross-Reference)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: 34mm CV-Type
• Engine Platform: 493cc Liquid-Cooled SOHC 4-Valve

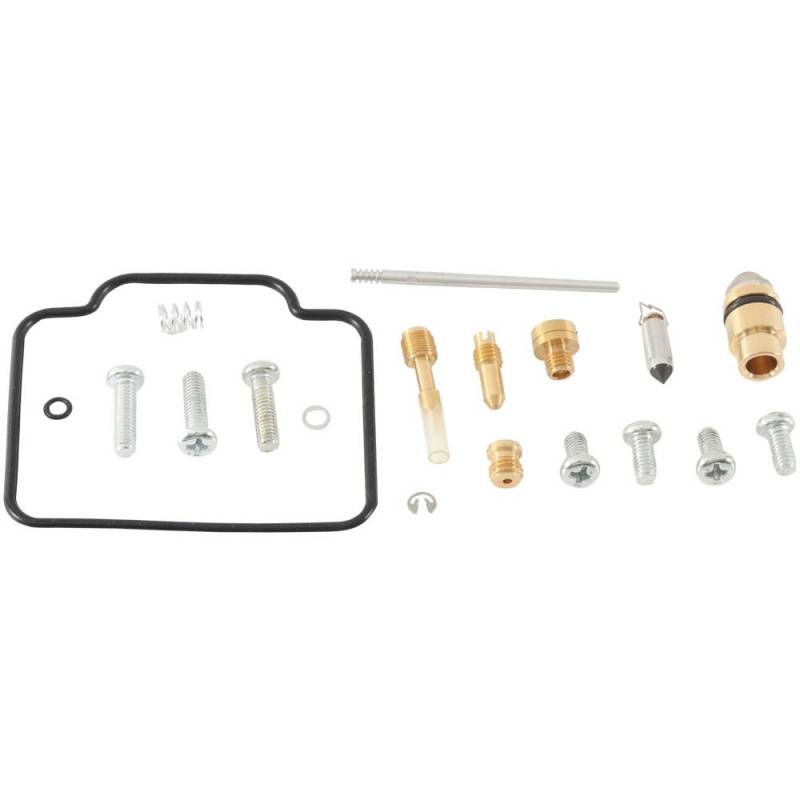

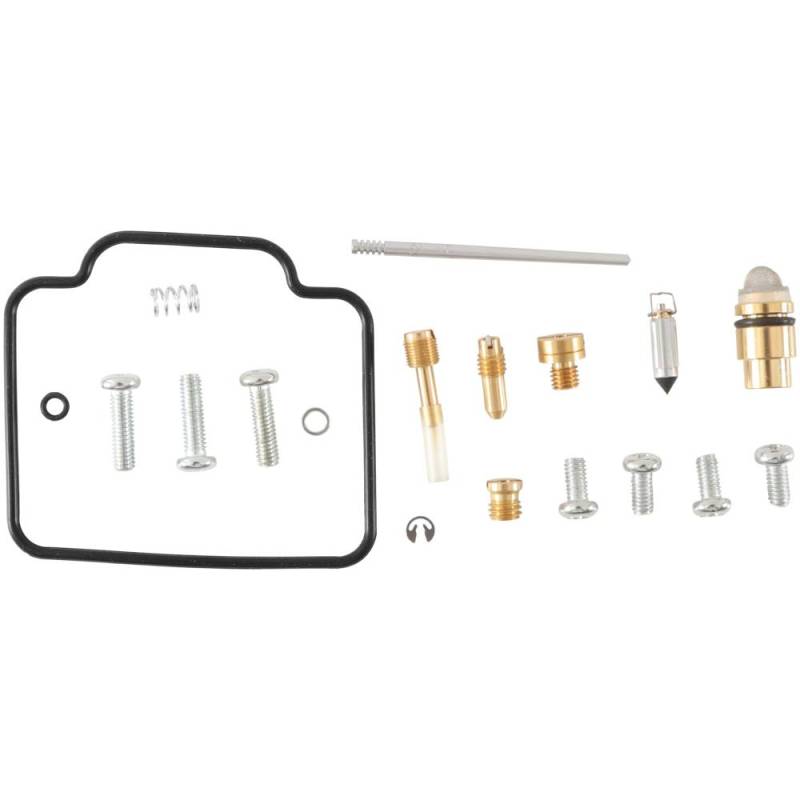

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $134.80
Sale: $77.03
Save: 43%
Save: $57.77
Qty:
Free Shipping!

Description

SUZUKI LT-F500F QUADRUNNER 500 4x4 MANUAL:
• Suzuki LT-F500F QuadRunner 500 4x4 (1998)
• Suzuki LT-F500F QuadRunner 500 4x4 (1999)
• Suzuki LT-F500F QuadRunner 500 4x4 (2000)
• Suzuki LT-F500F QuadRunner 500 4x4 (2001)
• Suzuki LT-F500F QuadRunner 500 4x4 (2002)

ENGINE SPECIFICATIONS:
• 493cc Liquid-Cooled SOHC 4-Valve Single Cylinder Four-Stroke
• Bore x Stroke: 87.5mm x 82.0mm (3.45" x 3.23")
• Compression Ratio: 8.5:1
• SCEM-Plated Cylinder (Nickel-Silicon Coating — No Iron Liner)
• Piston Cooling Oil Jet
• Gear-Driven Counterbalancer
• Carburetor: 34mm CV-Type
• Ignition: Digital CDI with Automatic Decompression
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• Transmission: 5-Speed Manual with Automatic Centrifugal Clutch
• Sub-Transmission: Hi/Lo Range + Reverse
• Final Drive: Shaft
• Drive System: Full-Time 4WD with Limited-Slip Front Differential

CHASSIS:
• Front Suspension: Independent Double A-Arm, Dual Shocks, 5.1" Travel
• Rear Suspension: Straight-Axle Semi-Independent, Twin Shocks, 5.1" Travel
• Front Brakes: Dual Hydraulic Disc
• Rear Brake: Hydraulic Disc
• Wheelbase: 48"

MODEL LINEAGE:
• QuadRunner 500 LT-F500F (1998-2002) — 5-Speed Manual (THIS MODEL)
• QuadMaster 500 LT-A500F (2000-2001) — CVT Automatic Version
• Vinson 500 (2002-2007) — Successor to Both
• KingQuad 500 (2009+) — Current Model
