Carburetor Rebuild Kit Compatible With Yamaha Yfm125 Grizzly 125 2004-2013 124Cc Mikuni Vm18sh Carb

26-1251A1
OEM PART NUMBERS:
• Yamaha: 5HH-14190-18-00 (Carburetor Repair Kit)
• Yamaha: 5VJ-14101-10-00 (Carburetor Assembly)
• Yamaha: 5VJ-14101-00-00 (Carburetor Assembly)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Mikuni VM18SH
• Main Jet: #77.5
• Pilot Jet: #12.5

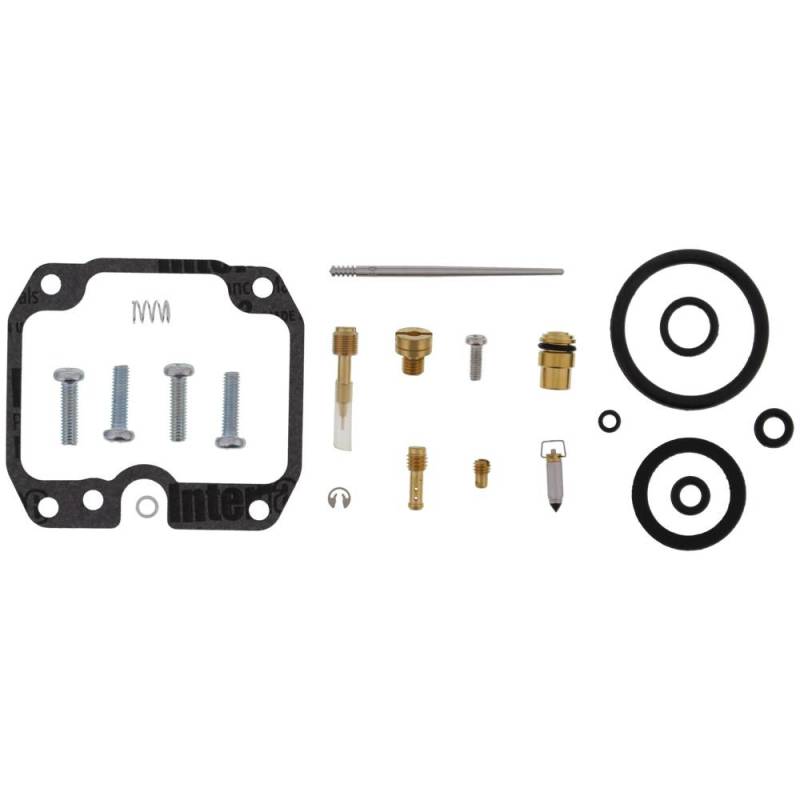

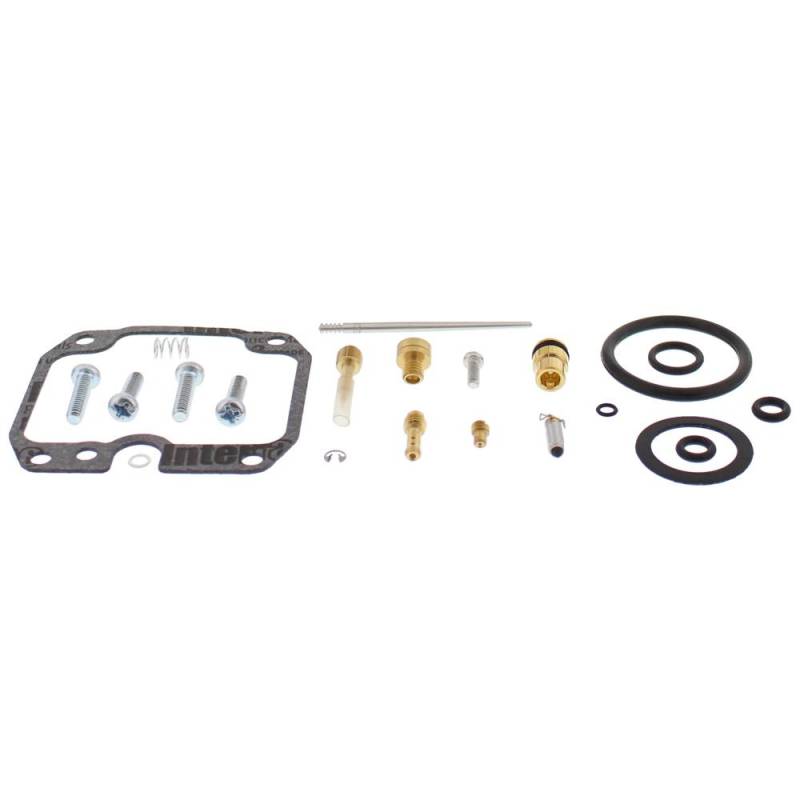

• Kit Contents: Jet Needle, Pilot Screw, Spring, Needle and Seat, E-Clip, Flat Washer, 6 O-Rings, Float Chamber Gasket, 4x 4mm-0.70x14mm Pan Head Bolts, 1x 4mm-0.70x8mm Pan Head Bolt
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• OEM Jet Sizes Included
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $147.79
Sale: $84.45
Save: 43%
Save: $63.34
Qty:
Free Shipping!

Description

YAMAHA YFM125 GRIZZLY 125 APPLICATIONS:
• Yamaha YFM125 Grizzly 125 (2004)
• Yamaha YFM125 Grizzly 125 (2005)
• Yamaha YFM125 Grizzly 125 (2006)
• Yamaha YFM125 Grizzly 125 (2007)
• Yamaha YFM125 Grizzly 125 (2008)
• Yamaha YFM125 Grizzly 125 (2009)
• Yamaha YFM125 Grizzly 125 Automatic (2010)
• Yamaha YFM125 Grizzly 125 Automatic (2011)
• Yamaha YFM125 Grizzly 125 Automatic (2012)
• Yamaha YFM125 Grizzly 125 Automatic (2013)

ENGINE SPECIFICATIONS:
• Engine: 124cc Air-Cooled 4-Stroke SOHC Single-Cylinder
• Bore x Stroke: 49mm x 66mm
• Compression Ratio: 9.0:1
• Carburetor: Mikuni VM18SH
• Transmission: V-Belt Automatic (CVT) with Forward, Neutral, Reverse
• Final Drive: O-Ring Chain
• Starting: Electric
• Drive: 2WD (Rear-Wheel Drive)
• Brakes: Dual Sealed Drum (Front), Sealed Drum (Rear)
• Dry Weight: 306 lbs
• Throttle Limiter: Adjustable (For Younger Riders)
• Minimum Rider Age: 16 Years
• Category: Youth / Entry-Level Utility ATV

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.1 lbs.
  • W3.6500” x H0.8000” x L5.6000”
