Carburetor Compatible With Command Cv12.5 Cv13 Cv14 Cv15 Cv16 Ch11 Ch13 Ch14 Ch15 398Cc 426Cc Ohv 12

OEM PART NUMBERS:
• Kohler: 12 853 57-S / 1285357S (superseded)
• Kohler: 12 853 139-S / 12853139S (current)
• Kohler: 12 853 80-S / 1285380S (superseded)
• Kohler: 12 853 82-S / 1285382S (superseded by 12 853 139-S)
• Kohler: 12 853 01 / 1285301 (superseded)

SPECIFICATIONS:
• Type: Carburetor — Float Fixed Main Jet
• Engine Series: Kohler Command Single Cylinder
• Configuration: Single Cylinder OHV 4-Stroke Air-Cooled
• Displacement: 398cc-426cc (24.3-26.0 cu in)
• Bore: 87.0mm-90.0mm (3.43"-3.60")
• Stroke: 67.0mm (2.64")
• Compression Ratio: 8.5:1
• Power Range: 11HP-16HP
• Oil Capacity: 1.9L (2.0 US qt)
• Ignition: Electronic Magneto
• Spark Plug: Champion RC12YC
• Lubrication: Full-Pressure with Gerotor Oil Pump
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Condition: New

APPLICATION:
• CV12.5 / CV13 / CV14 / CV15 / CV16 Command Vertical Shaft (12.5HP-16HP)
• CH11 / CH13 / CH14 / CH15 Command Horizontal Shaft (11HP-15HP)
• Lawn Mowers, Riding Mowers, Lawn Tractors, Zero-Turn Mowers
• Does not fit all applications — verify OEM part number by referring to engine model and spec

Command Series Carburetor — 12 853 57-S / 12 853 80-S / 12 853 82-S / 12 853 139-S

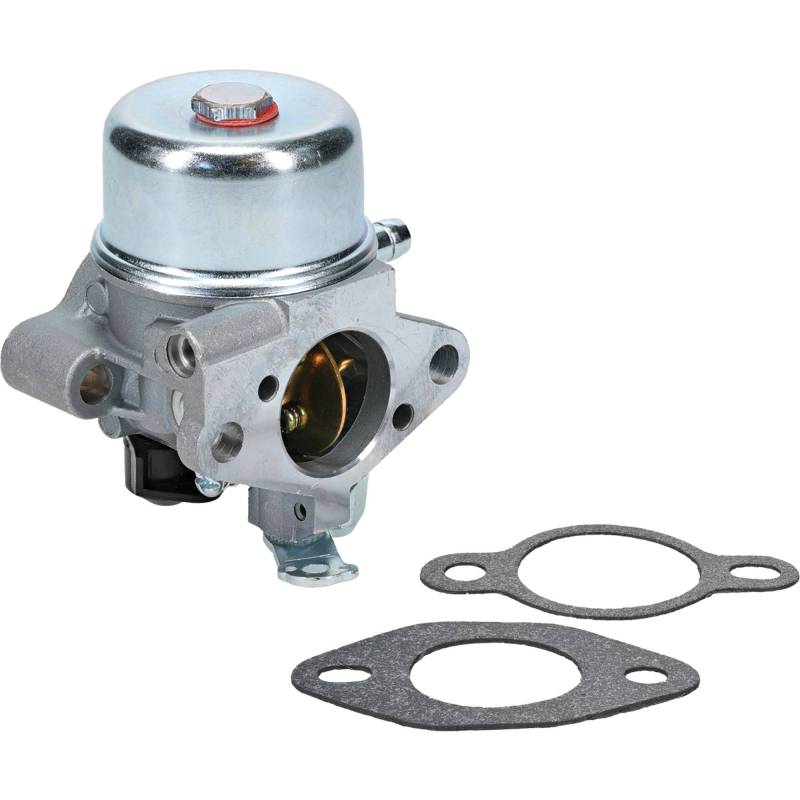

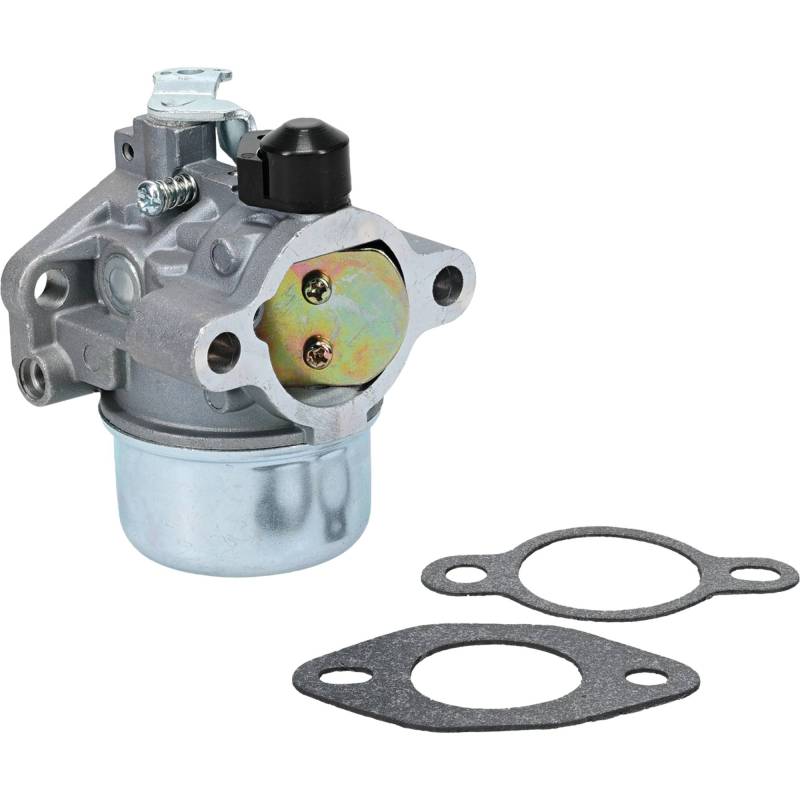

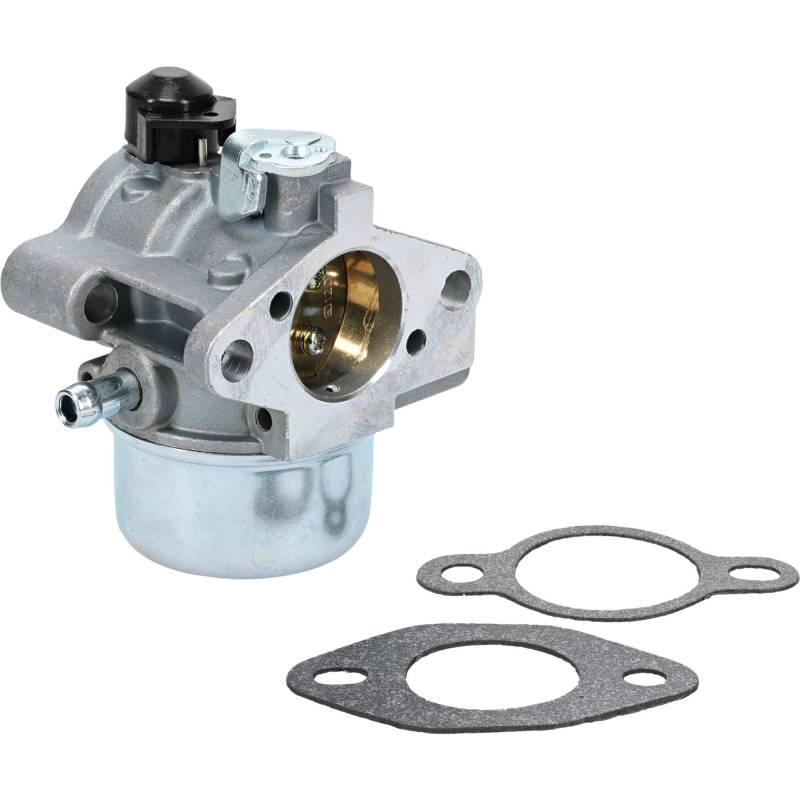

New carburetor for Kohler Command single cylinder engines. Replaces 12 853 57-S, 12 853 80-S, 12 853 82-S, and current 12 853 139-S, also supersedes 12 853 01. Fits CH11 through CH15 horizontal and CV12.5 through CV16 vertical shaft engines. Single cylinder OHV 4-stroke air-cooled, 398cc to 426cc. Electronic magneto ignition with Champion RC12YC spark plug.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
