OEM PART NUMBERS:
• Kohler: 17 853 113-S / 17853113S (current)
• Superseded: 17 853 53-S / 1785353S
• Superseded: 17 853 13-S / 1785313S
• Superseded: 17 853 96-S / 1785396S
SPECIFICATIONS:
• Type: Carburetor Kit Complete with Gaskets
• Engine Series: Command PRO CH440
• Displacement: 429cc (24.7 cu in)
• Bore x Stroke: 89.0mm x 69.0mm (3.50" x 2.72")
• Horsepower: 14 HP (10.5 kW) at 3,600 RPM
• Gross Torque: 22.7 ft-lbs (30.8 Nm) at 2,800 RPM
• Compression Ratio: 8.0:1
• Carburetor Type: Fixed Main Jet
• Cylinder: Cast Iron Liner, Aluminum Block
• Ignition: Electronic
• Dry Weight: 72.8 lbs (33 kg)
• Ethanol: Not compatible with greater than 10% ethanol fuel
• Condition: New
APPLICATION:
• Command PRO CH440 429cc 14HP single cylinder OHV horizontal shaft engine
• Generators, pressure washers, pumps, welders, log splitters, air compressors
• Concrete equipment, go-karts, UTVs, golf carts, tillers, edgers
• Does not fit all CH440 applications — verify part number by referring to model specifications
Replacement Carburetor — Kohler 17 853 113-S / 17 853 53-S / 17 853 13-S

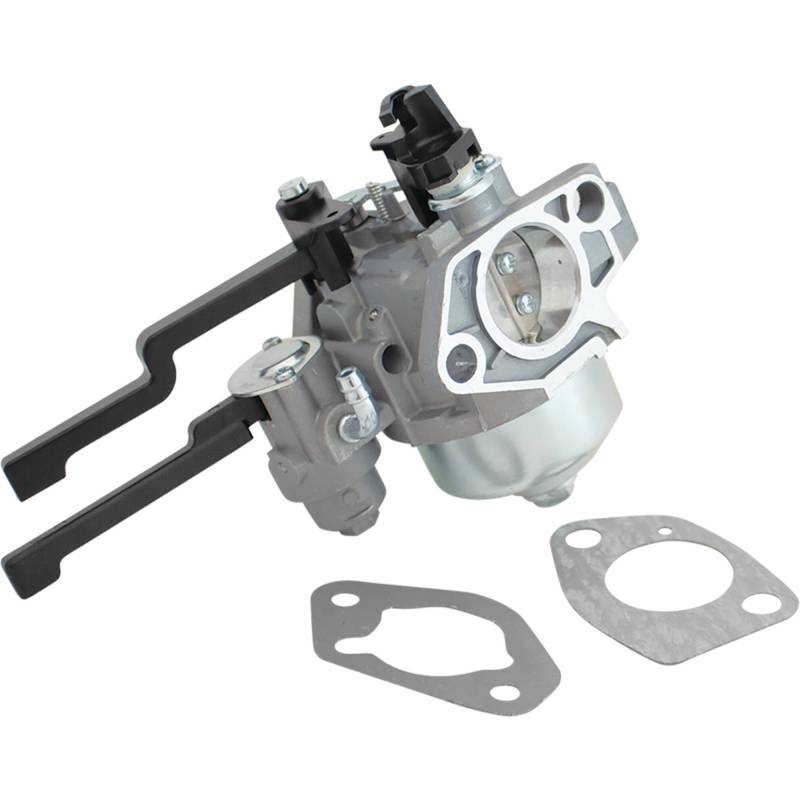

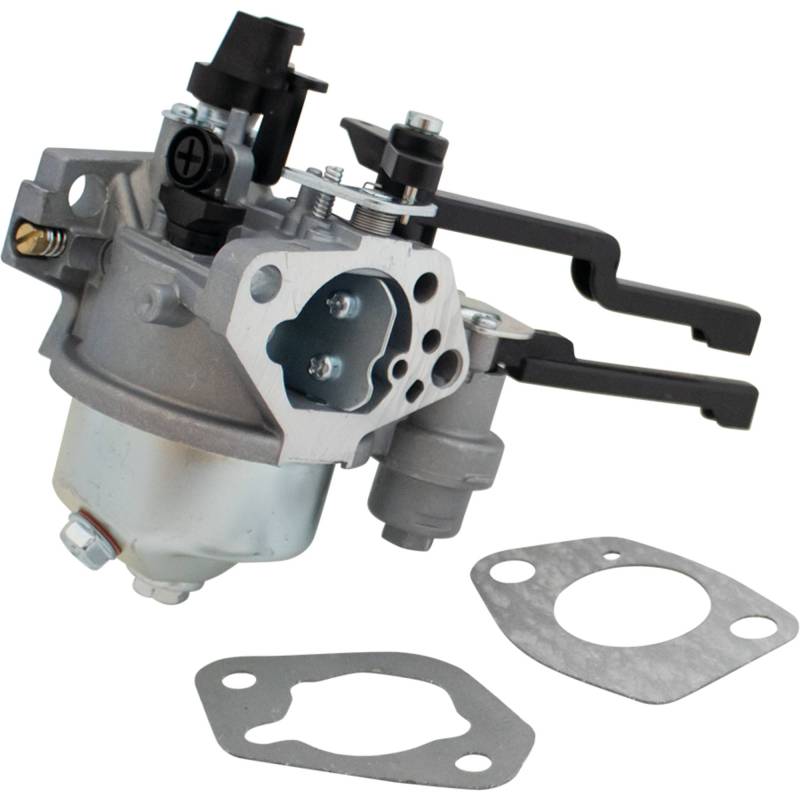

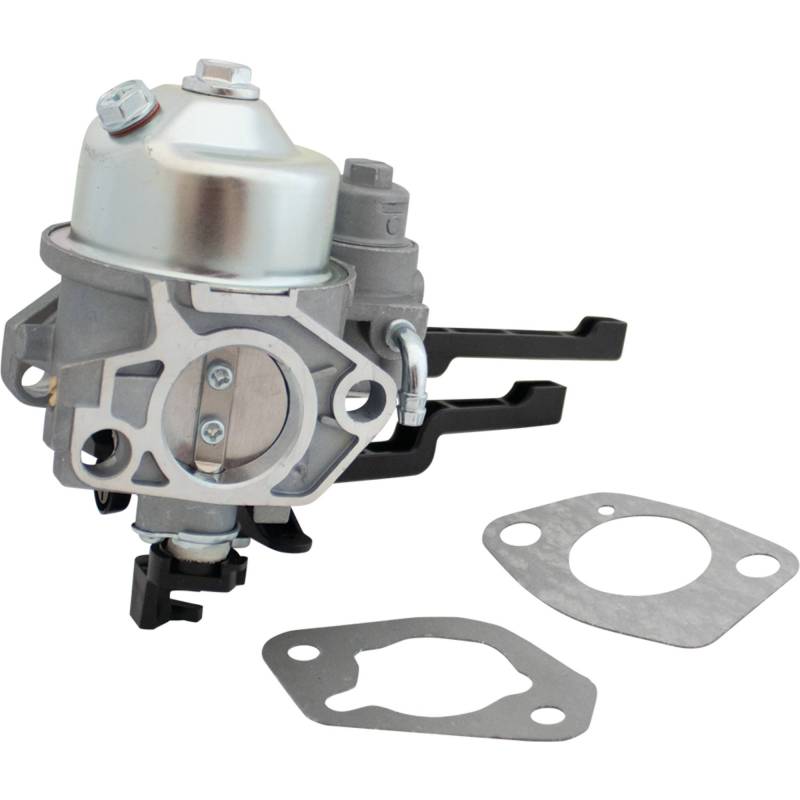

New complete carburetor kit for Command PRO CH440 single cylinder OHV engines producing 14 HP from 429cc displacement. Replaces 17 853 113-S, 17 853 53-S, 17 853 13-S, and 17 853 96-S. Fixed main jet design with electronic ignition, cast iron cylinder liner, and forged-steel crankshaft. Includes mounting gaskets. Not compatible with greater than 10% ethanol fuel.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
