OEM PART NUMBERS:
• AYP: 3555R / 583774101 / 6941R
• Cub Cadet: 492103-R1 / IH-492103-R1
• Scag: 48088 / 48530
• Ford/New Holland: 236914
• Lawn-Boy: 236914
• Husqvarna: 505247401 / 703107
• Goodyear: 851030 • Gates: 69103 • Dayco: L5103
• Yamaha: LB103 • Reference: B100 / 5L1030
SPECIFICATIONS:
• Belt Type: B/5L Section V-Belt
• Outside Circumference: 103" (2,616mm)
• Inside Circumference: 100" (2,540mm)
• Top Width: 5/8" (15.88mm)
• Depth: 7/16" (11.11mm)
• Construction: 2-Ply Neoprene Cover
• Cord Material: Aramid (Kevlar)
• Resistance: Oil and Heat Resistant
• Cut Resistance: High
• Anti-Stretch Properties
• Condition: New
APPLICATION:
• Scag SWM/SWZ Walk-Behind Mowers 52"/61" Deck
• Husqvarna WH3615/WH3616/WH4817/WH5217 Walk-Behind
• Craftsman 917253260 Riding Mower
• Various AYP, Cub Cadet, Ford/New Holland, Lawn-Boy Applications
• Fits Various Applications by Part Number

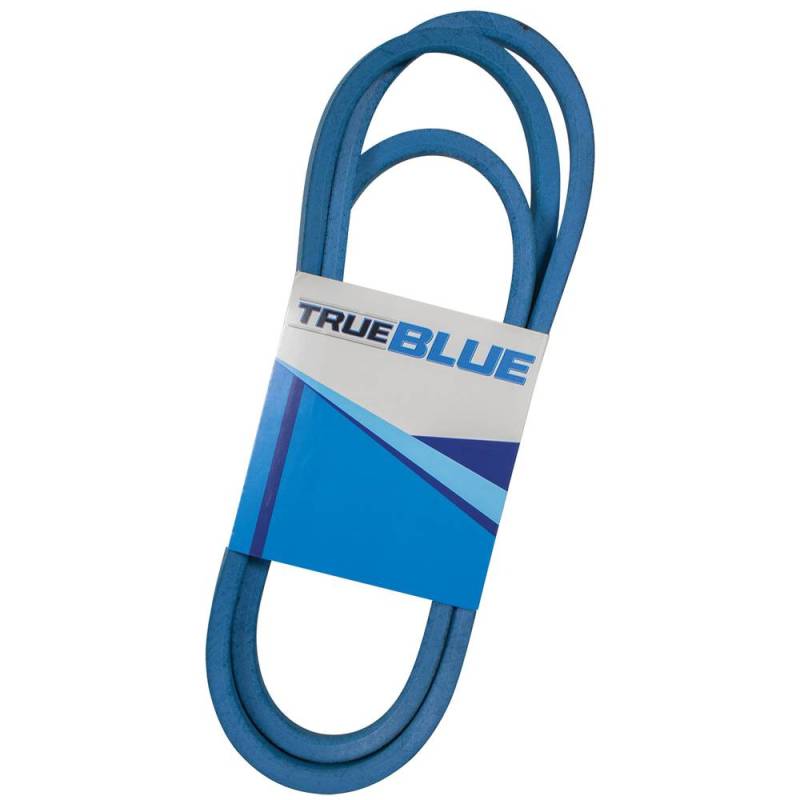

Aramid Deck Belt — Husqvarna WH Series and Scag Walk-Behind
High-performance V-belt for Husqvarna WH3615/WH4817/WH5217 and Scag SWZ/SWM walk-behind mowers. Replaces Husqvarna 505247401/703107, AYP 3555R, and Cub Cadet 492103-R1. Aramid cord with 2-ply neoprene cover. Verify OEM number before ordering.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
