OEM PART NUMBERS:
• AYP: 3555R / 583774101 / 6941R
• Cub Cadet: 492103-R1 / IH-492103-R1
• Scag: 48088 / 48530
• Ford/New Holland: 236914
• Lawn-Boy: 236914
• Husqvarna: 505247401 / 703107
• Goodyear: 851030 • Gates: 69103 • Dayco: L5103
• Yamaha: LB103 • Reference: B100 / 5L1030
SPECIFICATIONS:
• Belt Type: B/5L Section V-Belt
• Outside Circumference: 103" (2,616mm)
• Inside Circumference: 100" (2,540mm)
• Top Width: 5/8" (15.88mm)
• Depth: 7/16" (11.11mm)
• Construction: 2-Ply Neoprene Cover
• Cord Material: Aramid (Kevlar)
• Resistance: Oil and Heat Resistant
• Cut Resistance: High
• Anti-Stretch Properties
• Condition: New
APPLICATION:
• Scag SWM/SWZ Walk-Behind Mowers 52"/61" Deck
• Husqvarna WH3615/WH3616/WH4817/WH5217 Walk-Behind
• Craftsman 917253260 Riding Mower
• Various AYP, Cub Cadet, Ford/New Holland, Lawn-Boy Applications
• Fits Various Applications by Part Number

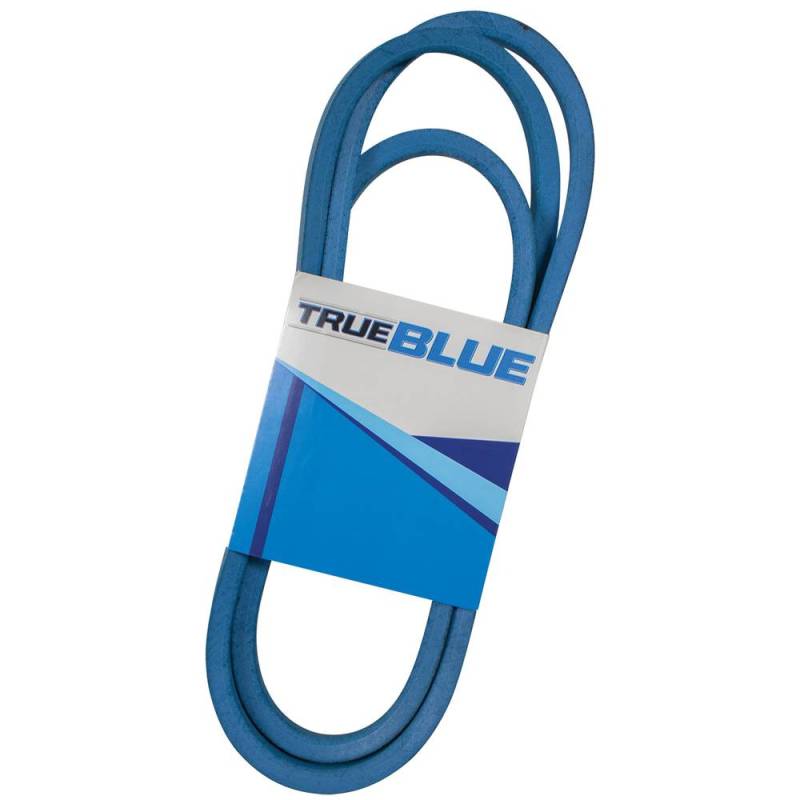

Replacement Deck Belt — AYP Craftsman Scag Walk-Behind
Heavy-duty aramid cord V-belt for mower deck drive systems. Replaces AYP 3555R/6941R, Cub Cadet 492103-R1, Scag 48088/48530, and Ford/New Holland 236914. Fits Scag SWZ/SWM walk-behinds and Husqvarna WH series. Confirm equipment part number before ordering.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
