OEM PART NUMBERS:
• Scag: 48088 / 48530
• AYP: 3555R / 583774101 / 6941R
• Cub Cadet: 492103-R1 / IH-492103-R1
• Ford/New Holland: 236914
• Lawn-Boy: 236914
• Husqvarna: 505247401 / 703107
• Dayco: L5103 • Gates: 69103 • Goodyear: 851030
• Yamaha: LB103 • Reference: B100 / 5L1030
SPECIFICATIONS:
• Belt Type: B/5L Section V-Belt
• Outside Circumference: 103" (2,616mm)
• Inside Circumference: 100" (2,540mm)
• Top Width: 5/8" (15.88mm)
• Depth: 7/16" (11.11mm)
• Construction: 2-Ply Neoprene Cover
• Cord Material: Aramid (Kevlar)
• Resistance: Oil and Heat Resistant
• Cut Resistance: High
• Anti-Stretch Properties
• Condition: New
APPLICATION:
• Scag SWM/SWZ Walk-Behind Mowers 52"/61" Deck
• Husqvarna WH3615/WH3616/WH4817/WH5217 Walk-Behind
• Craftsman 917253260 Riding Mower
• Various AYP, Cub Cadet, Ford/New Holland, Lawn-Boy Applications
• Fits Various Applications by Part Number

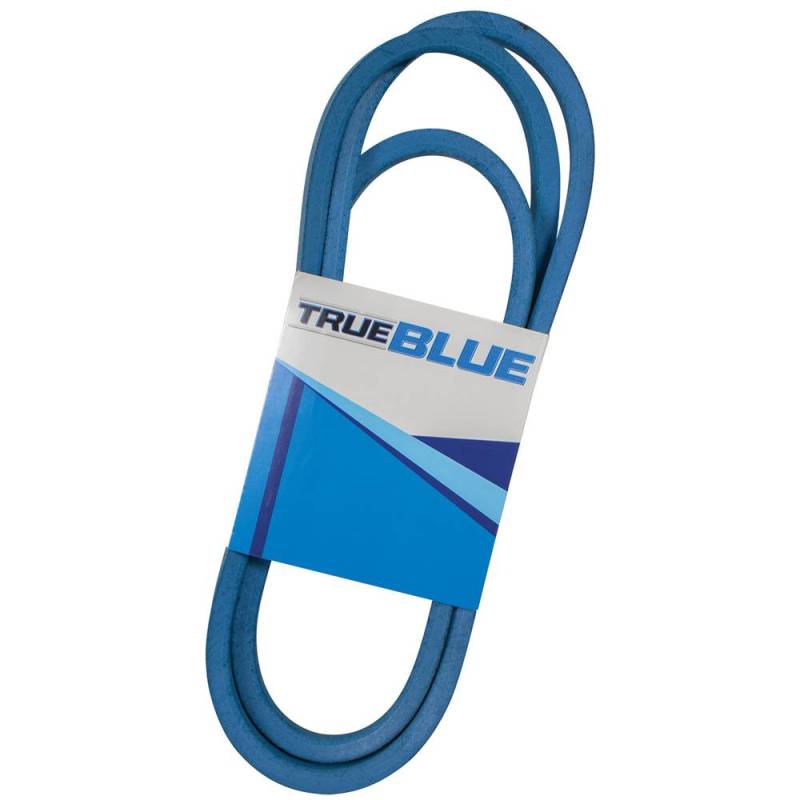

Replacement Deck Belt — AYP Craftsman Scag Walk-Behind
Heavy-duty aramid cord V-belt for mower deck drive systems. Replaces AYP 3555R/6941R, Cub Cadet 492103-R1, Scag 48088/48530, and Ford/New Holland 236914. Fits Scag SWZ/SWM walk-behinds and Husqvarna WH series. Confirm equipment part number before ordering.
