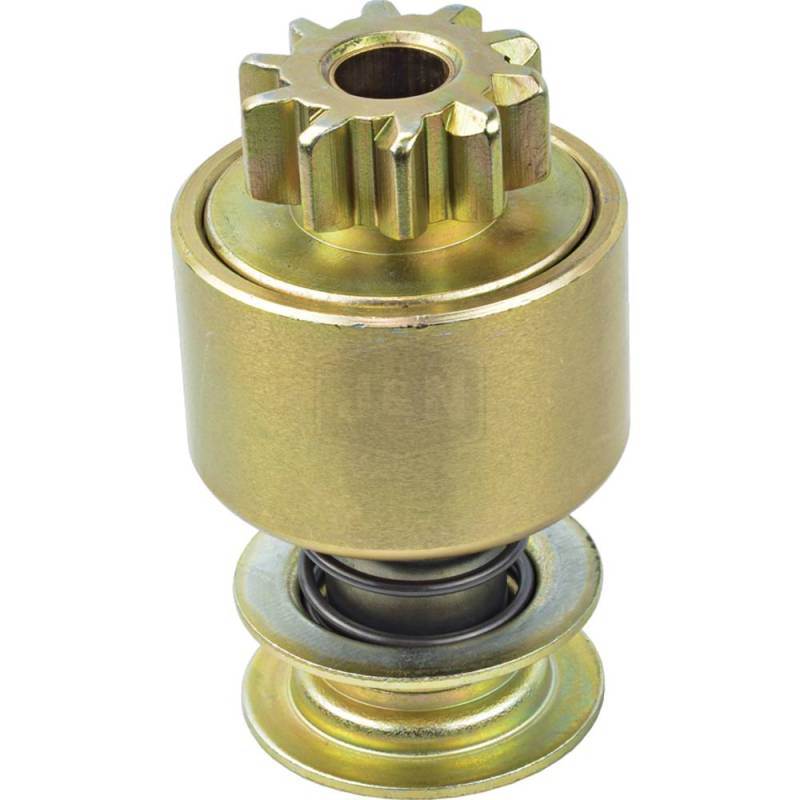

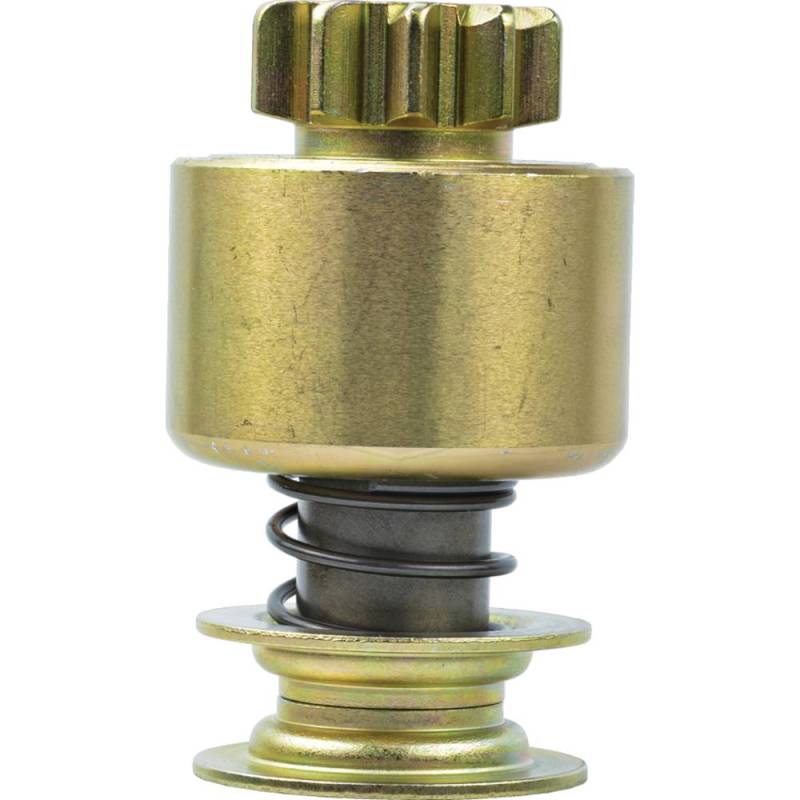

Starter Drive Assembly Compatible With International 1256 1456 1466 1468 1486 1566 1586 3688 Hydro

Case IH :
• 146484C1 (Starter Drive Assembly — Spragg)
• 1651486C91 (Starter Drive Assembly)

Delco :
• 1877353 (Starter Drive — Spragg)
• 1932890 (Starter Drive — Spragg)
• 480434 (Starter Drive Assembly)

Cross-Reference:
• 11A-D279LH / 4-279LH (Starter Drive)
• SDR5093 (Starter Drive — Spragg)

Facet Drives:
• 10004 / 10530 (Drive Assembly)

:
• Stens 220-12410 (Drive Assembly — Spragg)
• 220-12028 / 220-12104 / 220-12109 / 220-12246 (Cross-Reference)
• 220-12311 / 220-12409 (Cross-Reference)

Product Specifications:
• Type: Starter Drive Assembly — Spragg
• Rotation: Counter Clockwise (CCW)
• Number of Teeth: 10
• Inner Diameter (ID): 14.300mm
• Gear Outer Diameter (OD): 39.500mm
• Clutch Gear Outer Diameter (OD): 53.600mm
• Number of Splines: 3
• Spline Type: Spiral
• Drive Type: Spragg
• Wet Clutch Seal: No
• Compatible Starters: Delco 10MT / 20MT / 25MT / 27MT / 30MT / 35MT / SD300
• Application: Case IH / International Harvester Tractors / Combines / Agricultural Equipment
