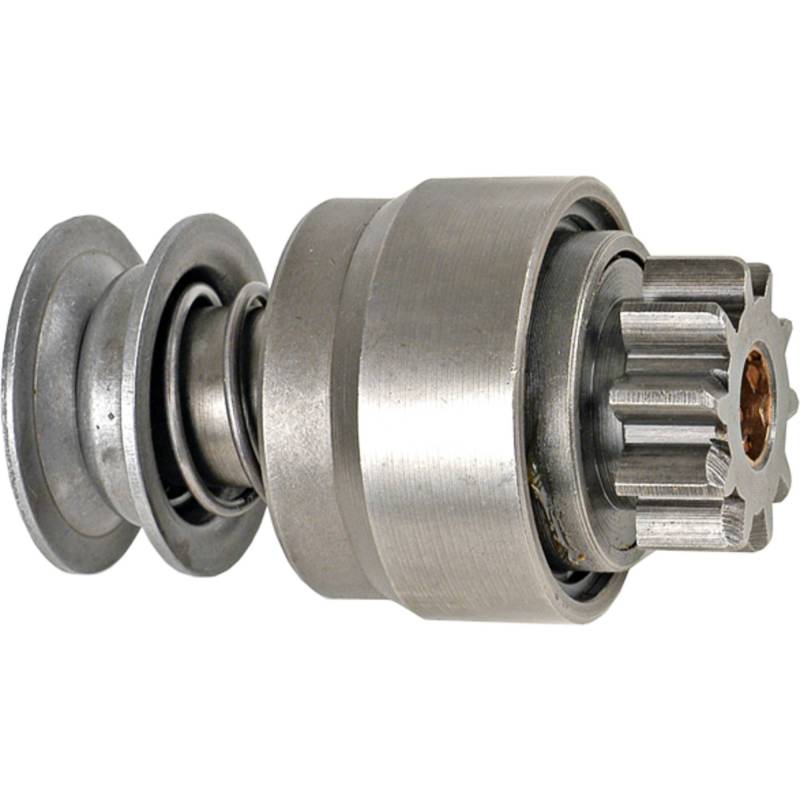

Starter Drive Assembly Compatible With International 706 756 766 806 826 856 886 966 1066 1086

Delco :
• 480434 (Starter Drive Assembly)
• 1877350 (Starter Drive Assembly)

Cross-Reference:
• SDR5026 (Starter Drive)
• 4-479LH / 3-264 (Starter Drive)
• 54-159 / 61-01-3436 / 61-01-3476 (Starter Drive)

Facet Drives:
• 10004 / 10530 (Drive Assembly)

:
• Stens 220-12311 (Drive Assembly)
• 220-12028 / 220-12104 / 220-12109 / 220-12246 (Cross-Reference)
• 220-12409 / 220-12410 (Cross-Reference)

Product Specifications:
• Type: Starter Drive Assembly — Ratchet
• Rotation: Counter Clockwise (CCW)
• Number of Teeth: 10
• Inner Diameter (ID): 14.300mm
• Gear Outer Diameter (OD): 39.500mm
• Length: 96.500mm
• Number of Splines: 3
• Spline Type: Spiral
• Drive Type: Ratchet
• Specification: Non-Indexing Small Pinion
• Wet Clutch Seal: No
• Compatible Starters: Delco 10MT / 20MT / 22MT / 25MT / 27MT / 30MT / 35MT / SD300
• Application: International Harvester Tractors / Combines / Agricultural Equipment
