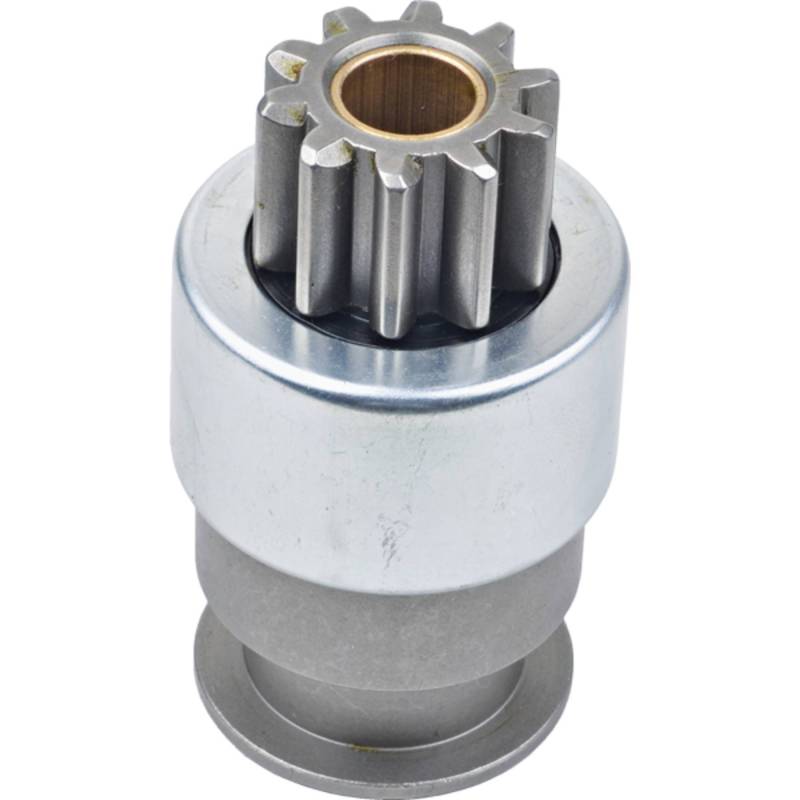

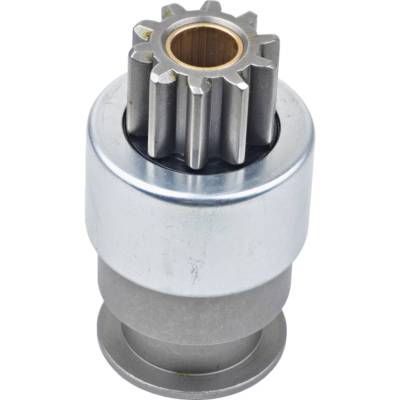

Starter Drive Assembly Compatible With Starters 10 Tooth Cw 17Mm Id 40Mm Gear Od 102Mm 4 Spiral

John Deere :
• AR54992 / 54992 (Starter Drive Assembly)

Caterpillar :
• 4N7523 (Starter Drive)

Case :
• A47788 (Starter Drive)

Allis Chalmers :
• 02683662 / 02698850 (Starter Drive)

:
• 028300-1280 / 028300-1660 / ND028300-1280 (Drive Assembly)

Cross-Reference:
• SND5009 / ZN0434 (Starter Drive)
• 11-ND682 / 4-682 (Starter Drive)
• ZEN 0434 / 1.01.0434.0 (Starter Drive)

:
• Stens 220-52070 / 220-52003 (Drive Assembly)

Product Specifications:
• Type: Starter Drive Assembly — Roller
• Rotation: Clockwise (CW)
• Number of Teeth: 10
• Inner Diameter (ID): 17.000mm
• Gear Outer Diameter (OD): 40.000mm
• Length: 102.000mm
• Number of Splines: 4
• Spline Type: Spiral
• Drive Type: Roller
• Wet Clutch Seal: No
• Compatible Starters: 2.5kW / 4.0kW DD — CW Rotation
• Application: John Deere / Caterpillar / Case / Allis Chalmers
