John Deere :
• AR88880 (Starter Drive Assembly)
• AR76841 (Starter Drive Assembly)
• AR84239 (Starter Drive Assembly)
• AR44700 (Starter Drive Assembly)
• R39846 (Starter Drive Assembly)
Allis Chalmers :
• 70252044 (Starter Drive Assembly)
• 02620443 (Starter Drive Assembly)
Case :
• A47178 (Starter Drive Assembly)
Caterpillar :
• 1169081 (Starter Drive Assembly)
• 1015412 (Starter Drive Assembly)
• 11860948 (Starter Drive Assembly)
Oliver / White :
• 605961-AS (Starter Drive Assembly)
Massey Ferguson :
• 1755-245-M91 (Starter Drive Assembly)
Prestolite / Leece Neville:
• MO290-4279 (Prestolite — Starter Drive)
• 653728 (Leece Neville — Starter Drive)
• 93090 (Leece Neville — Starter Drive)
Delco :
• 480220 / 480228 / 480305 (Starter Drive Assembly)
Cross-Reference:
• 11R-DE479 / 3-479 (Starter Drive)
• SDR5018 / ZN0568 / EBB138 / DRF3002S (Starter Drive)
• Facet Drives: 10002 / 10057 / 10528 / 10540
:
• Stens 220-12310 (Drive Assembly)
• 30-3151492 / 59-198 / 90-2175 (Starter Drive)

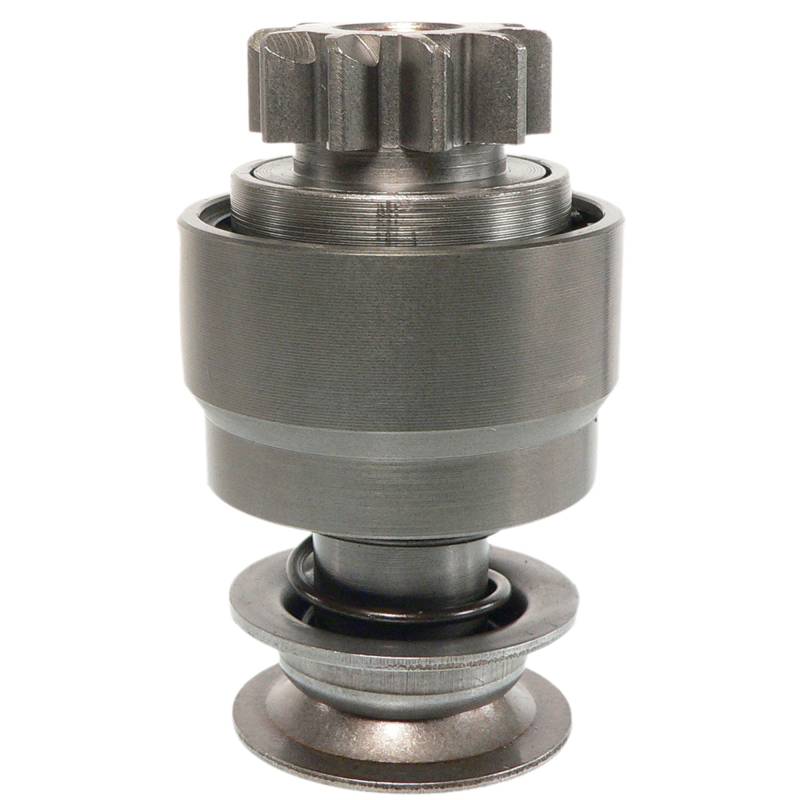

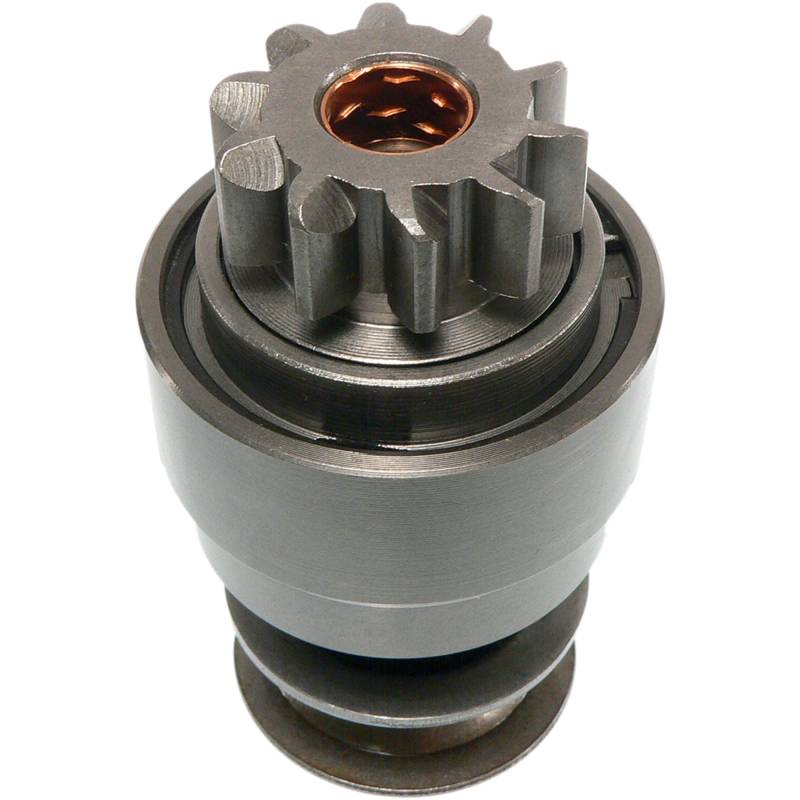

Product Specifications:
• Type: Starter Drive Assembly — Ratchet
• Rotation: Clockwise (CW)
• Number of Teeth: 10
• Inner Diameter (ID): 14.300mm
• Gear Outer Diameter (OD): 39.500mm
• Number of Splines: 3
• Spline Type: Spiral
• Drive Type: Ratchet
• Specification: Non-Indexing Small Pinion
• Wet Clutch Seal: No
• Compatible Starters: Delco 10MT / 20MT / 22MT / 25MT / 27MT / 30MT / 35MT / SD300
• Application: John Deere / Allis Chalmers / Case / Caterpillar / Oliver / White / Massey Ferguson
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
