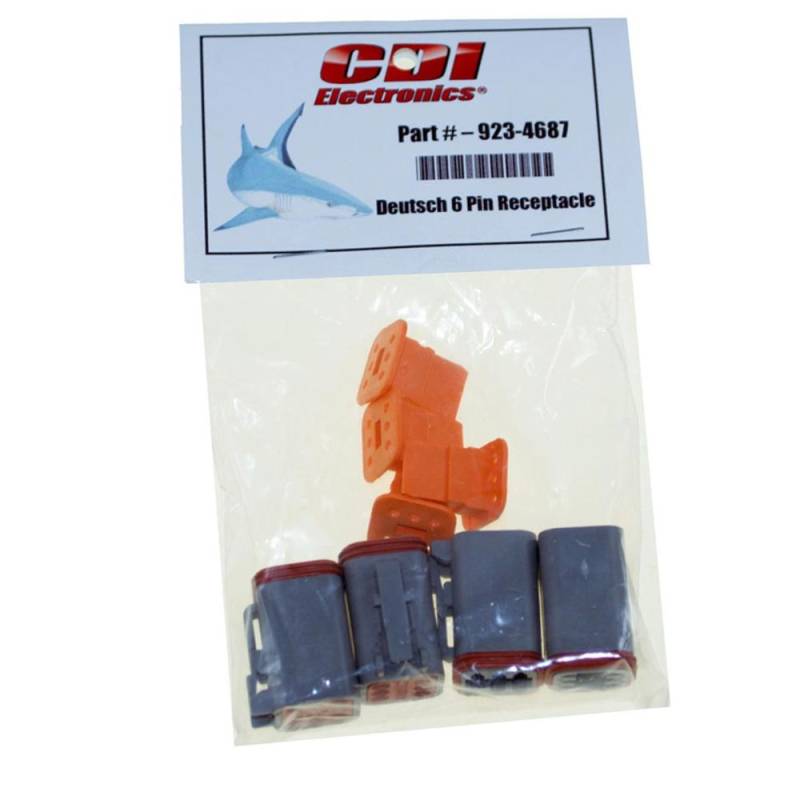

6-Pin Waterproof Deutsch Receptacle With Locking Wedge Female Connector For Outboard Engine Harness

CDI Electronics Part Numbers:
• 923-4687 (CDI Deutsch 6-Pin Female Connector with Locking Wedge, 4-Pack)
• 923-4688 (CDI Deutsch 6-Pin Plug Connector, Mating Half)

OEM Johnson/Evinrude/OMC/BRP Part Numbers:
• 514687 / 514683 (OEM 6-Pin Deutsch Receptacle)
• 514688 / 514684 (OEM 6-Pin Deutsch Plug)

Deutsch DT Series Equivalent Part Numbers:
• DT06-6S (6-Way Deutsch DT Receptacle Housing)
• W6S (Deutsch DT 6-Pin Wedgelock for Receptacle)
• DT04-6P / DT06-6S (Complete 6-Way DT Plug and Socket Set)

Related CDI Deutsch Connectors:
• 923-6295 / 923-4696 (2-Pin Deutsch Plug / Receptacle)
• 923-4685 / 923-4686 (3-Pin Deutsch Plug / Receptacle)
• 923-6529 / 923-6509 (4-Pin Deutsch Plug / Receptacle)
• 923-4688 / 923-4687 (6-Pin Deutsch Plug / Receptacle)

SPECIFICATIONS:
• Connector Series: Deutsch DT (6-Way)
• Pin Count: 6
• Connector Type: Receptacle (Female)
• Wire Gauge: 14-20 AWG (Size 16 Contacts)
• Current Rating: 13 Amps Continuous Per Pin
• Housing Material: Thermoplastic (Gray)
• Seal Material: Silicone
• Wedgelock Material: PBT (Polybutylene Terephthalate)
• IP Rating: IP67 Waterproof
• Operating Temperature: -55 to 125 Degrees C
• Insulation Resistance: 1000 MOhm Minimum
• Mating Cycles: 100 Minimum
• Package Quantity: 4 Connectors Per Pack
• Includes: 6 Locking Wedges, Sealing Plugs for Unused Cavities

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
