6-Pin Waterproof Marine Deutsch Plug Connector With Locking Wedge For Engine Compatible With Johnson

CDI Electronics Part Numbers:

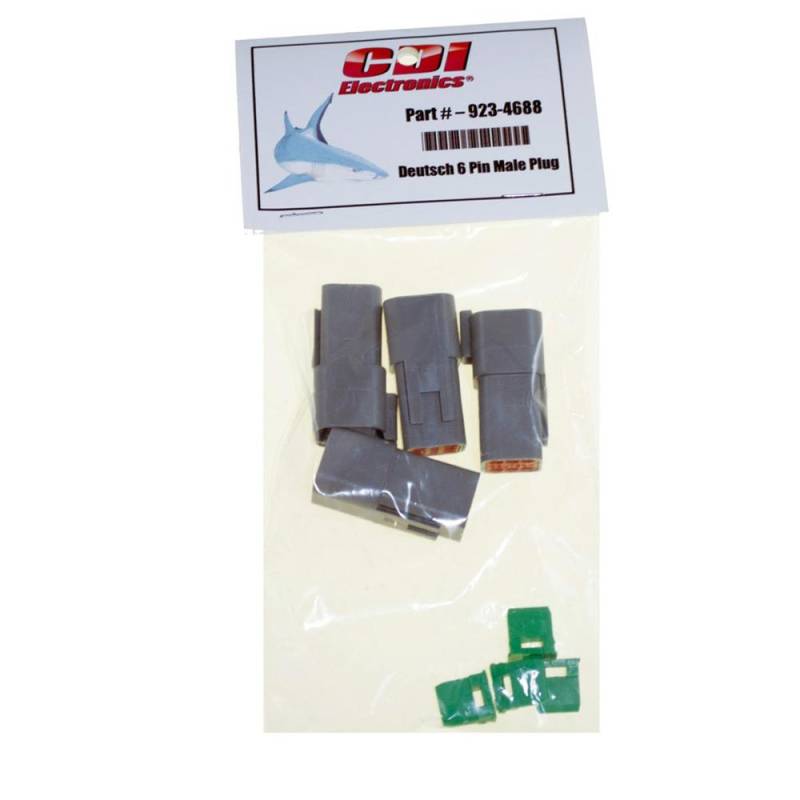

• 923-4688 (CDI Deutsch 6-Pin Male Connector with Locking Wedge, 4-Pack)
• 923-4687 (CDI Deutsch 6-Pin Receptacle Connector, Mating Half)

OEM Johnson/Evinrude/OMC/BRP Part Numbers:
• 514688 / 514684 (OEM 6-Pin Deutsch Plug)
• 514687 / 514683 (OEM 6-Pin Deutsch Receptacle)

Deutsch DT Series Equivalent Part Numbers:
• DT04-6P (6-Way Deutsch DT Plug Housing)
• W6P (Deutsch DT 6-Pin Wedgelock for Plug)
• DT04-6P / DT06-6S (Complete 6-Way DT Plug and Socket Set)

Related CDI Deutsch Connectors:
• 923-6295 / 923-4696 (2-Pin Deutsch Plug / Receptacle)
• 923-4685 / 923-4686 (3-Pin Deutsch Plug / Receptacle)
• 923-6529 / 923-6509 (4-Pin Deutsch Plug / Receptacle)
• 923-4688 / 923-4687 (6-Pin Deutsch Plug / Receptacle)

SPECIFICATIONS:
• Connector Series: Deutsch DT (6-Way)
• Pin Count: 6
• Connector Type: Plug (Male)
• Wire Gauge: 14-20 AWG (Size 16 Contacts)
• Current Rating: 13 Amps Continuous Per Pin
• Housing Material: Thermoplastic (Gray)
• Seal Material: Silicone
• Wedgelock Material: PBT (Polybutylene Terephthalate)
• IP Rating: IP67 Waterproof
• Operating Temperature: -55 to 125 Degrees C
• Insulation Resistance: 1000 MOhm Minimum
• Mating Cycles: 100 Minimum
• Package Quantity: 4 Connectors Per Pack
• Includes: 6 Locking Wedges, Sealing Plugs for Unused Cavities
