New 14 Awg Yellow Marine Wire 100Ft Tinned Copper Class K Stranded Compatible With Marine 12V Dc

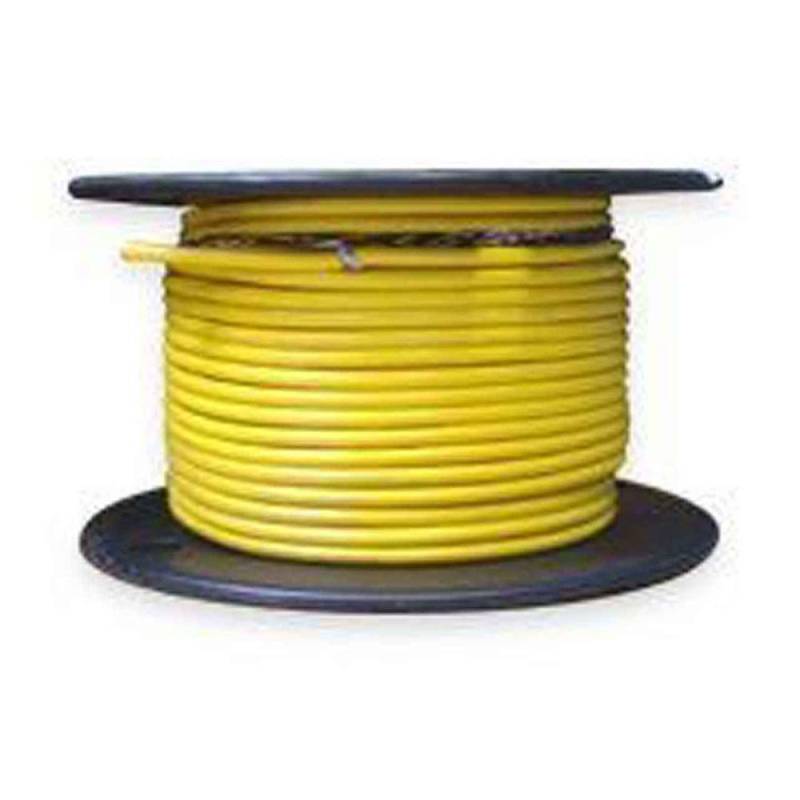

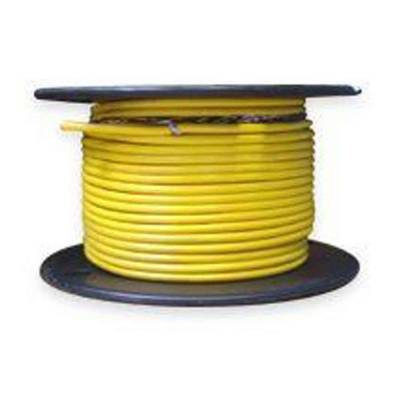

UNIVERSAL MARINE WIRE — 14 AWG YELLOW TINNED COPPER PRIMARY WIRE 100 FT SPOOL:

ABYC E-11 STANDARD — YELLOW COLOR USE (MODERN DC NEGATIVE):
Per ABYC E-11 marine electrical standards (2008 revision and later), YELLOW is the PREFERRED color for DC negative current-carrying conductors in new construction and modern installations. Yellow has replaced black as the recommended DC negative color for improved color identification and safety. This 14 AWG yellow marine wire is intended for branch circuit DC negative wiring up to approximately 15-20 amps continuous service.

COMMON 14 AWG YELLOW MARINE BRANCH CIRCUIT DC NEGATIVE APPLICATIONS:
• Modern ABYC-Compliant DC Negative Branch Circuit Wiring
• Distribution Panel Negative Branch Returns
• Individual Accessory Ground Returns
• Helm Electronics Negative Wiring (GPS, Chartplotters, Fishfinders, VHF)
• Cabin Lighting Circuit Returns
• Navigation Light Negative Returns (Bow, Stern, Anchor, Mast)
• Smaller Bilge Pump Returns (Up to 1100 GPH)
• Livewell and Aerator Pump Negative Wiring
• Stereo Speaker Negative Returns
• Cigarette Lighter / USB Outlet Negative Branches
• Trim Tab Indicator Light Negative
• Cabin Fan and Blower Returns
• Marine Horn Negative Feed
• Dashboard Gauge Light Returns
• New Construction Requiring Current ABYC E-11 Compliance
• Retrofit Installations Upgrading from Legacy Black to Modern Yellow Standard

NOT RECOMMENDED FOR (USE 12 AWG OR LARGER):
• Main Battery Negative Cables
• Engine Starter Ground Cables
• Windlass and Anchor Winch Negative Returns
• Bow Thruster Negative Feeds
• Large Inverter Ground Connections (1000W+)
• High-Current Trolling Motor Main Negative Feeds (24V/36V Systems)

COMPATIBLE VESSEL TYPES:
• All Powerboats — Center Console, Cuddy Cabin, Express Cruiser, Walk-Around
• All Sailboats — Day Sailers, Cruisers, Racing Yachts, Liveaboards
• Pontoon Boats and Houseboats
• Bass Boats and Bay Boats
• Personal Watercraft (PWC) Wiring Harness Repairs
• Outboard Motor Wiring Harness Repairs
• Sterndrive and Inboard Engine Compartment Branch Wiring
• New ABYC-Compliant Boat Construction

STANDARDS COMPLIANCE:
• UL Listed UL1426 Boat Cable Standard
• ABYC E-11 Compliant (American Boat & Yacht Council)
• United States Coast Guard (USCG) Specifications
• Made in USA

FITMENT NOTE:
Universal marine primary wire — fits any marine application requiring 14 AWG yellow DC negative branch circuit conductor. Not vehicle-specific. Per modern ABYC E-11 standards (post-2008), YELLOW is the preferred color for DC negative — replacing black in new construction. Common DC pairing: red positive (COB-A1014T-01) + yellow negative (this item) for modern ABYC-compliant 12V branch circuits.
