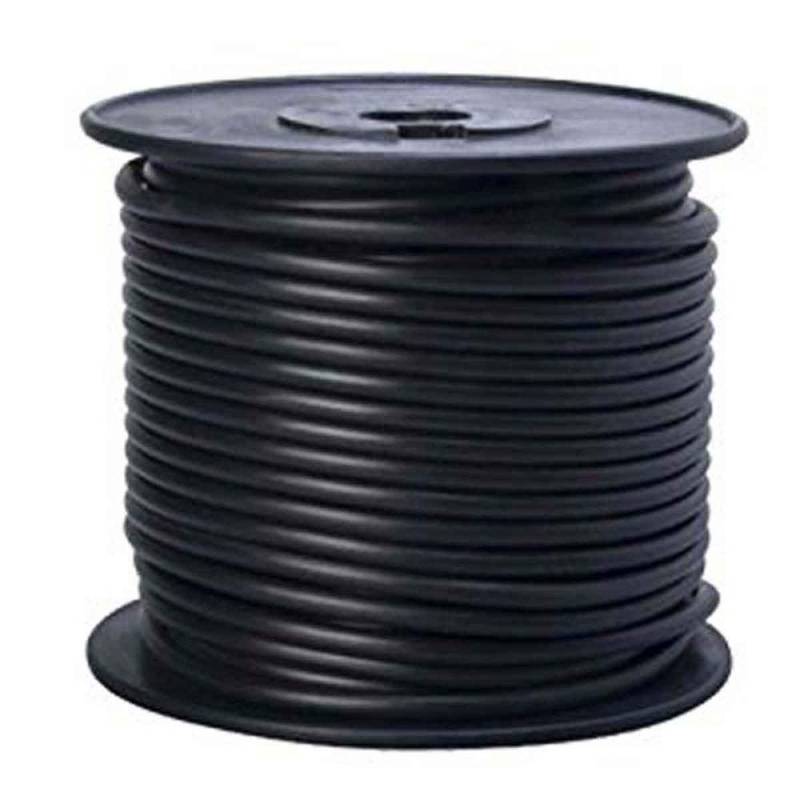

New 12 Awg Black Marine Wire 100Ft Tinned Copper Class K Stranded Compatible With Marine 12V Dc

UNIVERSAL MARINE WIRE — 12 AWG BLACK TINNED COPPER PRIMARY WIRE 100 FT SPOOL:

ABYC E-11 STANDARD — BLACK COLOR USE (DC NEGATIVE / GROUND RETURN):
Per ABYC E-11 marine electrical standards, BLACK color wire is designated for DC negative current-carrying conductors and ground return paths. This 12 AWG black marine wire is intended for DC negative wiring up to approximately 25 amps continuous service. (Note: Modern ABYC E-11 lists yellow as preferred DC negative since 2008, but black remains widely used and acceptable.)

COMMON 12 AWG MARINE DC NEGATIVE / GROUND RETURN APPLICATIONS:
• Battery Negative Terminal to Main Negative Bus
• DC Negative Return from Distribution Panel to Battery Bank
• Negative Return Wire for Helm Electronics (GPS, Chartplotters, Fishfinders, VHF)
• Cabin Lighting Circuit Ground Returns
• Bilge Pump Ground Return
• Livewell and Aerator Pump Negative Wiring
• Navigation Light Ground Returns
• Stereo and Entertainment System Ground
• Accessory Outlet Negative (12V cigarette sockets, USB ports)
• Trim Tab Motor Ground Wiring
• Spotlight and Deck Light Negative Returns
• Marine Refrigerator and Freezer Ground Return
• Outboard Trim Pump Negative
• Trolling Motor Ground Return
• Engine Compartment Sensor Grounds

COMPATIBLE VESSEL TYPES:
• All Powerboats — Center Console, Cuddy Cabin, Express Cruiser, Walk-Around
• All Sailboats — Day Sailers, Cruisers, Racing Yachts
• Pontoon Boats and Houseboats
• Bass Boats and Bay Boats
• Personal Watercraft (PWC) Wiring Harness Repairs
• Outboard Motor Wiring Harness Repairs
• Sterndrive and Inboard Engine Compartment Wiring
• RV and Trailer Marine-Grade Negative Wiring

STANDARDS COMPLIANCE:
• UL Listed UL1426 Boat Cable Standard
• ABYC E-11 Compliant (American Boat & Yacht Council)
• United States Coast Guard (USCG) Specifications
• Made in USA

FITMENT NOTE:
Universal marine primary wire — fits any marine application requiring 12 AWG black DC negative or ground return conductor. Not vehicle-specific. Per ABYC E-11 standards, BLACK is for DC negative current-carrying conductors (different from GREEN which is for bonding/safety ground only). Common DC pairing: red positive (COB-A1012T-01) + black negative (this item) for standard 12V circuits.
