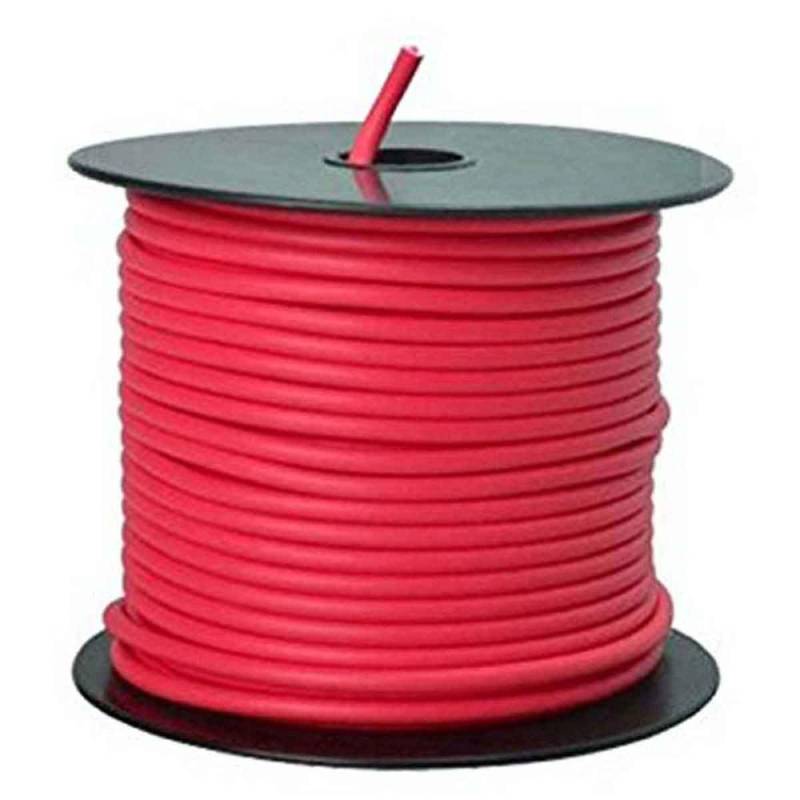

New 12 Awg Red Marine Wire 100Ft Tinned Copper Class K Stranded Compatible With Marine 12V Positive

(0) Reviews: Write first review
COB-A1012T-01A1
OEM PART NUMBERS:
• Cobra: COB-A1012T-01 / COBA1012T01
• Cobra: A1012T-01
• Cobra: A1012T-01-100

SPECIFICATIONS:
• Type: Single Conductor Primary Marine Wire
• Gauge: 12 AWG (American Wire Gauge)
• Length: 100 Feet (Spool)
• Color: Red (ABYC E-11 = Positive 12V Ungrounded Conductor)
• Conductor: Tinned-Copper Class K Stranding
• Stranding Type: Type 3 Marine Extra-Flexible
• Insulation: Flame Retardant Polyvinyl Chloride (PVC)
• Voltage Rating: 50V DC, 600V AC
• Temperature Rating: 105°C (221°F)
• Current Capacity: ~25 Amps Continuous (varies by installation)
• Resistance: Moisture, Abrasion, Acid, Diesel Fuel, Oil
• Standards: UL1426 Boat Cable / ABYC E-11 / USCG Approved
• Origin: Made in USA
• Condition: New

APPLICATIONS:
• All Marine Vessels — Powerboats, Sailboats, Pontoons, PWC, Bass Boats
• Positive 12V Power Feeds (Battery, Switch, Helm, Electronics, Lighting)
• Replacement Wiring for Outboard, Sterndrive, and Inboard Engine Harnesses

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $123.55
Sale: $70.60
Save: 43%
Save: $52.95
Qty:
Free Shipping!

Description

UNIVERSAL MARINE WIRE — 12 AWG RED TINNED COPPER PRIMARY WIRE 100 FT SPOOL:

ABYC E-11 STANDARD — RED COLOR USE (POSITIVE 12V):
Per ABYC E-11 marine electrical standards, RED color wire is designated for POSITIVE 12V ungrounded conductors. This 12 AWG red marine wire is intended for positive power feeds up to approximately 25 amps continuous service.

COMMON 12 AWG MARINE INSTALLATION APPLICATIONS:
• Battery Positive Terminal to Main Switch / Battery Switch
• Main Switch to Distribution Panel / Fuse Block
• Fuse Block to Helm Electronics (GPS, Chartplotters, Fishfinders, VHF Radios)
• Cabin Lighting Circuits (positive feed)
• Bilge Pump Power Feeds
• Livewell and Aerator Pump Wiring
• Navigation Light Circuits
• Stereo and Entertainment System Power
• Accessory Outlet Wiring (12V cigarette lighter sockets, USB ports)
• Trim Tab Motor Power Wiring
• Spotlight and Deck Light Installations
• Marine Refrigerator and Freezer Power Feeds

COMPATIBLE VESSEL TYPES:
• All Powerboats — Center Console, Cuddy Cabin, Express Cruiser, Walk-Around
• All Sailboats — Day Sailers, Cruisers, Racing Yachts
• Pontoon Boats and Houseboats
• Bass Boats and Bay Boats
• Personal Watercraft (PWC) Wiring Harness Repairs
• Outboard Motor Wiring Harness Repairs
• Sterndrive and Inboard Engine Compartment Wiring
• RV and Trailer Marine-Grade Wiring (UL1426 also recognized for many RV apps)

STANDARDS COMPLIANCE:
• UL Listed UL1426 Boat Cable Standard
• ABYC E-11 Compliant (American Boat & Yacht Council)
• United States Coast Guard (USCG) Specifications
• Made in USA

FITMENT NOTE:
Universal marine primary wire — fits any marine application requiring 12 AWG red positive power feed wiring. Not vehicle-specific. Per ABYC E-11 standards, this red wire should be used for positive 12V ungrounded conductors only. For other circuit colors, refer to the matching gauge in black (negative ground), yellow (alternative DC negative), green (bonding), and other ABYC color codes.
