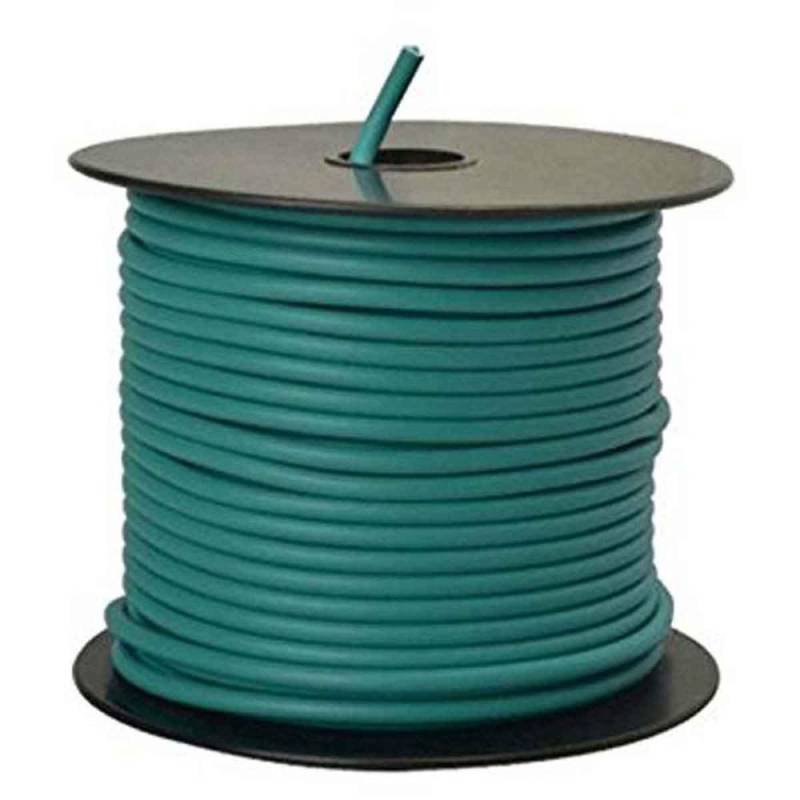

New 8 Awg Green Marine Bonding Cable 100Ft Tinned Copper Class K Stranded Compatible With Marine

UNIVERSAL MARINE WIRE — 8 AWG GREEN TINNED COPPER PRIMARY WIRE 100 FT SPOOL:

ABYC E-11 STANDARD — GREEN COLOR USE (BONDING / SAFETY GROUND):
Per ABYC E-11 marine electrical standards, GREEN color wire is designated for BONDING and SAFETY GROUND conductors. At 8 AWG (heavy gauge), this green marine cable is intended for HEAVY/MAIN bonding system runs — large engine bonding, sterndrive main bonding, lightning protection main ground, large inverter safety grounds, AC distribution panel safety grounds, and heavy fault-current bonding applications.

GAUGE HIERARCHY FOR GREEN BONDING WIRE — WHEN TO USE 8 AWG:
• 14 AWG Green = Branch bonding (electronics chassis, small through-hulls)
• 12 AWG Green = Main bonding (smaller engines, fuel tanks, standard inverters)
• 8 AWG Green = HEAVY main bonding (large engines, lightning, large inverters)
• 4 AWG / 2 AWG Green = Heavy-duty lightning, 100A AC safety grounds

COMMON 8 AWG MARINE HEAVY BONDING / SAFETY GROUND APPLICATIONS:
• Main Bonding Bus Runs (High-Fault-Current Capacity)
• Large Engine Block Bonding (V8 Marine, Big-Block Inboards)
• Large Diesel Engine Bonding (Cummins, Yanmar, Volvo Penta Larger Models)
• Sterndrive Main Bonding (Transom Plate, Tilt/Trim Mount Bonding)
• Large Fuel Tank Bonding (50+ Gallon Tanks, Multi-Tank Systems)
• Generator Safety Ground (Medium-Size Marine Generators)
• Lightning Protection Main Ground Wire (Mast to Keel/Ground Plate)
• Large Inverter Safety Ground (1000-2000W Marine Inverters)
• AC Shore Power Green Safety Ground Conductor
• 30A and 50A AC Marine Systems Safety Ground
• Heavy Battery Bank Bonding Interconnects
• AC Distribution Panel Safety Ground Run
• Marine Air Conditioning Safety Ground (Larger Units)
• Watermaker Safety Ground Conductor
• Large Galvanic Isolator Bonding Connection
• Anti-Galvanic Bonding for High-Value Underwater Equipment
• Hydraulic System Bonding (Bow Thruster, Windlass, Steering)
• Large Through-Hull Fitting Main Bonding (Big Bronze Fittings)
• Equipment Safety Ground for High-Current Marine Loads

NOT RECOMMENDED FOR (USE LARGER GAUGE):
• 100A+ AC Safety Grounds — Use 4 AWG or 2 AWG Green
• Very Large Inverter Grounds (3000W+) — Use 4 AWG or 2 AWG
• Direct Lightning Protection from Mast (Some Codes Require Larger Gauge)
• Cathodic Protection Main Ground for Large Vessels — May Require Larger Gauge

COMPATIBLE VESSEL TYPES:
• All Powerboats — Center Console, Cuddy Cabin, Express Cruiser, Walk-Around
• All Sailboats — Day Sailers, Cruisers, Racing Yachts, Liveaboards
• Pontoon Boats and Houseboats with AC Systems
• Bass Boats and Bay Boats with Heavy Equipment
• Sterndrive and Inboard Engine Main Bonding Systems
• Sailboats Requiring Lightning Protection Wiring
• Vessels with AC Shore Power and Marine Inverters
• RV and Trailer High-Current AC Safety Ground Installations

STANDARDS COMPLIANCE:
• UL Listed UL1426 Boat Cable Standard
• ABYC E-11 Compliant (American Boat & Yacht Council)
• United States Coast Guard (USCG) Specifications
• Made in USA

FITMENT NOTE:
Universal heavy-gauge marine bonding cable — fits any marine application requiring 8 AWG green main bonding or safety ground conductor. Per ABYC E-11, green wire is for bonding/ground only — NOT for current-carrying conductors (positive/negative). For lighter branch bonding use 12 AWG or 14 AWG green. For very heavy lightning protection or 100A+ AC grounds, step up to 4 AWG or 2 AWG green. Common DC pairing reference: 8 AWG red positive (COB-A2008T-01) for high-current power feeds.
