OEM PART NUMBERS:
• Yamaha: 62T-85560-00-00 / 62T8556000
• Yamaha: 6R7-85560-10-00 / 6R78556010 (supersedes 62T-85560-00-00)
• Yamaha: 6R8-85560-10-00 / 6R88556010 (latest supersession)
• Yamaha: 6R8-85560-11-00 / 6R88556011
SPECIFICATIONS:
• Type: Stator Magneto Assembly (Generator Stator)
• Outer Diameter: 127mm (5.0 in)
• Inner Diameter: 36mm (1.42 in)
• Engine Compatibility: 701cc 2-Stroke Twin Cylinder
• Condition: New
APPLICATION:
• Yamaha SuperJet 700cc (1996-2020)
• Yamaha XL 700cc (1999-2004)
• Yamaha Wave Raider 700cc (1994-1997)
• Yamaha Wave Venture 700cc (1995-1996, 1998)
• Yamaha Wave Blaster 700cc (1996)
• Yamaha Wave Runner III 650/700cc (1996-1997)

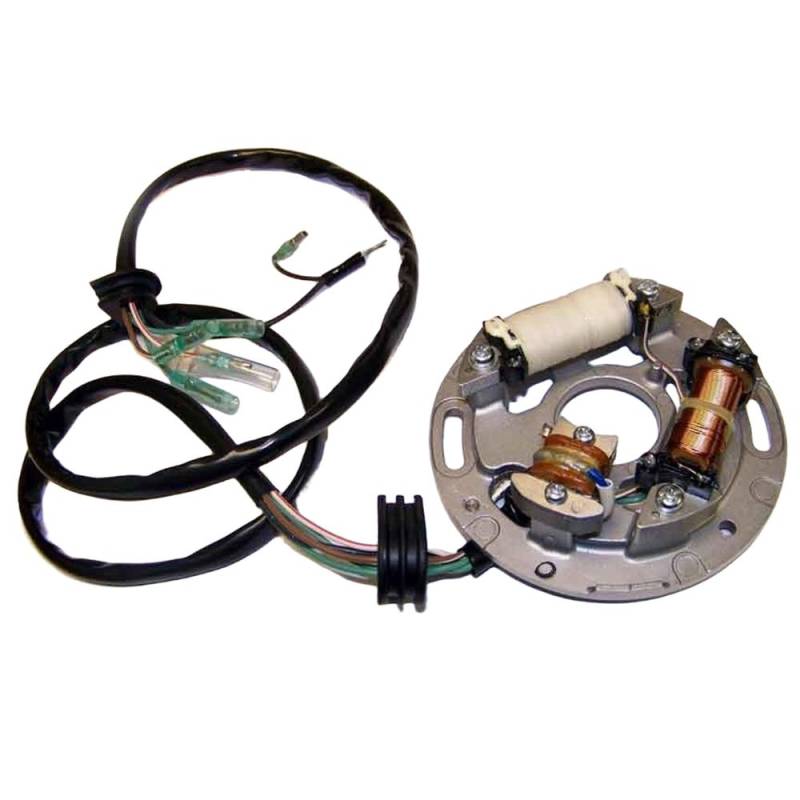

Magneto Stator — Yamaha SuperJet Wave Venture 700 PWC
New magneto stator for Yamaha personal watercraft with the 701cc two-stroke engine. Features precision copper windings that meet OEM specifications for consistent charging voltage and reliable ignition system performance. The 127mm OD by 36mm ID stator plate mounts directly to the engine case for straightforward installation. Fits 1996-2020 SuperJet 700, 1994-1997 Wave Raider 700, 1995 Wave Raider Deluxe, 1999-2004 XL 700, 1996 Wave Blaster 700, 1995-1996 and 1998 Wave Venture 700, and 1996-1997 Wave Runner III 650/700. Replaces Yamaha 62T-85560-00-00 and 6R7-85560-10-00.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
